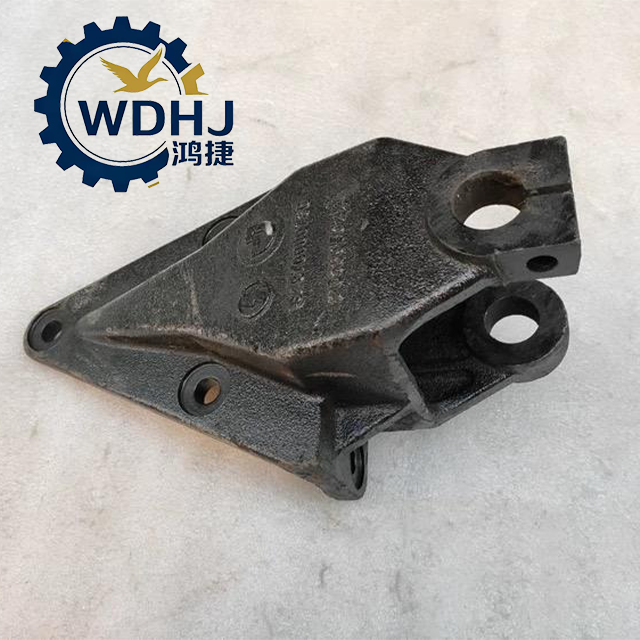

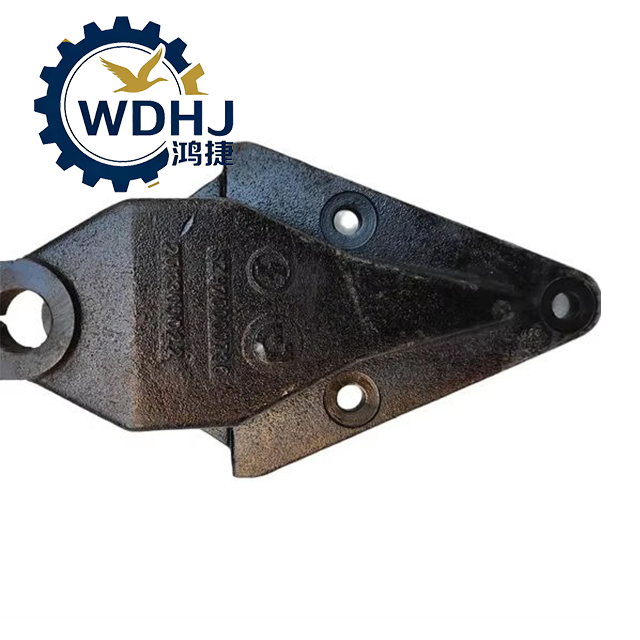

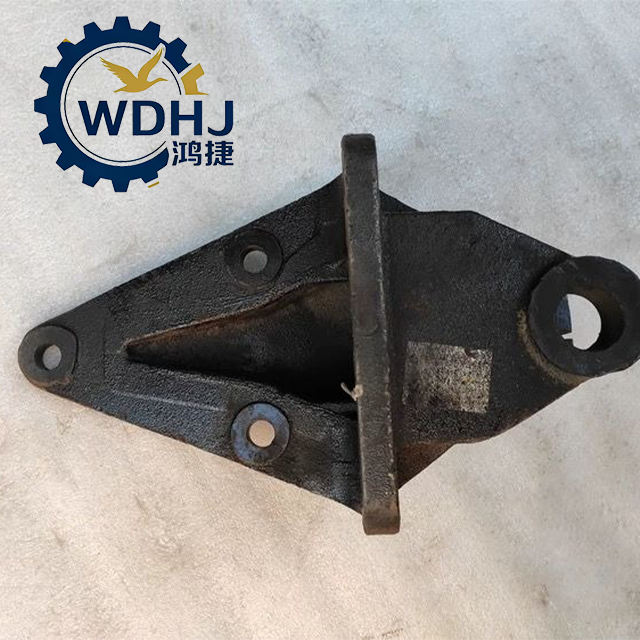

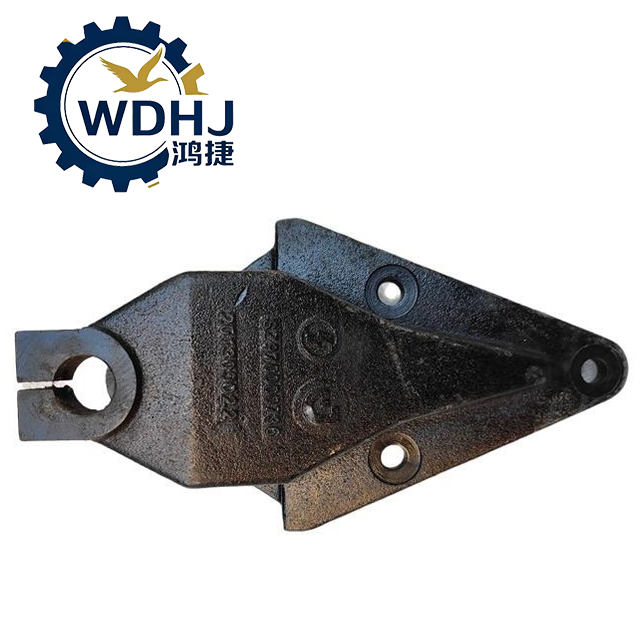

SZ970000736 SHACMAN F3000 Front Spring Left Front Bracket

Product Overview
The SZ970000736 Front Spring Front Bracket is a critical cast structural component in the chassis suspension system of SHACMAN (Shaanxi Automobile) heavy-duty trucks. As a primary mounting anchor for the front leaf spring assembly, this bracket ensures stable load transfer from the axle to the frame while maintaining alignment and enhancing ride durability under extreme operating conditions.

Manufactured from high-strength cast steel using precision casting and CNC machining processes, the SZ970000736 delivers exceptional tensile strength, impact resistance, and fatigue life. It plays a key role in vehicle safety by providing rigid support for the front suspension, minimizing lateral movement of the leaf spring during cornering, and absorbing road-induced vibrations.

Quantity:
Availability:





Inquire Add to Basket

Model:
SZ970000736
Brand:
Shacman

Product Description

Attribute	Description
Part Name	Front Leaf Spring Front Bracket
OEM Part Number	SZ970000736
Brand	SHACMAN (Shaanxi Automobile Co., Ltd.)
Application	Heavy-Duty Truck Chassis Suspension System
Position	Front Left (in most configurations); paired with rear/right brackets
Material	High-Strength Carbon Steel / Cast Steel (e.g., equivalent to QT400 or 42CrMo)
Weight	Approx. 5.0 kg
Processing Method	Precision Casting + CNC Machining
Surface Treatment	Electrophoretic Coating (E-coat) or Anti-Rust Spray
Design Type	Reinforced Structural Bracket with Mounting Holes
Function	Anchors front end of leaf spring to frame rail; supports vertical and lateral loads

Parameter	Value / Specification
Part Number	SZ970000736
Material Grade	High-Strength Cast Steel (Tensile Strength ≥ 450 MPa)
Impact Toughness	High (suitable for low-temperature and dynamic loading)
Manufacturing Process	Precision Casting + CNC Drilling & Milling
Hole Position Accuracy	±0.2 mm (ensures perfect fit with frame rails and bushings)
Load-Bearing Capacity	Designed for full front axle static/dynamic load transmission
Corrosion Resistance	E-coated or painted surface resists moisture and salt fog
Quality Standards	Complies with ISO9001, CE, and SHACMAN OEM specifications
Installation Interface	Matches standard SHACMAN frame rail profiles
Operating Environment	Suitable for -40°C to +80°C; resistant to dust, vibration, oil
