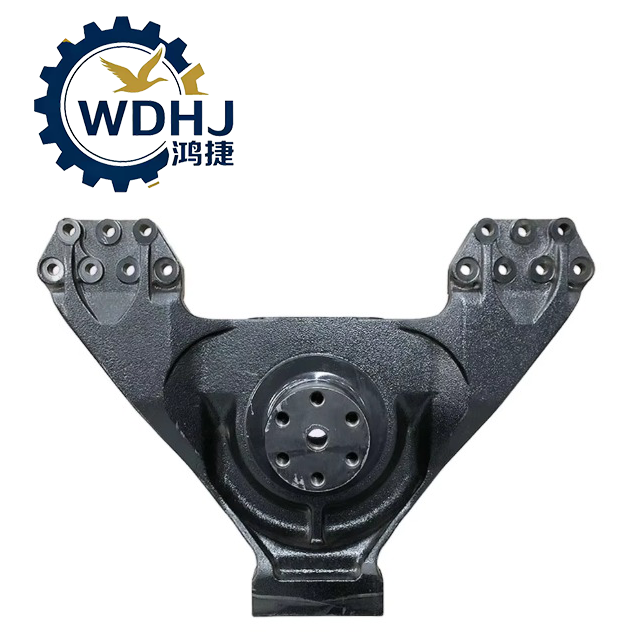

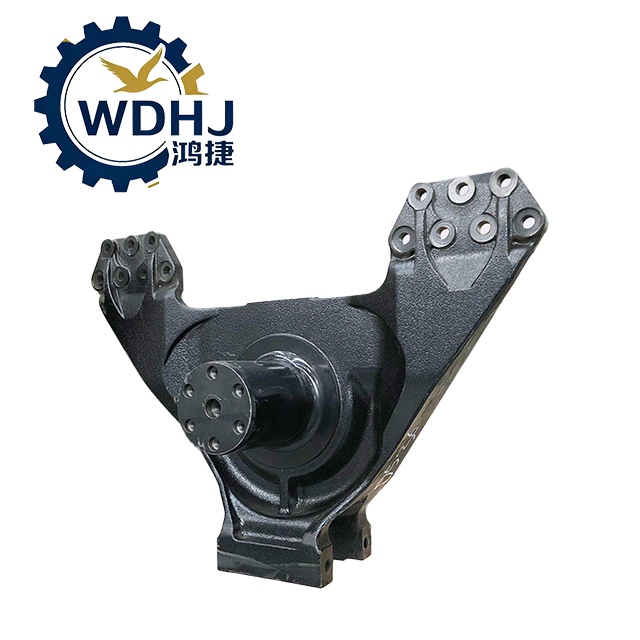

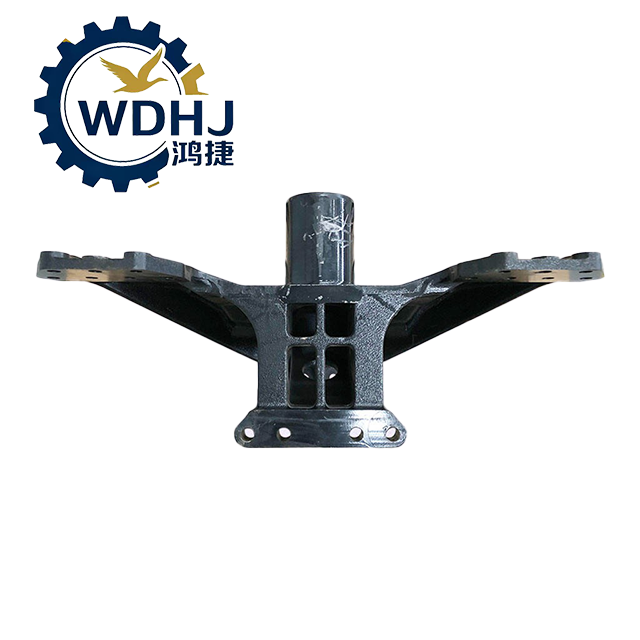

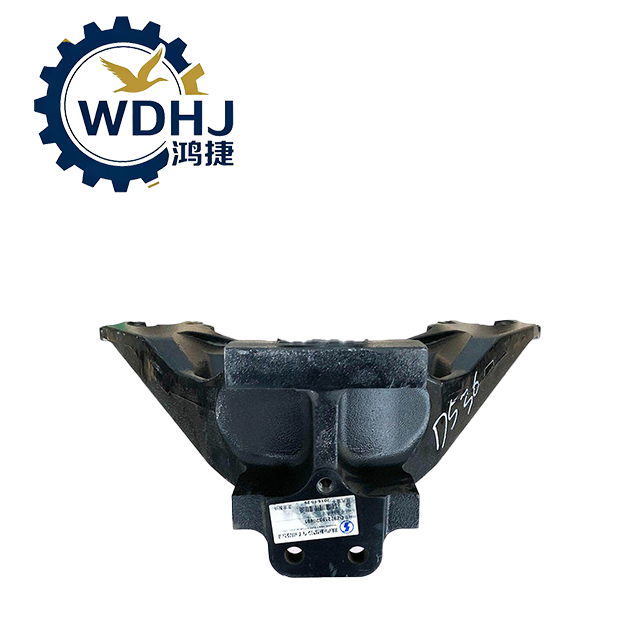

For Shacman Heavy-Duty Truck Parts Balance Shaft Bracket Support DZ97259520401

The DZ97259520401 Balance Shaft Bracket is a core cast structural component in the rear tandem suspension system of SHACMAN Delong X3000, X5000, M3000S, and F3000 series heavy-duty commercial vehicles. As the primary mounting interface between the chassis frame and the balance shaft assembly, this bracket bears the majority of the vehicle’s rear axle load and plays a pivotal role in dynamic weight distribution across dual drive axles.

Manufactured from high-strength ductile cast iron (QT-series), this heavy-duty bracket delivers exceptional yield strength, fatigue resistance, and torsional rigidity. Its robust design ensures reliable performance under extreme operating conditions such as mining, construction, bulk hauling, and long-haul freight transport.

Integrated with HanDe (Hande) 13T/16T double-reduction axles or MAN technology-based bridges, the DZ97259520401 enables optimal load balancing on uneven terrain, improving traction, reducing tire wear, and enhancing overall vehicle stability.

Quantity:
Availability:





Inquire Add to Basket

Model:
DZ97259520401
Brand:
Shacman

Product Description

Attribute	Description
Part Name	Balance Shaft Bracket (Frame-Mounted)
OEM Part Number	DZ97259520401
Brand	SHACMAN (Shaanxi Automobile Group)
Application	Rear Tandem Suspension System – Frame-to-Balance Shaft Mounting
Function	Supports and aligns the balance shaft; transfers rear axle loads to chassis frame
Material Type	High-Strength Ductile Cast Iron (QT450-600 or equivalent)
Weight	Approx. 52.0 kg
Surface Treatment	Black Anti-Corrosion Electrophoretic Coating (E-coat)
Design Type	Reinforced Casting with Ribbed Structure for High Rigidity
Mounting Position	Center-mounted on chassis crossmember, connecting to balance shaft housing

Parameter	Value / Specification
OEM Number	DZ97259520401
Overall Dimensions (L×W×H)	Approx. 750 mm × 320 mm × 410 mm
Center Bore Diameter	Matches balance shaft housing (typically φ80–φ100 mm)
Bolt Hole Pattern	Multi-hole configuration for M18 and M20 high-strength bolts
Fastener Grade	10.9 or 12.9 Fine-thread Flange Bolts
Torque Requirement	500 – 600 N·m (exact value per model; follow official manual)
Yield Strength	≥ 350 MPa (QT-grade material standard)
Tensile Strength	≥ 450 MPa
Fatigue Resistance	Optimized for long-term cyclic loading in rough terrain
Torsional Stability	Enhanced via thickened ribs and optimized casting geometry
Operating Load Capacity	Designed for total vehicle weights up to 100+ tons (GVM)
Compatibility	Works with HanDe 13T/16T, MAN-tech rear axles
