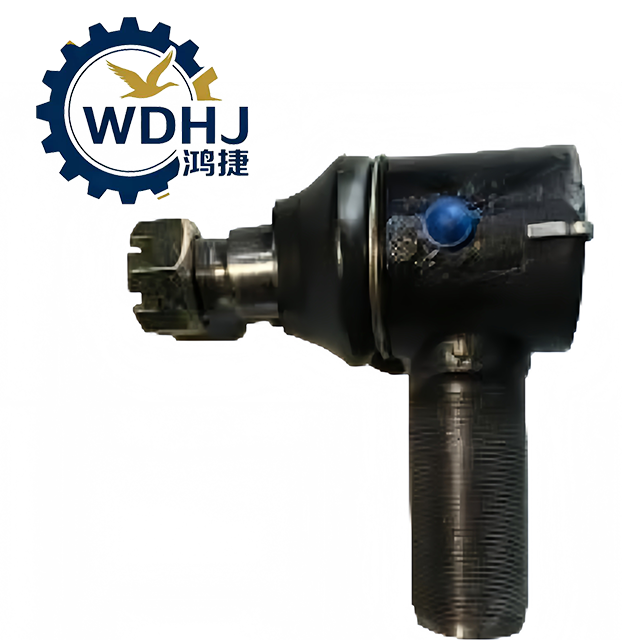

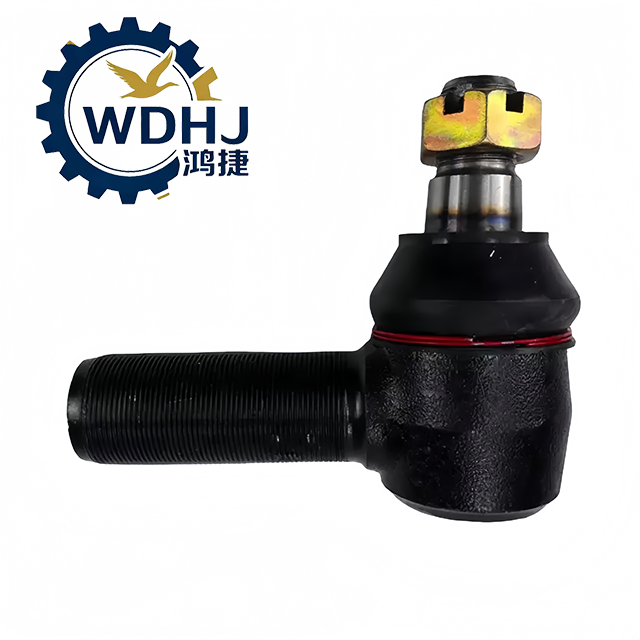

3003060-1H
FAW
| Attribute | Description |
|---|---|
| Part Number | 3003060-1H |
| Alternative Names | Tie Rod End, Drag Link Ball Joint, Steering Ball Stud, Cross Rod End |
| Position | Front Axle – Right Side (RHS) |
| Function | Transmits steering motion; allows multi-directional movement between rigid components |
| Application Type | Heavy-Duty Commercial Vehicles – Trucks, Tractors, Dumpers |
| Design Standard | OEM specification for FAW Jiefang platforms |
| Material (Housing) | Forged 40Cr Alloy Steel (high tensile strength) |
| Material (Ball Stud) | 20CrMnTi Alloy Steel (carburized and hardened) |
| Surface Treatment | High-frequency induction hardening on contact surfaces |
| Sealing | Chloroprene Rubber (CR) Dust Boot + Stainless Steel Retaining Spring |
| Lubrication System | Integrated grease nipple (zerk fitting) for periodic maintenance |
Name1
Name2
| Parameter | Specification |
|---|---|
| Hand Orientation | Right-Hand (RH) – Typically indicated by even-numbered suffix |
| Thread Size | M24×1.5 or M30×1.5 (depends on axle load rating — verify model) |
| Taper Ratio | 1:8 or 1:10 (standard steering knuckle taper) |
| Weight (Approx.) | 2.3 kg – 2.8 kg |
| Dynamic Load Rating | ≥ 80 kN (tested under radial and angular loads) |
| Operating Angle | ±15° to ±20° (multi-axis articulation) |
| Hardness (Ball Stud) | HRC 58–62 after heat treatment |
| Boot Material | Oil- and temperature-resistant chloroprene rubber (-40°C to +120°C) |
| Quality Standard | ISO 9001 certified; complies with GB/T 28268 |
