High-quality, Brand New Truck Parts Truck Spare Parts Dongfeng Axle Parts Housing of Rear Axle Assy 24D-01020-B2

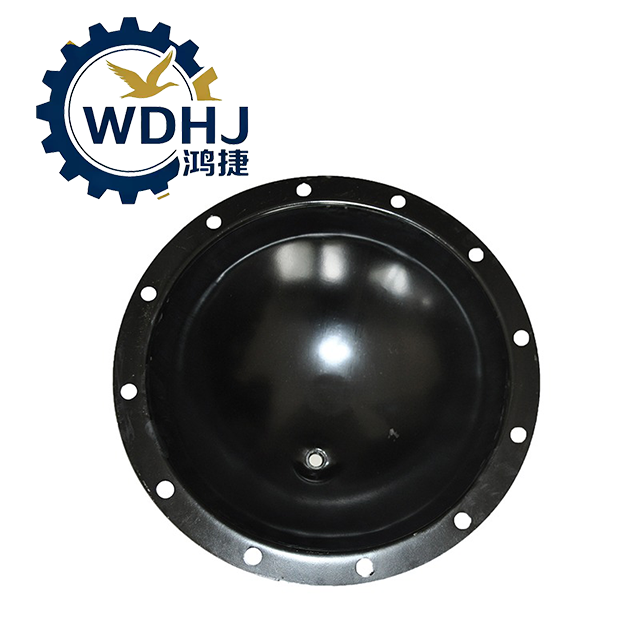

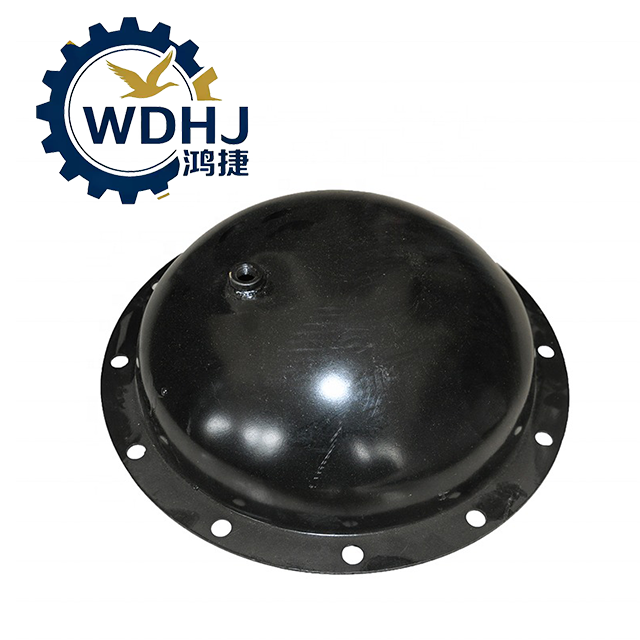

The 24D-01020-B2 Differential Housing Cover Assembly, commonly known as the rear axle cover, is a critical structural and sealing component designed for use in Dongfeng Commercial Vehicles’ drive axle systems. This part mounts on the rear of the axle housing, enclosing the differential assembly to maintain lubricant containment, protect internal gears, and assist in heat dissipation during operation.

Manufactured primarily by Dongfeng Dana (Dongfeng-Dana joint venture), this cover is engineered for durability and reliability under heavy-duty conditions. Its bowl-shaped design increases internal oil capacity and promotes effective lubrication circulation around the ring and pinion gears. The cover also provides access points for oil inspection, filling, and draining—making it essential for routine maintenance.

Quantity:
Availability:





Inquire Add to Basket

Model:
24D-01020-B2
Brand:
Dongfeng

Product Description

Attribute	Specification
Part Number	24D-01020-B2
Product Name	Differential Housing Cover / Rear Axle Back Cover
Function	Seals differential housing, retains gear oil, protects internal components
Installation Position	Mounted at the rear of the drive axle housing (differential section)
Vehicle Type	Medium & Heavy-Duty Trucks, Special-Purpose Vehicles
Primary Material	High-Strength Stamped Steel (4mm–6mm thickness) or Ductile Cast Iron (model-dependent)
Design Feature	Deep bowl shape – improves oil retention and cooling
Access Features	Equipped with oil fill/inspection plug hole; compatible with magnetic drain plug
Sealing Method	Uses rubber gasket + liquid sealant (e.g., RTV silicone)
Mounting Bolts	Multiple M10/M12 bolts arranged radially around perimeter
OEM Supplier	Dongfeng Dana (Dongfeng-Dana Axle Co., Ltd.)
Compatibility Standard	Matches Dongfeng 153, 435, 440, 460 series axles
Certifications	ISO 9001, IATF 16949, GB/T 13384 (Packaging for Automotive Parts)

Parameter	Specification
Material Thickness	4 mm – 6 mm (steel version)
Outer Diameter (Approx.)	420 mm – 460 mm
Depth (Bowl Depth)	~80 mm – 95 mm
Number of Mounting Holes	10 – 12 holes (M10 or M12 thread)
Torque Specification	80–110 N·m (tighten diagonally in stages)
Oil Capacity Contribution	Adds ~3–5 liters to total axle oil volume
Surface Treatment	Painted finish or anti-rust coating
Operating Temperature Range	-40°C to +150°C (-40°F to +302°F)
Impact Resistance	Resistant to road debris and stone strikes
Weight (Approx.)	8.5 kg – 12.0 kg (varies by material type)
Compatible Gear Oil Types	GL-5 85W-90, 85W-140
Fatigue Life	≥ 500,000 km under standard load conditions
