2202D-080
Dongfeng
| Attribute | Description |
|---|---|
| Part Number (OE) | 2202D-080 |

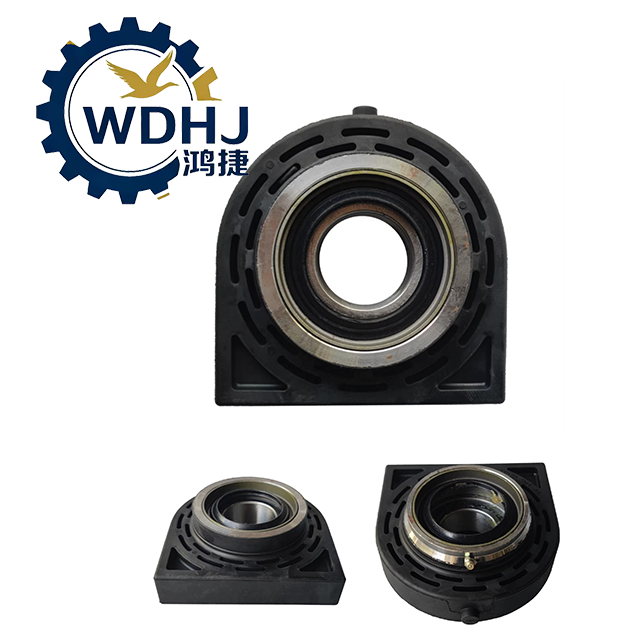

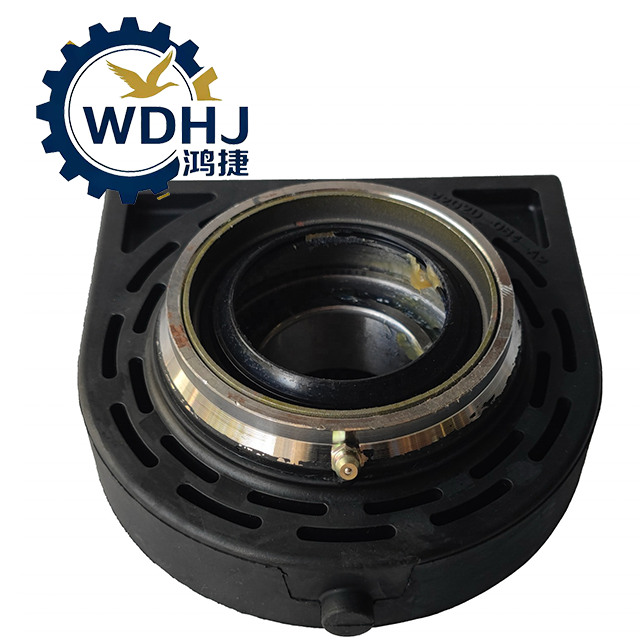

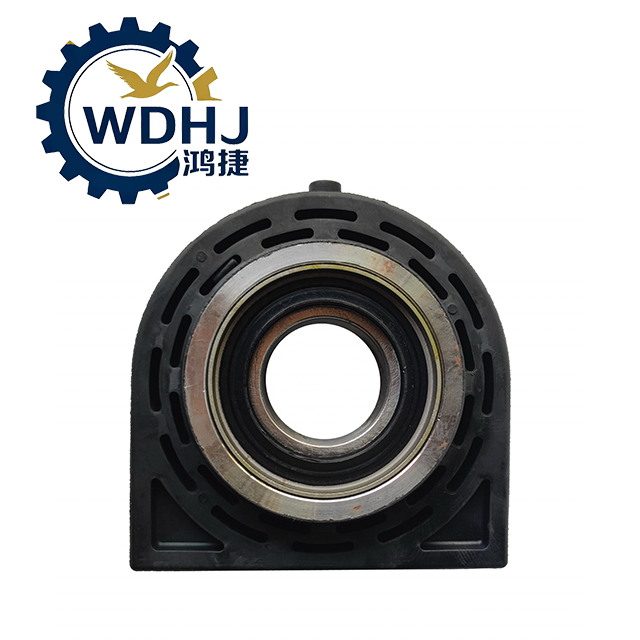

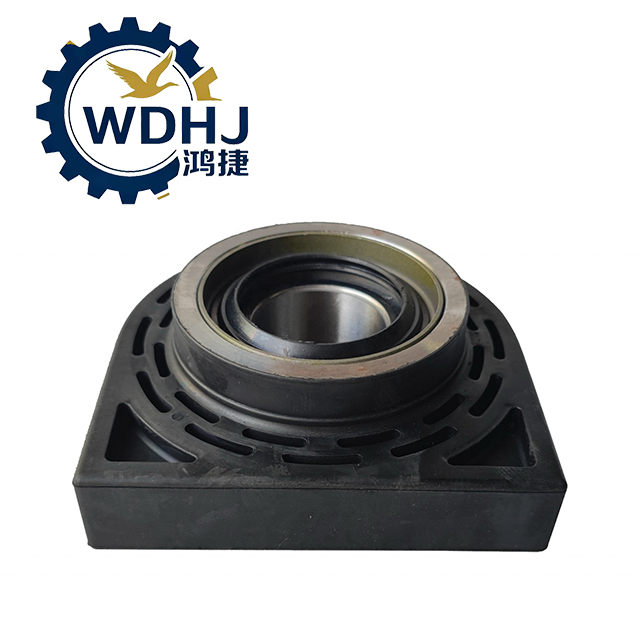

| Product Name | Propeller Shaft Center Bearing Assembly / Intermediate Support Bracket |
| Common Names | Driveshaft Center Mount, Transmission Tailshaft Support |
| Application Type | Medium & Heavy-Duty Trucks (Two-Piece Propeller Shaft Systems) |
| Vehicle Brand | Dongfeng Commercial Vehicle (DFCV), Foton, Sinotruk (some models) |
| Compatible Models | Dongfeng Kinland (KL), Kingrun (KR), KC Hercules, 4x2/6x4 chassis with long wheelbase |
| Assembly Type | Integrated bearing + rubber-damped steel bracket |
| Bearing Type | Double-row deep groove ball bearing or single-row sealed radial bearing |
| Mounting Style | Bolt-on flange mount to frame crossmember |
| Function | Supports mid-point of two-piece driveshaft; dampens torsional and lateral vibrations |
| Design Standard | Meets DFCV OE specifications; compliant with QC/T 523 and ISO 28580 standards |
| Parameter | Specification |
|---|---|
| Bearing Model (Internal) | Typically 6205-2RS or UC205 (sealed, grease-pre-filled) |
| Dynamic Load Rating | ≥14 kN |
| Static Load Capacity | ≥9 kN |
| Maximum Speed | Up to 5,500 rpm (continuous), higher for short bursts |
| Operating Temperature Range | -40°C to +130°C |
| Rubber Isolation Element | Nitrile rubber (NBR) bushing with metal reinforcement |
| Deflection Damping | Absorbs up to 5–8 mm of vertical movement; isolates chassis from driveline vibration |
| Shaft Compatibility | Designed for Φ80–Φ90 mm diameter propeller shafts |
| Fastener Type | M10–M12 hex bolts (typically 4 pcs per mount) |
| Preload & Alignment | Must maintain coaxial alignment between front and rear shaft sections |
