1001150-H12B0
Dongfeng
| Attribute | Specification |
|---|---|
| Part Number | 1001150-H12B0 |

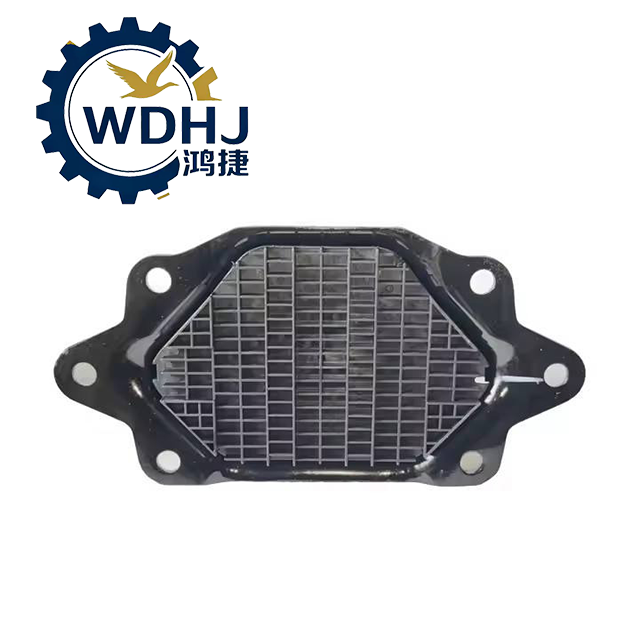

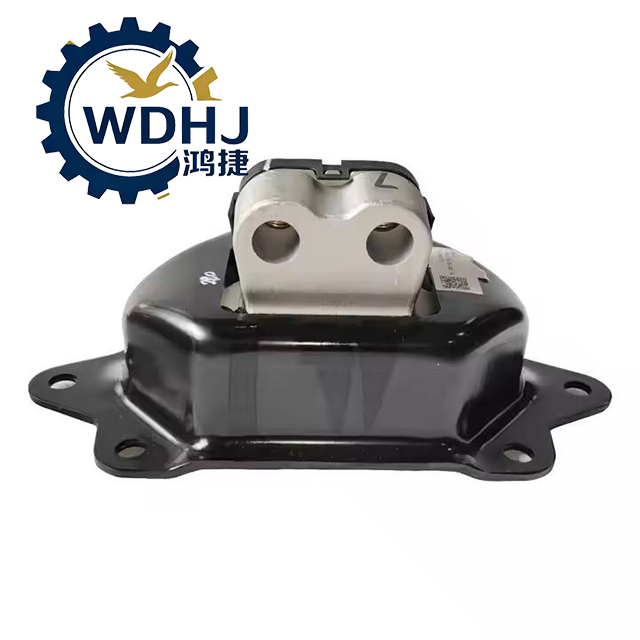

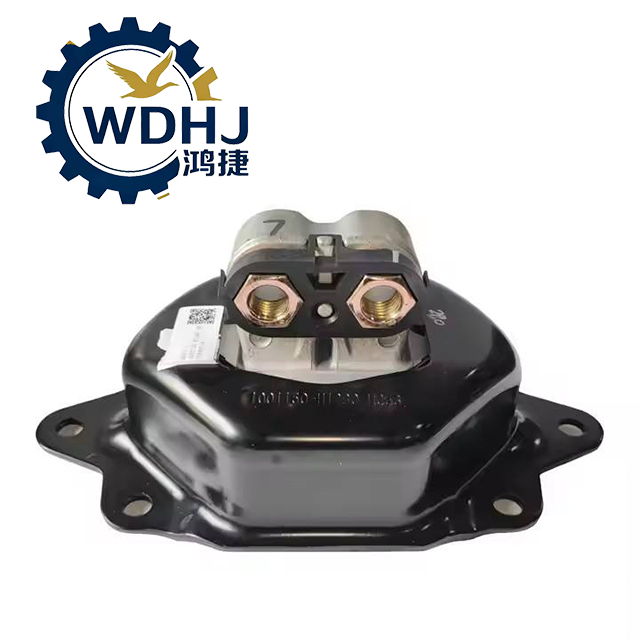

| Product Name | Engine Rear Mount Insulator / Rear Engine Mount Pad |
| Function | - Supports engine rear weight - Absorbs vibration & shock - Controls engine displacement |
| Installation Position | Mounted at the rear of the engine block (left/right), connecting to chassis crossmember |
| Vehicle Type | Medium & Heavy-Duty Trucks, Tractor Units, Freight Carriers |
| Compatible Platforms | Dongfeng Tianlong (KL), Dongfeng Tianjin (KR) Series |
| Engine Compatibility | - Dongfeng Cummins: ISL, ISB, ISD Series - Dongfeng Renault: dCi Series (lower HP variants) |
| Core Material – Metal Frame | Forged/Cast Steel (high tensile strength) |
| Elastomer Material | High-Elasticity Natural Rubber (NR), oil- and heat-resistant formulation |
| Bonding Process | High-Temperature Vulcanization (steel-rubber composite) |
| Design Type | Compression-shear dual-function mount |
| OEM Manufacturer | Dongfeng Original Equipment Supplier (Rubber Components Division) |
| Compliance Standards | GB/T 14961, ISO 4661, QC/T 630 (Automotive Rubber Mounts) |
| Parameter | Specification |
|---|---|
| Static Load Capacity | Up to 2,200 kg per unit |
| Dynamic Load Resistance | Withstands cyclic torque up to 2,000 N·m |
| Radial Stiffness | ~170–210 N/mm |
| Axial Stiffness | ~140–180 N/mm |
| Operating Temperature Range | -40°C to +130°C (-40°F to +266°F) |
| Oil Resistance | Enhanced for exposure to diesel mist and engine oil splash; not for immersion |
| Rubber Hardness (Shore A) | 58° ± 5° |
| Fatigue Life | ≥ 1 million cycles under standard test load |
| Weight (Each) | ~3.6 kg – 4.3 kg |
| Mounting Bolt Size | M14 × 1.5 or M16 × 1.5 (Grade 10.9 recommended) |
| Torque Specification | 180–220 N·m (use calibrated torque wrench only) |
| Service Life (Under Normal Use) | 100,000 – 150,000 km (annual inspection advised) |
