Supply SINOTRUK HOWO Heavy Duty Truck Parts Jiefang Dongfeng 153 Front Right Brake Floor 3501N-026

Supply SINOTRUK HOWO Heavy Duty Truck Parts Jiefang Dongfeng 153 Front Right Brake Floor 3501N-026

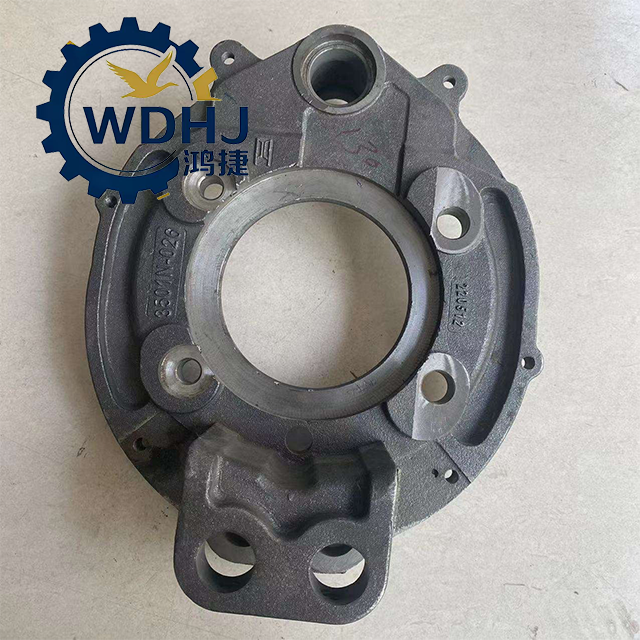

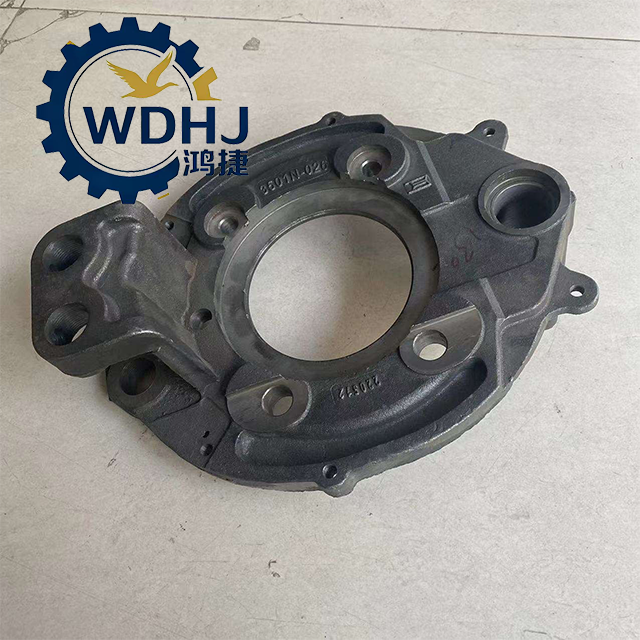

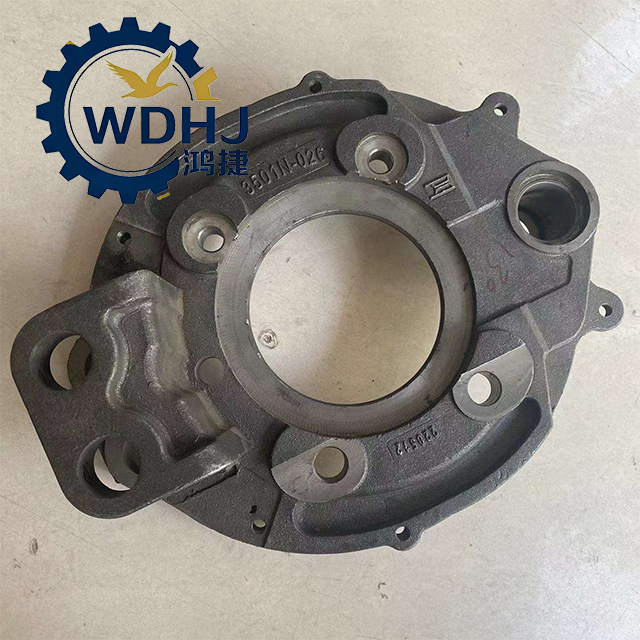

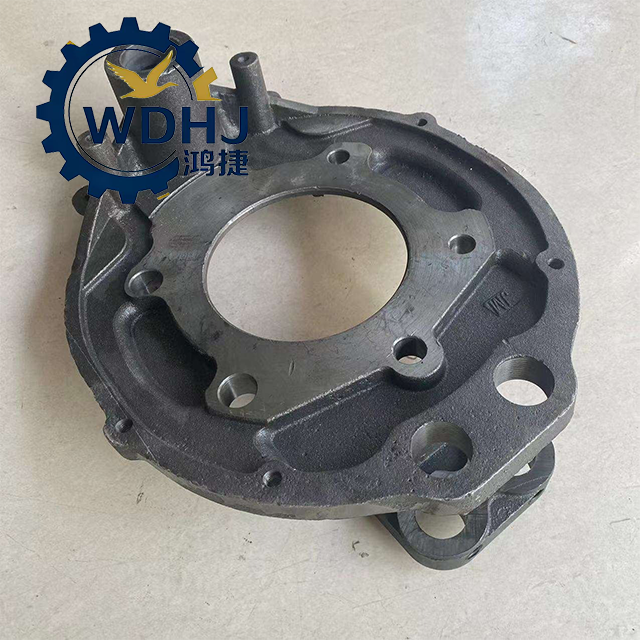

The 3501N-026 Front Brake Backing Plate is a core structural component of the drum brake system used in the front axle assemblies of medium- and heavy-duty commercial vehicles. This backing plate serves as the mounting foundation for critical braking elements, including brake shoes, wheel cylinders (brake cams or slack adjusters in S-cam systems), return springs, hold-down springs, and automatic adjusters.

Engineered to meet original equipment (OE) specifications, this part ensures precise alignment and stable operation of the entire brake mechanism under high thermal and mechanical loads. Commonly installed on trucks and buses manufactured by Dongfeng, Foton, and other Chinese commercial vehicle brands, the 3501N-026 is designed for durability, heat dissipation, and resistance to corrosion in demanding operating environments.

Quantity:
Availability:





Inquire Add to Basket

Model:
3501N-026
Brand:
Dongfeng

Product Description

Attribute	Specification
Part Number	3501N-026
Product Name	Front Brake Backing Plate / Brake Support Plate
Function	Structural base for drum brake components (shoes, camshaft, adjuster, etc.)
Installation Position	Mounted on the front axle hub carrier (left/right side)
Vehicle Type	Medium & Heavy-Duty Trucks, Buses, Freight Vehicles
Brake System Type	Drum Brake – Typically S-Cam Actuated (common in Chinese commercial platforms)
Material	High-Strength Cold-Rolled Steel (Q235 or equivalent)
Surface Treatment	Painted finish or anti-rust primer; some versions include galvanized coating
Mounting Holes	Pre-drilled holes for brake shoes, camshaft bracket, return springs, and sensors
Compatibility	Designed as direct OE replacement for Dongfeng, Foton, and compatible platforms
OEM Standard	Matches national GB/T 5729 and QC/T 215–2000 (Automotive Brake Components)
Certifications	ISO 9001, IATF 16949 compliant

Parameter	Specification
Overall Dimensions (Approx.)	380 × 220 × 60 mm (L × W × H)
Plate Thickness	6 mm – 8 mm
Weight (Each)	~7.5 kg – 9.0 kg
Number of Mounting Holes	8–12 holes (for shoes, springs, adjusters)
Camshaft Bracket Interface	Integrated or bolt-on design (fits Ø32–35 mm shaft)
Adjuster Compatibility	Supports automatic brake adjuster (ABA) installation
Heat Resistance	Withstands up to 300°C during emergency braking
Corrosion Resistance	≥ 48 hours salt spray test (per GB/T 10125)
Mechanical Strength	No deformation under 15 kN static load
Operating Temperature Range	-40°C to +300°C (-40°F to +572°F)
Drum Brake Size Compatibility	Fits 410 × 180 mm or similar standard drums
Fatigue Life	≥ 500,000 braking cycles
