C2874592 M
Dongfeng
| Attribute | Description |
|---|---|

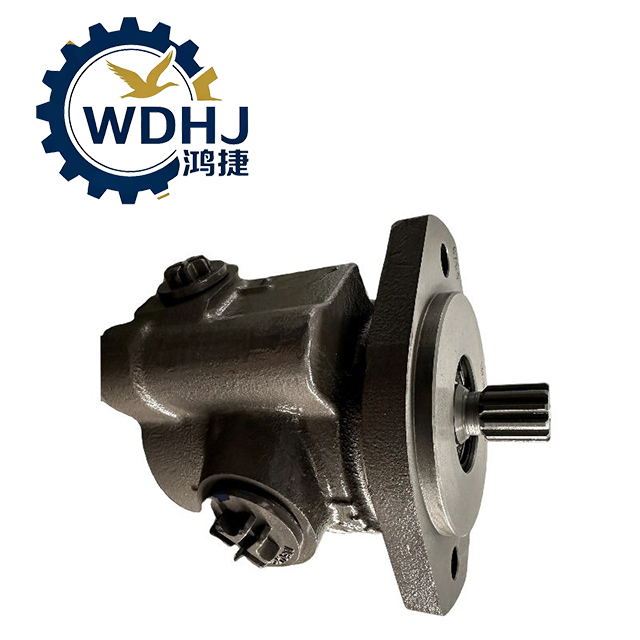

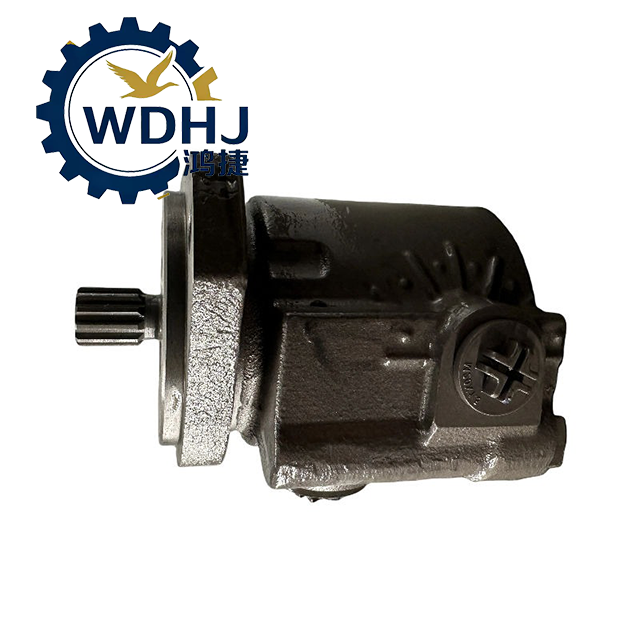

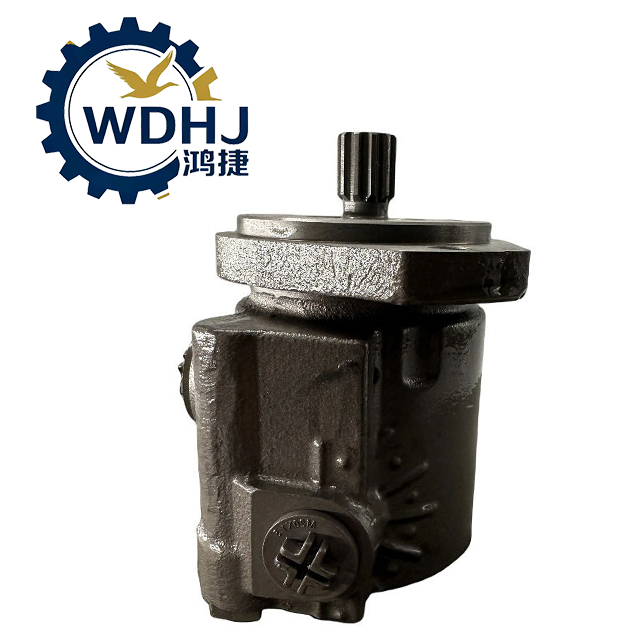

| Product Name | Power Steering Pump (Hydraulic Type) |
| Primary Function | Generates hydraulic pressure to assist steering operation via the steering gearbox or rack |
| Design Type | Variable displacement vane pump (auto-adjusts output based on demand) |
| Pump Body Material | High-strength cast iron for excellent wear resistance and structural integrity under high pressure |
| Sealing System | Dual-lip NBR (nitrile rubber) seals compatible with ATF-type fluids |
| Drive Mechanism | Belt-driven from engine crankshaft (typically V-belt or multi-ribbed serpentine belt) |
| Key Features | |
| - Integrated pressure relief valve for system protection | |
| - Low-noise operation through precision rotor balancing | |
| - Energy-efficient variable flow reduces parasitic loss | |
| - Stable performance across extreme temperatures (-30°C to +120°C) |
Name1
Name2
| Parameter | Specification |
|---|---|
| Part Number (OEM) | C2874592, C2874592 M |
| Alternative ID / Query No. | 907-FUD-843 |
| Rated Operating Pressure | 150–175 bar (2175–2540 psi), adjustable via internal relief valve |
| Displacement | High-flow design suitable for heavy-duty steering gears (exact cc/rev varies by calibration) |
| Fluid Compatibility | ATF Dexron III, Mercon, or equivalent automatic transmission fluid |
| Rotation Direction | Clockwise (viewed from pulley end) |
| Mounting Type | Bracket-mounted with tensioning adjustment for drive belt |
| Inlet/Outlet Ports | Standard SAE O-ring boss (ORB) fittings; requires proper sealing washers |
| Operating Temperature Range | -30°C to +120°C (-22°F to +248°F) |
| Noise Level | < 80 dB(A) at rated speed (designed with noise-dampening internals) |
