DZ96259690086
Shacman
| Parameter | Specification |
|---|---|

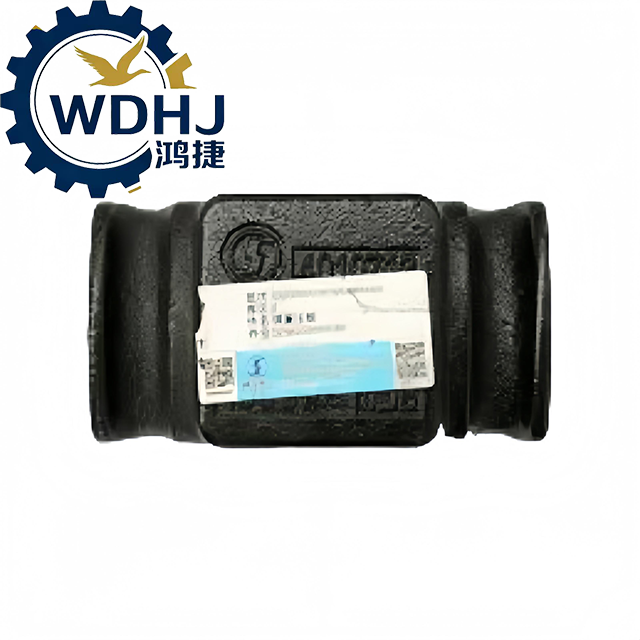

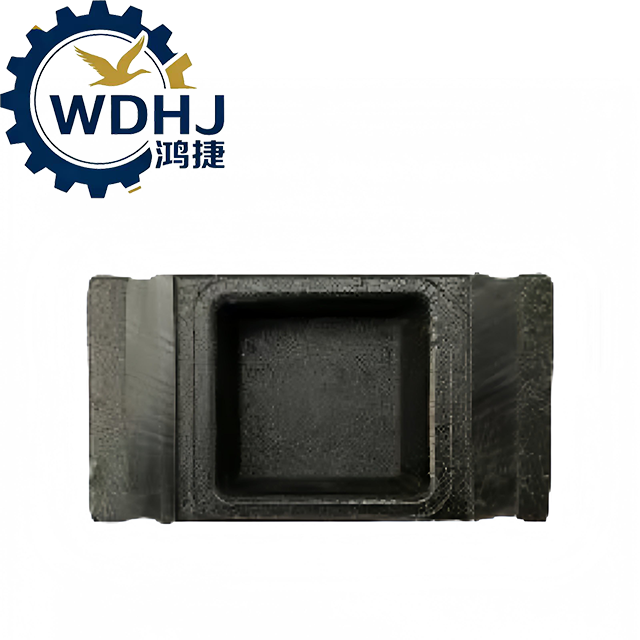

| Part Name | Spring Pressure Plate / Spring Plate / Steel Retaining Plate |
| OE Number | DZ96259690086 |
| Function | Distributes clamping force from U-bolts to secure leaf spring onto axle seat |
| Position | Installed above or below the rear/front axle beam — sandwiched between the leaf spring and U-bolts |
| Material | High-strength carbon steel or alloy steel |
| Surface Treatment | Black oxide coating or painted surface — corrosion resistant |
| Design Type | Flat or slightly contoured steel plate with two central holes for U-bolt shanks |
| Dimensions (Approx.) | ~16.5 × 90 × 40 mm (Note: "16.50.90.4" likely refers to thickness, width, height in cm — verify with supplier) |
| Weight | ~0.8 – 1.2 kg (1.8 – 2.6 lbs) per piece |
| Condition | Brand New (Original Packaging) |
| Quality Certification | OEM standard; compliant with ISO 9001 quality management systems |
| Warranty | Typically 6 to 12 months from date of purchase |
|
|
|
