| Quantity: | |
|---|---|

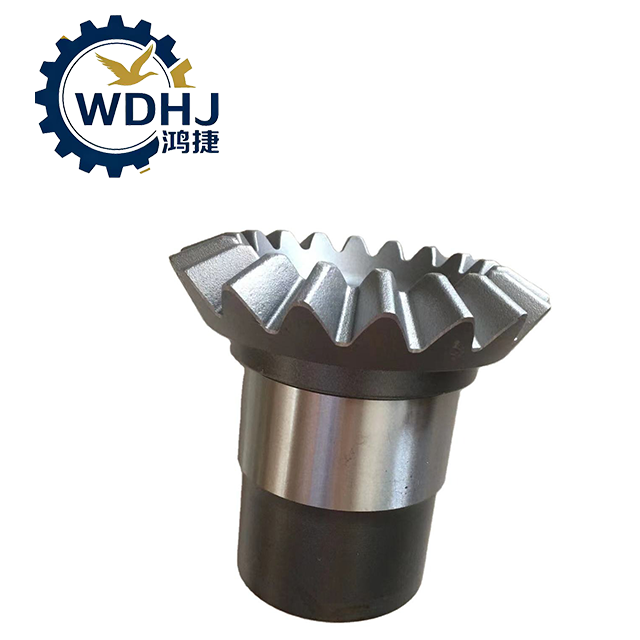

AZ9981320166
Sinotruk HOWO
| Attribute | Specification |
|---|---|
| Official Name | Axle Shaft Gear / Side Gear ("Mushroom Gear") |
| Common Names | Half-Shaft Sun Gear, Differential Side Gear, Mushroom Tooth |
| OEM Brand | SINOTRUK (China National Heavy Duty Truck Group) |
| Part Number | AZ9981320166 |
| Material | High-performance alloy steel 20CrMnTi (carburizing grade) |
| Manufacturing Process | Forged blank → CNC hobbing → Carburized & quenched → Precision grinding |
| Surface Hardness | HRC 58–62 (after heat treatment) |
| Core Toughness | Maintains ductility to resist shock fracture |
| Tooth Type | Spiral bevel gear with precise tooth profile |

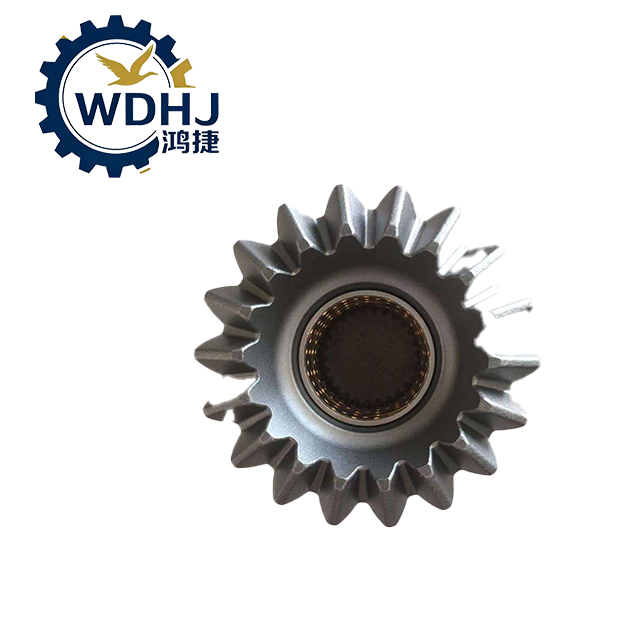

| Internal Feature | High-precision internal spline bore for half-shaft connection |
| Weight | Approx. 3.2 kg – 4.5 kg (varies by version and reinforcement level) |
| Module & Pitch | Matches SINOTRUK 16-ton class rear axle design standards |
| Function | Transmits torque between planetary pinion and half-shaft |
| Origin | Jinan, Shandong Province, China |
Name1
Name2
Confirm correct model: Use SINOTRUK EPC system to verify compatibility with your VIN/chassis.
Inspect new gear: Check for cracks, chipped teeth, distorted splines, or surface pitting.
Clean all components: Remove old grease, debris, and carbon buildup from housing and mating parts.
Prepare tools: Dial gauge, micrometer, torque wrench, gear press, magnetic particle inspection (if available).
Disassemble Differential Carrier:
Drain gear oil and remove cover.
Mark housing halves for orientation.
Remove Old Axle Gear (AZ9981320166):
Extract carefully without damaging bearing seats or ring gear.
Install New Gear:
Press into place gently using proper tooling.
Ensure full seating and alignment.
Reinstall Planetary Pinions:
Mount four pinion gears onto cross shaft.
Add new thrust washers/shims to control end-play.
Adjust Gear Backlash:
Measure contact pattern and backlash.
Target clearance: 0.1 mm – 0.2 mm (per service manual).
Reassemble Housing:
Apply liquid gasket or replace paper seal.
Torque bolts evenly in crisscross pattern.
Refill with Gear Oil:
Use GL-5 85W/90 or higher-grade synthetic gear oil.
