WG9925682102
Sinotruk HOWO
| Attribute | Description |
|---|---|

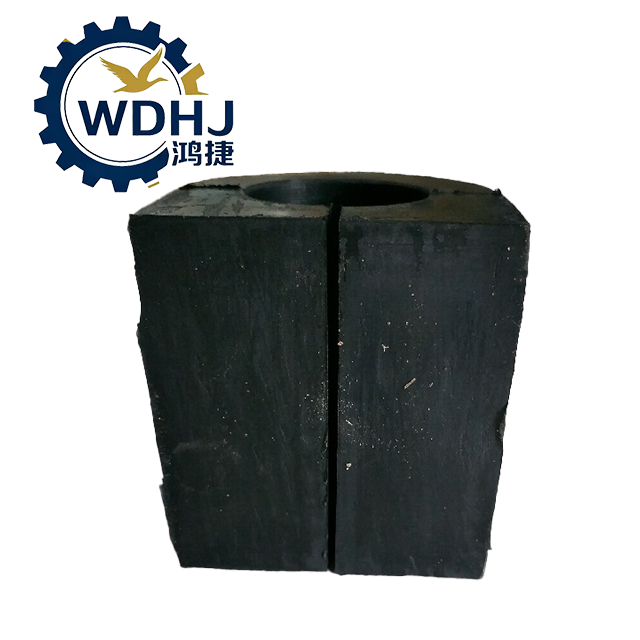

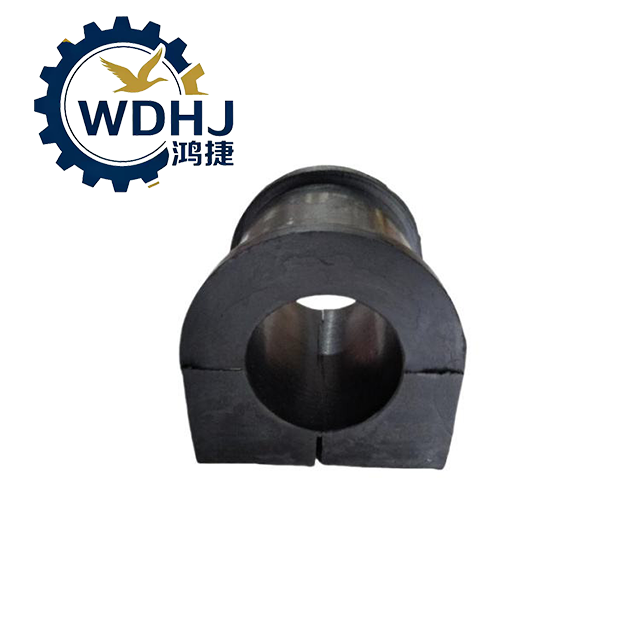

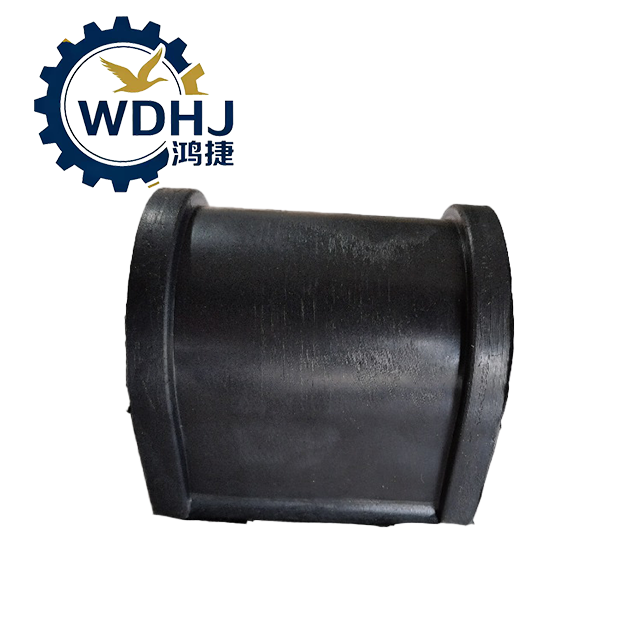

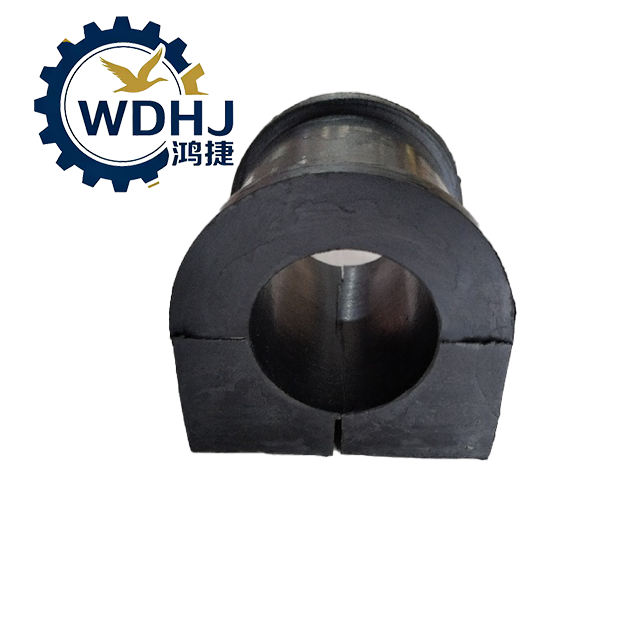

| Part Name | Front Stabilizer Bar Rubber Bushing / Mount Sleeve |
| OEM Part Number | WG9925682102 |
| Alternative Code | WG9925682102/1 (updated variant) |
| Application Position | Front Axle – Lateral Stabilizer Bar to Frame Bracket Connection |
| Vehicle Compatibility | SINOTRUK HOWO T7H, T5G, A7; SITRAK C7H, G7; some SHACMAN X3000/F3000 export versions |
| Function | Dampens vibrations, reduces lateral sway, isolates metal-to-metal contact |
| Material Composition | High-quality natural rubber (NR) or polyurethane composite |
| Design Type | Split-type or sleeve-type with anti-slip texture for easy installation |
| Technology Origin | Based on MAN chassis engineering specifications |
| Replacement Interval | Recommend inspection every 60,000 km; replace if cracked, swollen, or deformed |
| Parameter | Specification |
|---|---|
| Inner Diameter (ID) | Φ50mm or Φ55mm (verify based on production batch and vehicle model) |
| Outer Diameter (OD) | Approx. Φ70–80mm (varies by housing design) |
| Length | Typically 40–60 mm |
| Material | Natural Rubber (NR) or PU/NR blend |
| Hardness (Shore A) | 75–85° ±5° |
| Elasticity & Resilience | High rebound rate (>60%), excellent fatigue resistance |
| Operating Temperature Range | -40°C to +80°C |
| Chemical Resistance | Resistant to water, road salts, mud, UV exposure; sensitive to oil/hydrocarbons |
| Weight | 0.4 kg – 0.6 kg per piece |
| Load Capacity | Designed for dynamic shear and compression loads up to 3 kN cyclic |
SINOTRUK HOWO Full Series Heavy Truck Front Stabilizer Bar Bearing
| OEM Part Number | Full Part Name | Applicable HOWO Truck Models | Specification & Technical Feature |
|---|---|---|---|
| WG9100680068 / 199100680068 | Front Stabilizer Bar Rubber Bearing Bushing | HOWO Classic 336/371/420, HOWO A7, Golden Prince, Steyr King | Inner diameter 32mm, outer 65mm, height 65mm, natural rubber, standard OEM original bushing |
| WG9100680067 / 199100680067 | Front Stabilizer Bar Rubber Bearing (Thickened Wear-resistant) | HOWO Standard Dump Truck, 8×4 Cargo Truck | Reinforced thick rubber, anti-crack, mining heavy load dedicated |
| WG9925682102 | Front Stabilizer Connecting Rod Rubber Bearing Bushing | HOWO T7H, T5G, TX, Sitrak C7H/G7 | Integrated double-layer bushing, with lubrication hole, National VI emission truck exclusive |
| 199100680054 | Stabilizer Bar Bushing Sleeve Assembly (Front Bracket Matching) | HOWO 8×4 Heavy Dump Truck, New HOWO 7-ton Front Axle | Metal composite rubber sleeve, matched AZ9719680091 stabilizer bracket |
| WG9925682120 | Front Anti-roll Bar Rubber Bearing Large Size | HOWO T7H 6×4 Tractor, Long Haul Logistics Truck | Large outer diameter 72mm, high elasticity, highway transport long service life |
| WG9725931060 | Front Stabilizer Bar Fixed Rubber Bearing Block | Old Model HOWO, HOWO Hoka, Early A7 Cab | U-shaped split bushing, easy installation and replacement |
| WG9925680013 | Front Stabilizer Bar Bearing Repair Kit (2pcs Bushings + Washers) | Full HOWO T Series (T5G/T7H/TX) | Complete maintenance set, direct OEM replacement without extra accessories |
