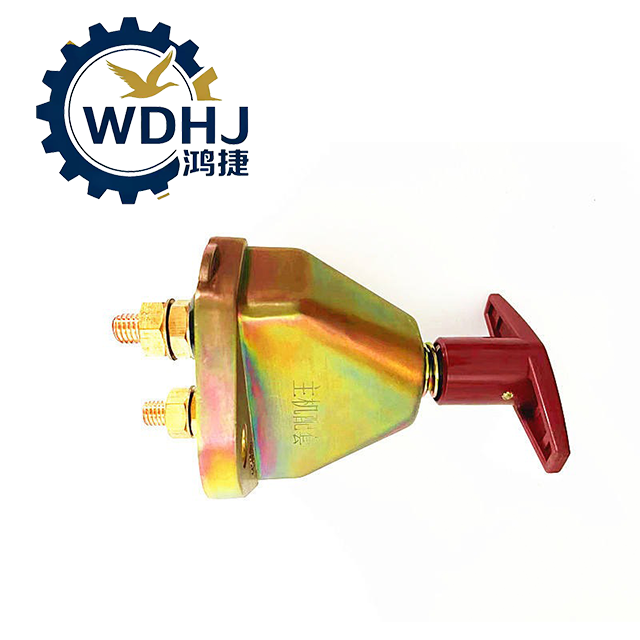

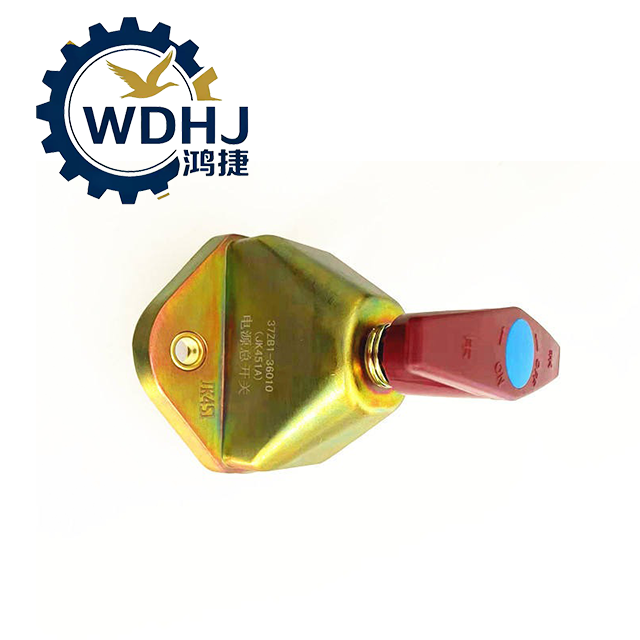

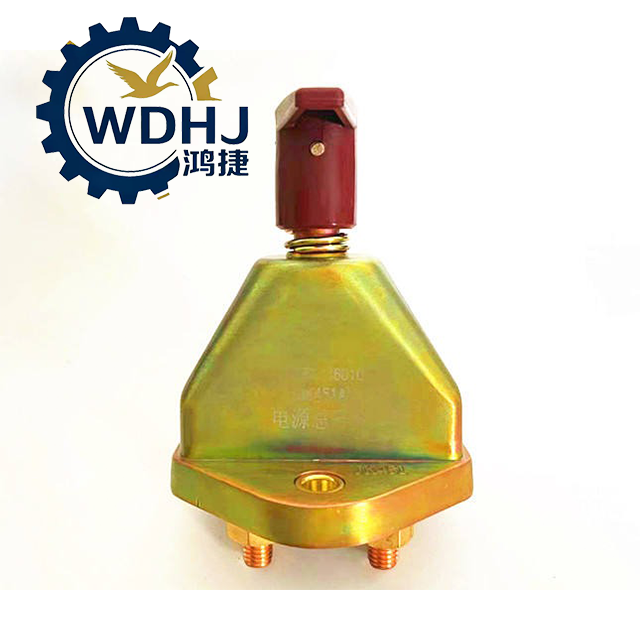

WG9100760100 37ZB1-36010 Truck Spare Parts Battery Switch Main Power Switch for Sinotruk HOWO FAW

WG9100760100 37ZB1-36010 Truck Spare Parts Battery Switch Main Power Switch for Sinotruk HOWO FAW

The 37ZB1-36010 Manual Battery Main Switch (commonly known as the battery master disconnect or power cut-off switch) is a rugged, manually operated electrical isolation device designed for use in 24V heavy-duty commercial vehicles and off-road equipment. It allows drivers and technicians to physically disconnect the battery from the entire vehicle electrical system, providing essential protection against parasitic drain, electrical fires, and unauthorized operation.

Commonly found on Dongfeng, FAW Jiefang, Sinotruk HOWO, Shacman, Foton Auman, XCMG, SANY, and Golden Dragon buses, this switch is a fundamental safety component — especially for fleets operating in remote areas, mining zones, or during long-term storage.

Quantity:
Availability:





Inquire Add to Basket

Model:
37ZB1-36010
Brand:
FAW

Product Description

Attribute	Specification
Product Name	Manual Battery Main Switch / Battery Disconnect Switch
Part Number	37ZB1-36010, 37ZB1-36010-A, 37ZB1-36010-B
Alternative Numbers	JK451A, JK862, JK861, 3736010-50A (functional equivalent)
Voltage Rating	12V / 24V DC (primarily used in 24V truck systems)
Rated Continuous Current	150A – 250A
Peak Surge Current	Up to 2000A (for 5–10 seconds during engine cranking)
Operating Type	Rotary Handle (On/Off Toggle), often lockable with padlock hole
Housing Material	High-Strength Flame-Retardant Plastic or Reinforced Metal Case
Terminal Material	Thick Copper Posts (Tinned or Silver-Plated) with M10/M12 Threaded Studs
Mounting Location	Mounted near battery box on chassis frame
Vehicle Application	Dongfeng, FAW Jiefang, Sinotruk HOWO, Shacman, Foton, XCMG, SANY, Yutong, King Long
Equipment Types	Heavy Trucks, Construction Machinery, Buses, Generators

Name1

Name2

Parameter	Value
Switch Mechanism	Mechanical Break-Type Isolator (no arc suppression chamber)
Contact Resistance	< 0.8 mΩ (ensures minimal voltage drop and heat generation)
Dielectric Strength	Withstands > 1500V AC insulation test between contacts and housing
Protection Level	IP65 rated (dust-tight and protected against water jets)
Temperature Range	-40°C to +100°C (-40°F to 212°F)
Service Life	≥ 50,000 operations (mechanical endurance)
Weight	Approx. 0.9 – 1.2 kg
Compliance Standards	GB/T, ISO 10605 (ESD), ROHS, automotive-grade safety standards
