You are here: Home » Products » Dongfeng » Engine Systems » Common Rail Injector 5571980 Condition Fuel Pump Injector Dongfeng 5571980 Fuel Pump Injector For Truck Engine Application High-pressure Common Rail Electronically Controlled Injector

Common Rail Injector 5571980 Condition Fuel Pump Injector Dongfeng 5571980 Fuel Pump Injector For Truck Engine Application High-pressure Common Rail Electronically Controlled Injector

Common Rail Injector 5571980 Condition Fuel Pump Injector Dongfeng 5571980 Fuel Pump Injector For Truck Engine Application High-pressure Common Rail Electronically Controlled Injector

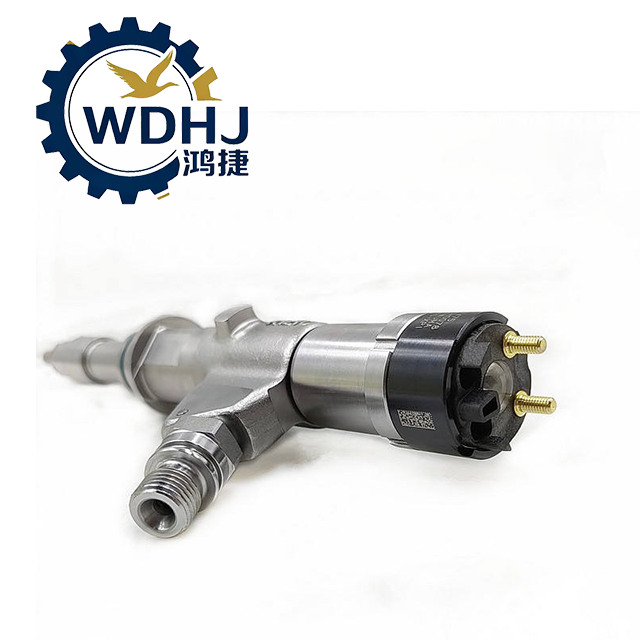

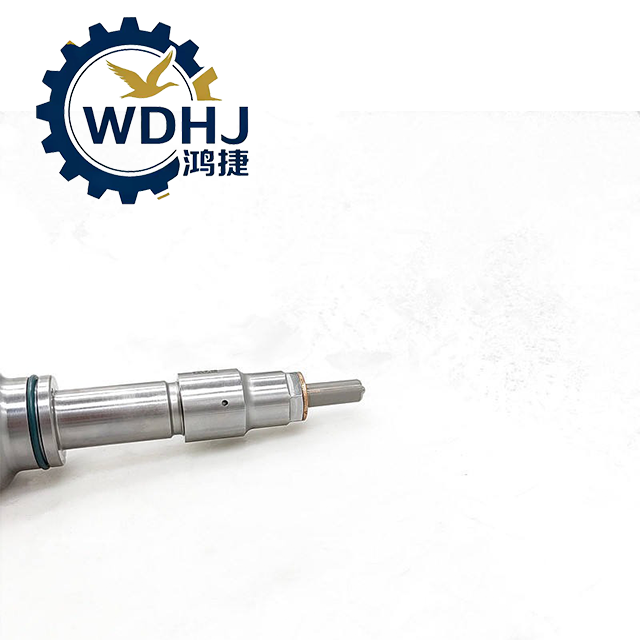

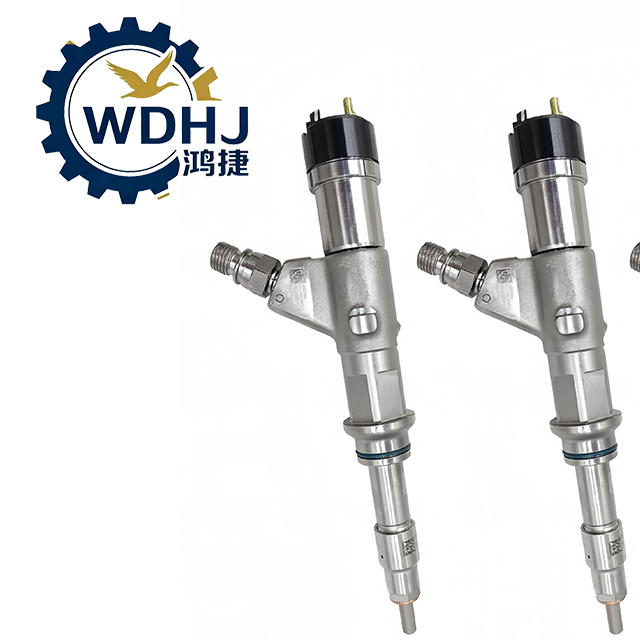

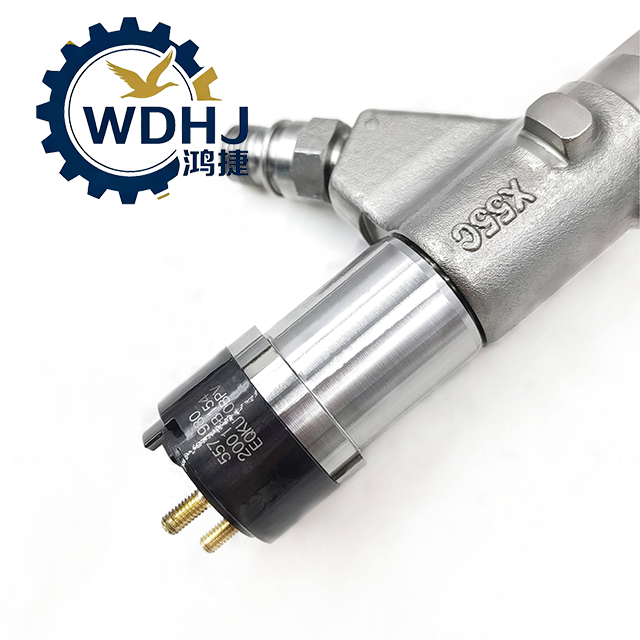

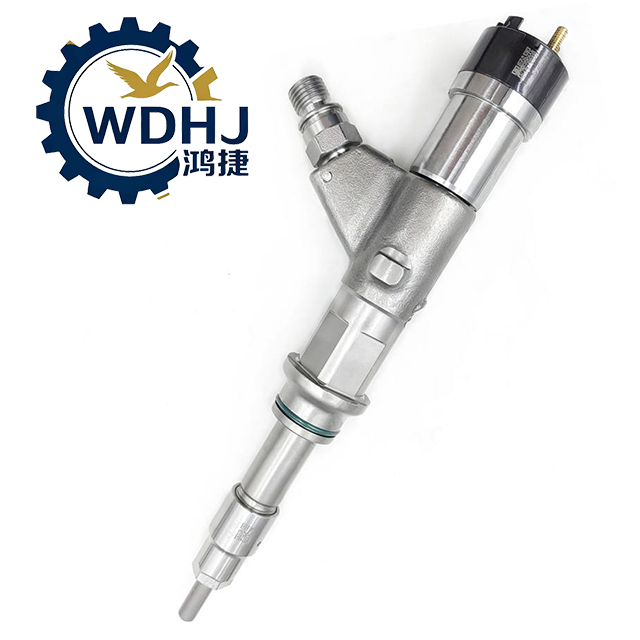

The Cummins 5571980 Fuel Injector Assembly is an original equipment (OE) high-pressure common rail injector designed for advanced diesel engines utilizing Cummins’ XPI (Extra High Pressure Injection) fuel system. As one of the most critical components in modern diesel powertrains, this injector delivers ultra-precise fuel metering and atomization under extreme pressures — directly influencing engine performance, fuel efficiency, emissions compliance, and noise control.

Engineered to meet Euro V/VI, EPA, and China 6 emission standards, the 5571980 supports multiple injection events per combustion cycle (pre-, main, and post-injection), enabling cleaner combustion, reduced particulate matter (PM), and lower nitrogen oxides (NOx). It is widely used across heavy-duty commercial vehicles, industrial machinery, and specialty transport applications where reliability and precision are paramount.

Quantity:
Availability:





Inquire Add to Basket

Model:
5571980
Brand:
Dongfeng

Product Description

Attribute	Description
Product Name	High-Pressure Common Rail Fuel Injector / XPI Injector
System Type	Electronically controlled solenoid-type injector (XPI platform)
Injection Control	ECM-managed multi-event injection (pre-spray, main, post-spray)
Material	High-speed alloy steel with hardened internal components; corrosion-resistant plating
Sealing Method	Reusable top O-ring + one-time-use copper sealing washer at cylinder head interface
Mounting Style	Direct fit into cylinder head fuel rail port
Key Features
	- Supports >2000 bar injection pressure
	- Millisecond-level response time
	- Enables precise fuel trimming via IMA/Trim Code
	- Low-noise combustion through staged injection
	- Optimized for ultra-fine fuel atomization

Parameter	Specification
Part Number (OEM)	5571980
Alternate Designation	5571980PX (remanufactured/reconditioned OE version)
Fuel System	Cummins XPI (Extra High Pressure Injection) Common Rail
Max Injection Pressure	Up to 2,000–2,200 bar (29,000–31,900 psi)
Control Type	Solenoid-actuated (electromagnetic valve)
Injection Events	Capable of up to 5 injections per cycle (including pilot and post-injection)
Weight	Approx. 0.5 – 1.7 kg (varies by packaging and accessories)
Operating Voltage	12V/24V DC (controlled by ECM pulse width modulation)
Emission Compliance	Designed for Euro V, Euro VI, EPA 2010+, and China 6 applications
Durability	Rated for over 1 million injection cycles under normal operating conditions
