DZ97259820159
Shacman
| Attribute | Details |
|---|---|

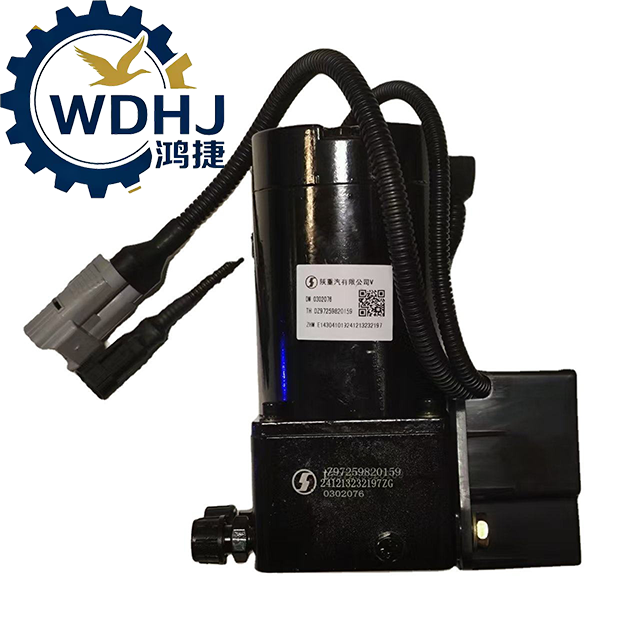

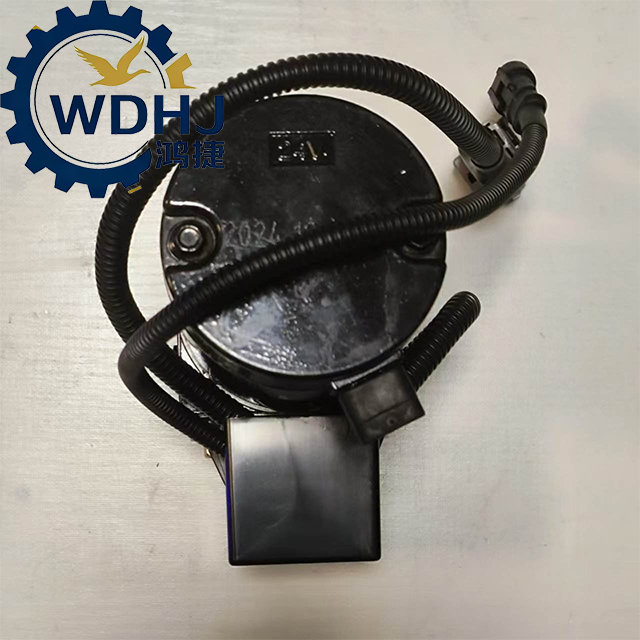

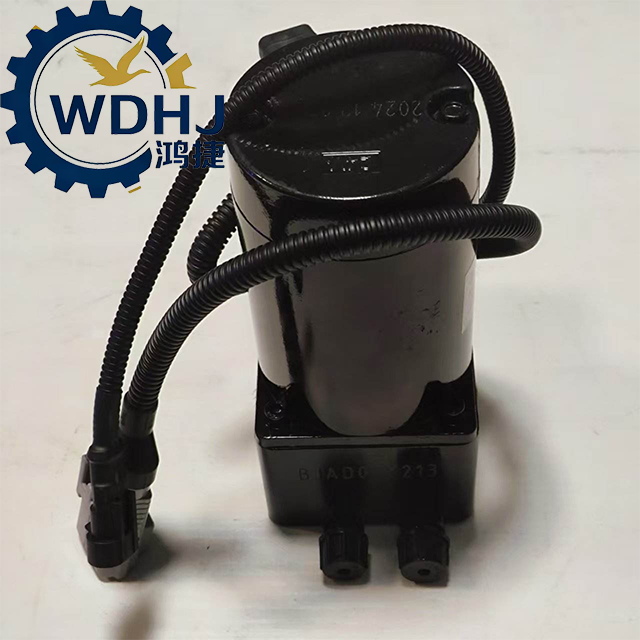

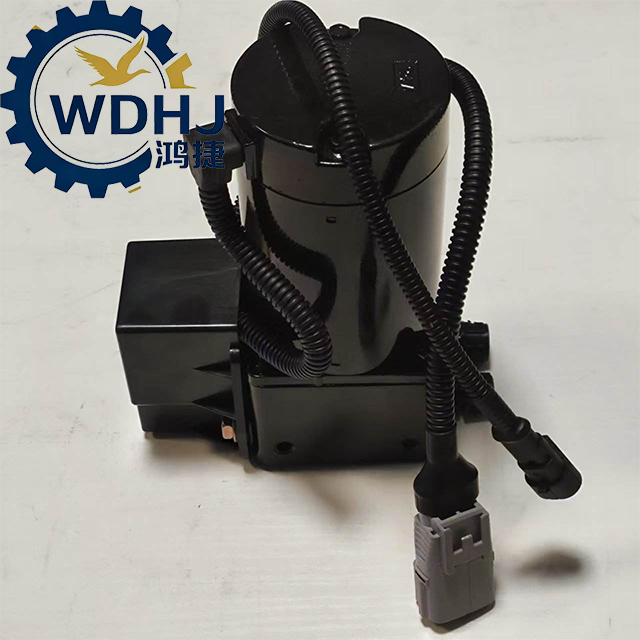

| Part Name | Electric Motor Assembly / Cab Lift Pump Motor / Hydraulic Pump Drive Motor |
| OEM Part Number | DZ97259820159 |
| Brand/Manufacturer | SHACMAN (Shaanxi Automobile Group), Original Equipment (OE) Standard |
| Type | Direct Replacement / OEM Quality |
| Voltage Rating | 24V DC (Standard truck electrical system) |
| Rated Power Output | 0.8 kW – 1.5 kW (depending on hydraulic pump configuration) |
| Operating Current | Typically 30–60A under load |
| Housing Material | Die-cast metal or reinforced steel casing for durability and heat dissipation |
| Internal Components | Brushed DC motor with copper windings, permanent magnets, gear reduction (if applicable) |
| Sealing Level | IP54 or higher (protected against dust and water splashes) |
| Mounting Type | Bolt-on flange mount directly to the hydraulic pump body |
| Connection Type | Terminal block or ring terminal connection (typically two terminals: positive and negative) |
| Function | Drives hydraulic pump to generate pressure for lifting/descending the truck cab |
| Origin | Shaanxi or Tianjin, China |
| Warranty | Typically 12 months (varies by supplier) |
Name1
Name2
Verify Compatibility Before Purchase
Confirm that the motor matches your existing hydraulic pump model, mounting style, and voltage requirements.
Disconnect Battery Before Work
Always disconnect the negative terminal of the 24V battery before removal/installation to prevent accidental activation or short circuits.
Professional Installation Recommended
Involves handling high-current wiring and hydraulic connections. Should be performed by trained technicians familiar with SHACMAN systems.
Check Hydraulic Fluid Level & Quality
Use correct hydraulic oil (e.g., ISO VG 32 or HVLP 32 anti-wear oil). Low levels can cause dry running → motor/pump overheating and failure.
Avoid Dry Running / No-Load Operation
Never run the motor without being connected to the hydraulic system. This causes excessive speed and can damage internal gears or bearings.
Inspect Entire System During Replacement
Also check:
Condition of the hydraulic pump
O-rings and seals
Control switch functionality
Wiring harness for corrosion or loose connections
Limit Continuous Operation
Do not operate continuously for more than 30 seconds. Allow cooling periods between cycles to prevent overheating.
Ensure Proper Grounding
Poor grounding is a common cause of weak performance or failure. Clean ground points and ensure tight connections.
Test After Installation
Perform multiple test lifts and lowers while observing:
Smooth operation
No unusual noise (grinding, whining)
No leaks from the pump
Complete cab descent and lock-in place
Use Genuine or High-Quality Replacements Only
Avoid counterfeit motors with substandard windings or bearings — they fail prematurely and pose safety risks.
