WG9925551112/1 WG99255511121
Sinotruk HOWO
| Attribute | Description |
|---|---|

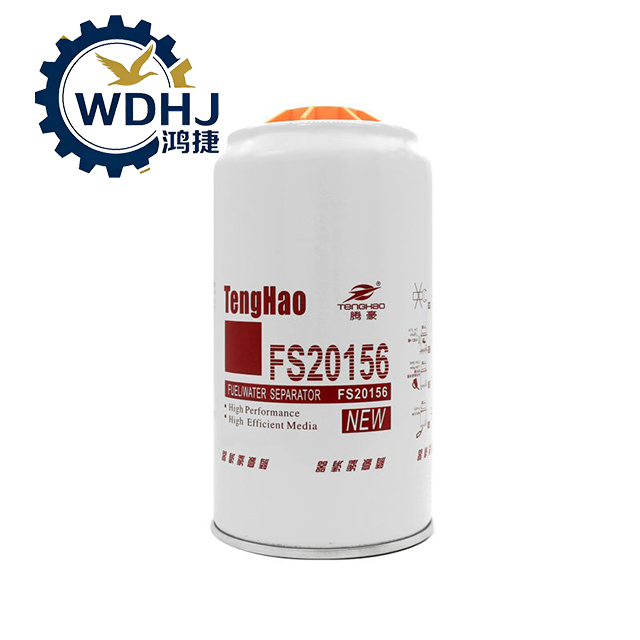

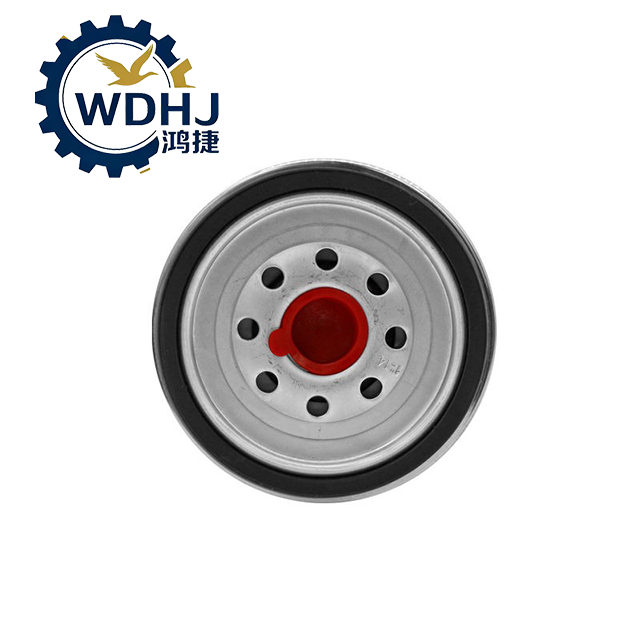

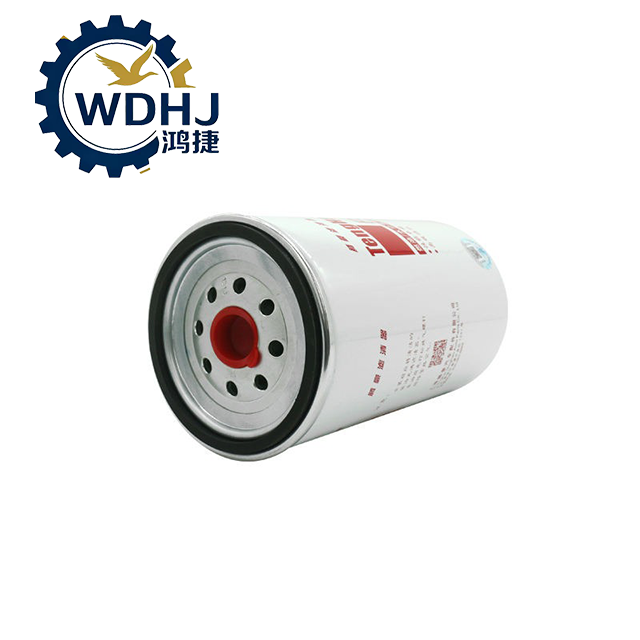

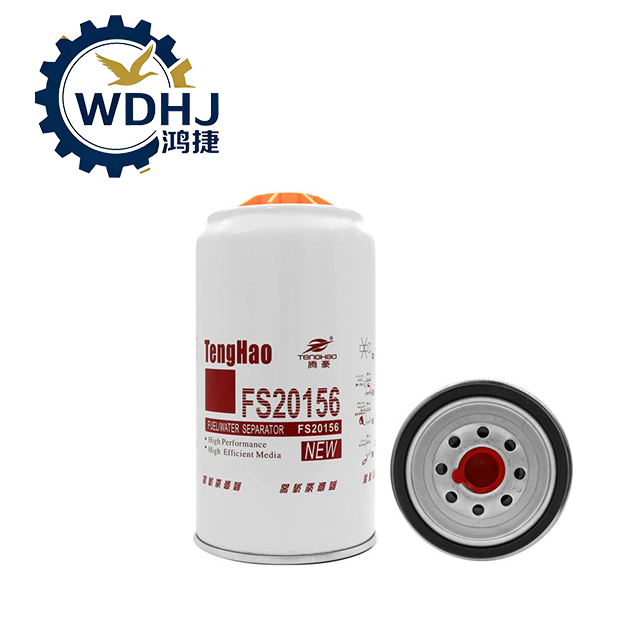

| Part Name | Fuel Water Separator Filter / Diesel Fuel Filter Element |
| OEM Number | WG99255511121 |
| Type | Spin-on replaceable cartridge (integrated housing and filter media) |
| Filtration Rating | 10 microns — captures fine particulates and water droplets |
| Filter Media | High-efficiency cellulose or synthetic blend paper |
| Housing Material | Steel outer casing with corrosion-resistant coating |
| Seal Type | Rubber O-ring (NBR or FKM fluoroelastomer for oil resistance) |
| Mounting Thread Size | 1" - 14 UNF (Unified National Fine) thread — standard for large filters |
| Total Height (L) | Approx. 217.6 mm |
| Outer Diameter (OD) | Approx. 110.3 mm |
| Operating Pressure | Up to 8 bar (typical in low-pressure fuel systems) |
| Working Temperature Range | -30°C to +110°C |
| Function | |
| • Separates free and emulsified water from diesel | |
| • Traps solid particles (dust, rust, sludge) | |
| • Protects fuel injectors, pumps, and ECU-controlled components | |
| Condition | Brand new (OEM fresh stock or premium aftermarket) |
Name1
Name2
Replace Regularly
Follow maintenance schedule: every 15,000–20,000 km.
In dusty environments or poor fuel areas, shorten interval to 10,000–12,000 km.
Drain Water Before Replacement
Open the water drain plug at the bottom of the separator cup before removing the old filter.
Dispose of separated water properly.
Use Genuine or High-Quality Filters
Avoid counterfeit products — they often lack proper coalescing layers or burst strength.
Choose OEM or trusted brands like Fleetguard, Donaldson, MANN-FILTER.
Lubricate the O-Ring Seal
Apply a thin layer of clean diesel or light oil to the rubber seal before installation.
Prevents dry fitting and leakage.
Hand-Tighten Only
Install by hand until the gasket contacts the mount.
Final tightening: 3/4 to 1 full turn after contact (do not use wrench unless specified).
Over-tightening can crack the housing or damage threads.
Bleed the Fuel System After Installation
Use manual primer pump or electric fuel pump to remove air from the system.
Failure to bleed causes hard starting or no-start condition.
Inspect Mounting Base
Check for cracks, corrosion, or damaged threads on the filter head.
Replace base assembly if worn.
Check for Leaks After Start-Up
Run engine and inspect around filter for drips or seepage.
Stop immediately if leak is detected.
Dispose of Used Filters Properly
Considered hazardous waste — recycle through approved facilities.
Do not incinerate or dump.
Storage Advice
Store upright in dry indoor environment.
Keep protective cap on until use.
