1014400908
Sinotruk HOWO
| Attribute | Description |
|---|---|

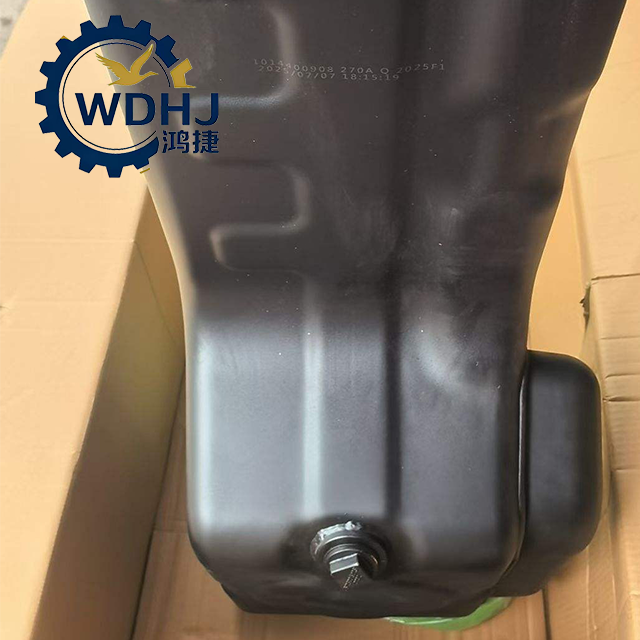

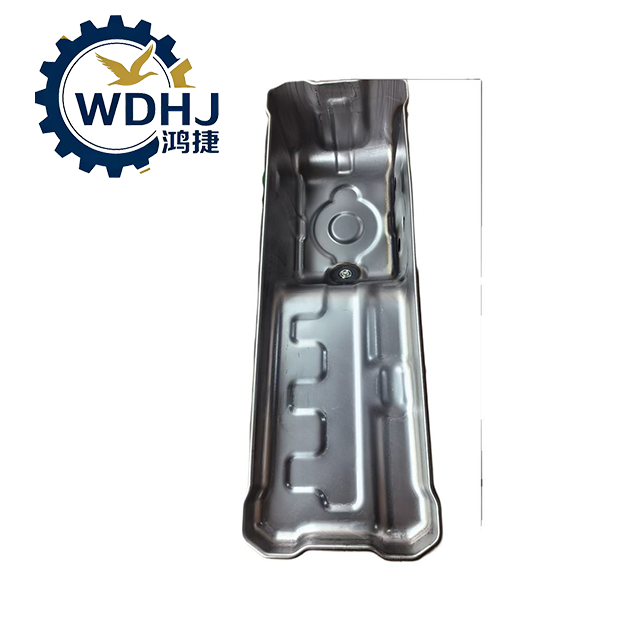

| Official Name | Engine Oil Pan Assembly / Oil Sump |
| Common Name | Oil Pan, Crankcase Bottom Cover |
| OEM Brand | Weichai Power (Shandong Weichai Engine Co., Ltd.) |
| Part Number | 1014400908 |
| Alternative Numbers | 1018474433, 1015729415, 1019196616, 612600150379 |
| Material | High-strength die-cast aluminum alloy or reinforced stamped steel (model-dependent) |
| Design Type | One-piece integrated structure with internal baffles |
| Weight | Approximately 5 kg to 15 kg (varies by engine displacement and material) |
| Origin | Weifang, Shandong Province, China |
| Sealing Method | Uses dedicated gasket (e.g., 1001799606) or liquid sealant on mating surface |
Name1
Name2
Confirm fitment: Ensure 1014400908 matches your engine model (WP15NG, WP13, etc.).
Inspect new unit: Check for dents, cracks, or deformation — especially around the flange.
Clean engine block surface: Remove old gasket residue, dirt, or oil sludge completely.
Verify accessories: Have new gasket (1001799606), drain plug, and washer ready.
Position the Oil Pan: Carefully align the oil pan with the engine block's lower face.
Install Gasket: Place new gasket (1001799606) evenly without twisting.
If using liquid sealant (e.g., Weichai RTV), apply thin bead (~3mm) only where specified.
Insert Bolts: Start all mounting bolts finger-tight to ensure even alignment.
Torque Sequence:
Tighten bolts in a crisscross (diagonal) pattern
Use calibrated torque wrench
Final torque: Typically 18–25 N·m (confirm exact value per service manual)
Apply multiple stages (e.g., 50% → 75% → 100%) to avoid warping

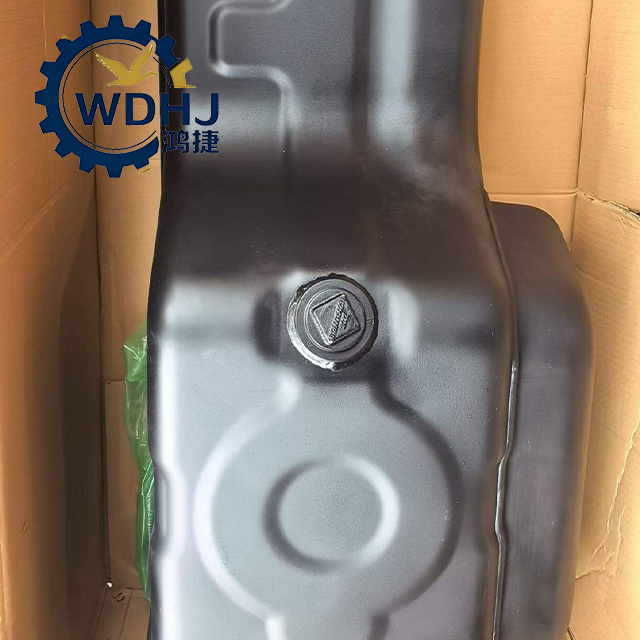

Install Drain Plug: Insert with new copper/composite washer; torque to 35–45 N·m
Refill Engine Oil: Add recommended grade and quantity per engine specs.
Leak Test: Run engine for several minutes, then inspect entire oil pan seam for seepage.
