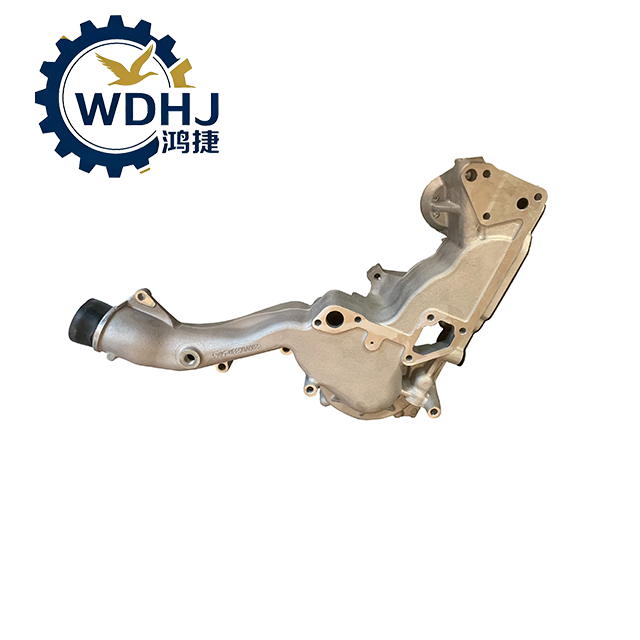

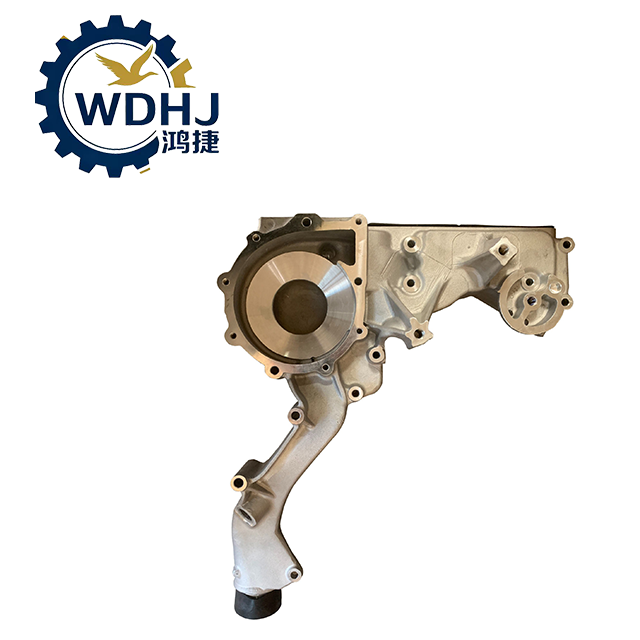

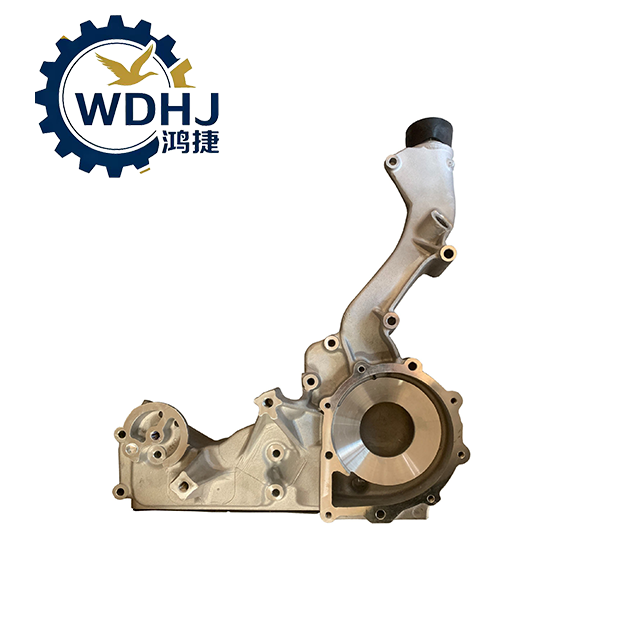

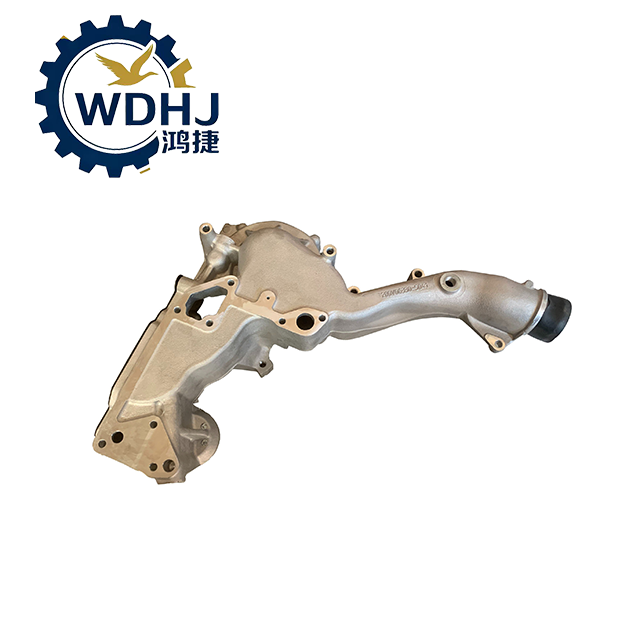

200V06330-5041 Distribution Housing for SINOTRUK MC11 Engine High Quality Spare Parts

Name1

Name2

Installation Instructions (Step-by-Step Guide)

⚠️ WARNING: Work involves high-current circuits and sensitive engine electronics. Disconnect battery first!

✅ Step 1: Prepare the Vehicle

• Park on level ground and turn off ignition.

• Disconnect both battery terminals (start with negative).

• Wait 2–3 minutes to allow capacitors to discharge.

✅ Step 2: Access the Housing

• Locate the box on the engine (usually near valve cover or front gear housing).

• Remove any protective covers or brackets.

• Clean dirt and oil from surrounding area.

✅ Step 3: Disconnect Wiring Harness

• Unplug main multi-pin connector(s) carefully.

• Label sub-harnesses if multiple connections exist.

• Inspect pins for corrosion, bending, or overheating signs.

✅ Step 4: Remove Old Housing

• Unscrew mounting bolts (M5/M6 typically).

• Gently remove the unit — avoid pulling wires out of seals.

• Note position of internal relays and fuses.

✅ Step 5: Install New Engine Distribution Housing

• Place new unit into position.

• Secure with original hardware — torque to ~8–10 N·m.

• Replace sealing gasket if damaged.

✅ Step 6: Reconnect All Connectors

• Plug in all harnesses until they click.

• Ensure grounding strap is reconnected securely.

• Verify no exposed wires or stress on cables.

✅ Step 7: Final Test

• Reconnect batteries.

• Turn key to ON — check for ECU self-test lights.

• Start engine — confirm normal idle and system operation.

• Use diagnostic tool to scan for DTCs (Diagnostic Trouble Codes).
