| Quantity: | |
|---|---|
1207161-E9300
Dongfeng
| Attribute | Description |
|---|---|

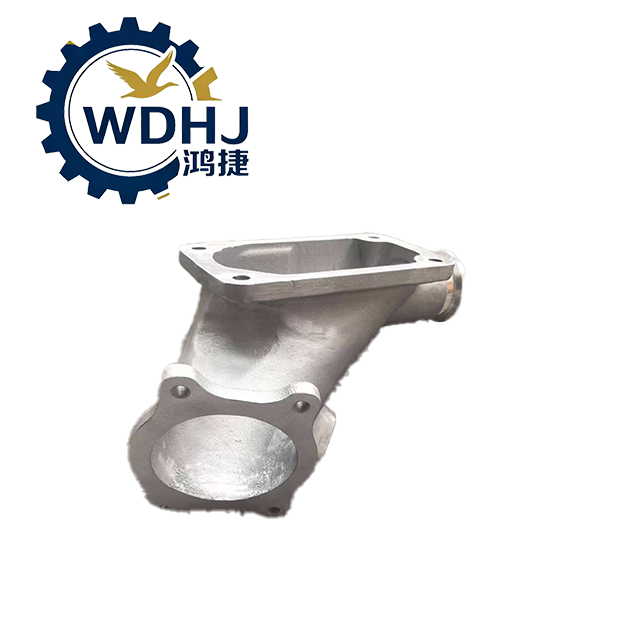

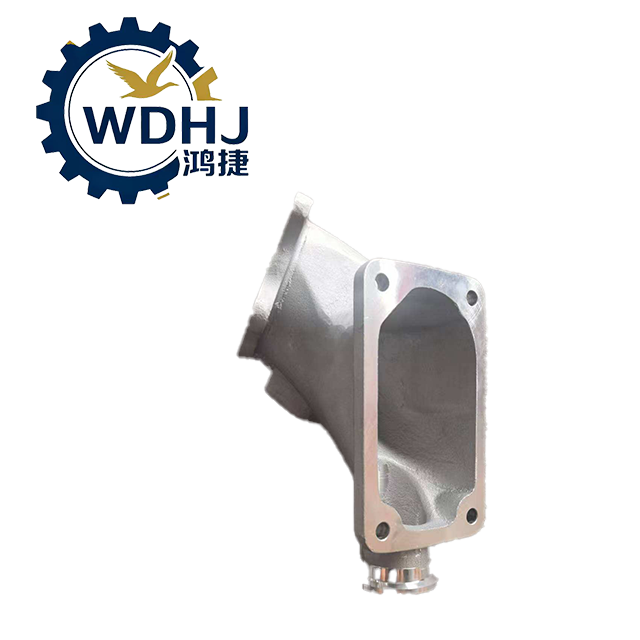

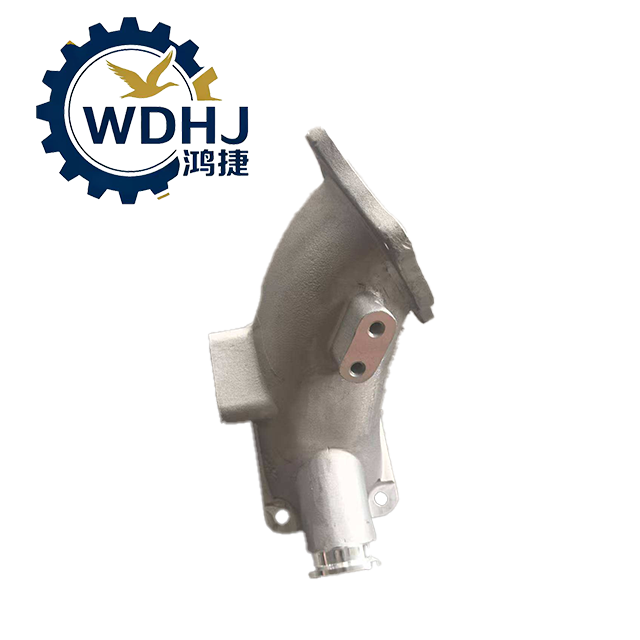

| Product Name | EGR Mixer Assembly / Intake Mixing Pipe / EGR Blending Tube |
| Function | Uniformly blends cooled EGR gas with compressed fresh intake air to optimize combustion and reduce NOx formation |
| Material | High-strength cast aluminum alloy – lightweight, thermally conductive, corrosion-resistant |
| Internal Design | Features Venturi-shaped flow path and/or spiral guide vanes to enhance turbulence and ensure homogeneous mixture distribution |
| Mounting Location | Installed between the charge air cooler (intercooler) outlet and the intake manifold |
| Sealing Type | Dual-flange connection with high-temp resistant rubber or silicone O-rings at both ends |
| Compatibility | Engineered for integration with Dongfeng’s full Euro VI aftertreatment system |
| Parameter | Specification |
|---|---|

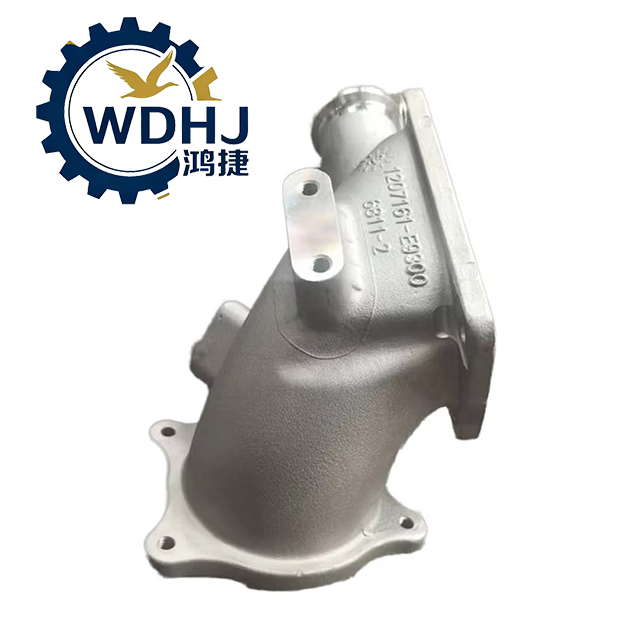

| Part Number (OEM) | 1207161-E9300 |
| Application Standard | Complies with Euro VI / China 6 emission regulations |
| Operating Temperature Range | -40°C to +200°C (transient peaks up to 250°C possible) |
| Pressure Rating | Designed for boosted intake systems; withstands up to 3.5 bar boost pressure |
| Flow Optimization | Low-pressure drop design (< 0.15 bar typical loss) to preserve engine breathing efficiency |
| Mixing Efficiency | Achieves >95% homogeneity of EGR/fresh air blend across all operating conditions |
| Corrosion Resistance | Internal surfaces treated or coated to resist acidic condensates from EGR gases (e.g., nitric and sulfuric acid byproducts) |
| Durability | Validated for over 800,000 km in real-world fleet testing |
