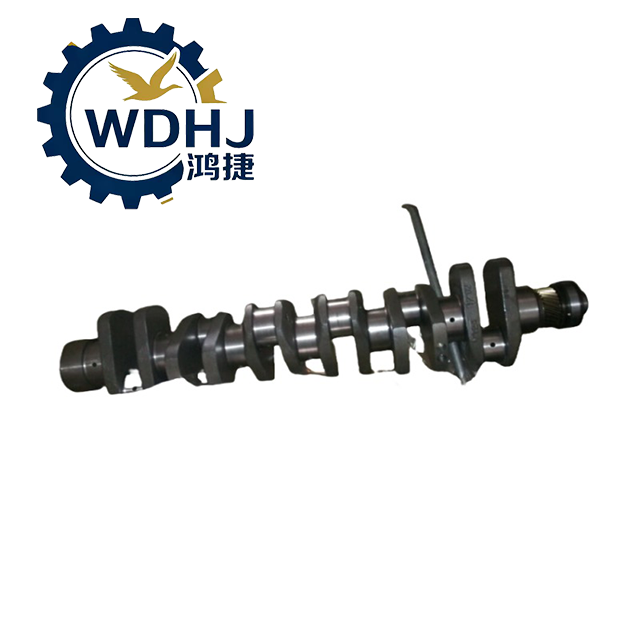

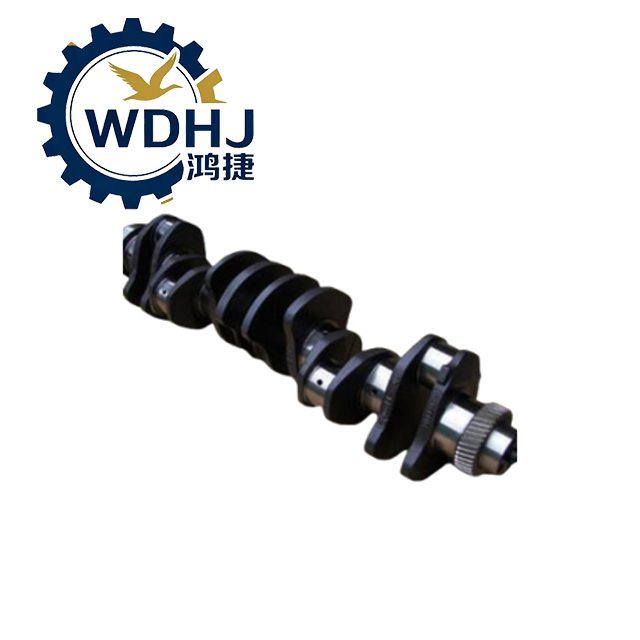

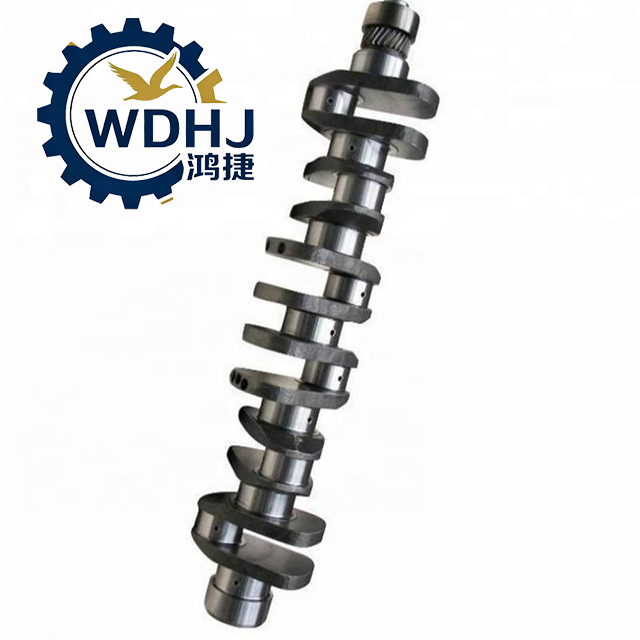

Brand New 61560020029 Crankshaft for HOWO SHACMAN FAW Weichai Truck Engines' Essential Spare Part

The Crankshaft Assembly (Part No. 61560020029) is a core OE (Original Equipment) component produced by Weichai Power, serving as the central rotating element in diesel engines. It converts the reciprocating linear motion of pistons and connecting rods into rotational torque, which powers the drivetrain and auxiliary systems such as the camshaft, fuel pump, and alternator.

Precision-forged from high-strength alloy steel and treated with advanced surface hardening technologies, this crankshaft delivers exceptional durability, fatigue resistance, and dynamic balance under continuous heavy-load operation. Designed specifically for Weichai’s legendary WD615 series engines, it remains one of the most critical components in China's heavy-duty truck and construction machinery fleets.

Quantity:
Availability:





Inquire Add to Basket

Model:
61560020029
Brand:
FAW

Product Description

Attribute	Description
Product Name	Crankshaft Assembly
Manufacturer	Weichai Power Co., Ltd. (China)
Type	Original Equipment (OE), Forged Steel Crankshaft
Function	Converts piston reciprocating motion into rotational output; drives flywheel, oil pump, and valve train via gear/belt system
Application	Inline 6-cylinder heavy-duty diesel engines
Material	High-tensile alloy steel (e.g., 42CrMo, equivalent grade), fully forged
Surface Treatment	Full-length nitriding or medium-frequency induction hardening on journals for enhanced wear and fatigue resistance
Design Standard	Meets strict OEM specifications; dynamically balanced to minimize vibration at high RPM
Quality Assurance	Passed rigorous inspection including magnetic particle testing, dimensional verification, and oilway cleanliness checks

Name1

Name2

Parameter	Value / Detail
OEM Part Number	61560020029
Engine Configuration	Inline 6-cylinder (I6)
Main Journals	7 main bearing journals
Connecting Rod Journals	6 crankpins (offset for firing order balance)
Journal Hardness	≥ 58 HRC after heat treatment
Weight Range	Approx. 105 kg – 115 kg (varies slightly based on counterweight design)
Balancing Features	Precision-machined counterweights; factory-dynamic balanced to ≤ 30 g·cm residual imbalance
Oil Sealing Design	Tapered rear end with spiral oil return grooves to prevent rear main seal leakage
Lubrication System	Internal drilled oil passages from main to rod journals; must be cleaned before installation
Fatigue Life	Designed for over 800,000 km in commercial transport applications; supports multiple reground cycles (typically up to -0.25mm per reconditioning)
