Certified Auto Parts Electric Motor Unit Dongfeng Truck Parts Dz9X189822061 Motor Assembly Cab Lifting Motor Assembly / Electric Tilting Pump

Certified Auto Parts Electric Motor Unit Dongfeng Truck Parts Dz9X189822061 Motor Assembly Cab Lifting Motor Assembly / Electric Tilting Pump

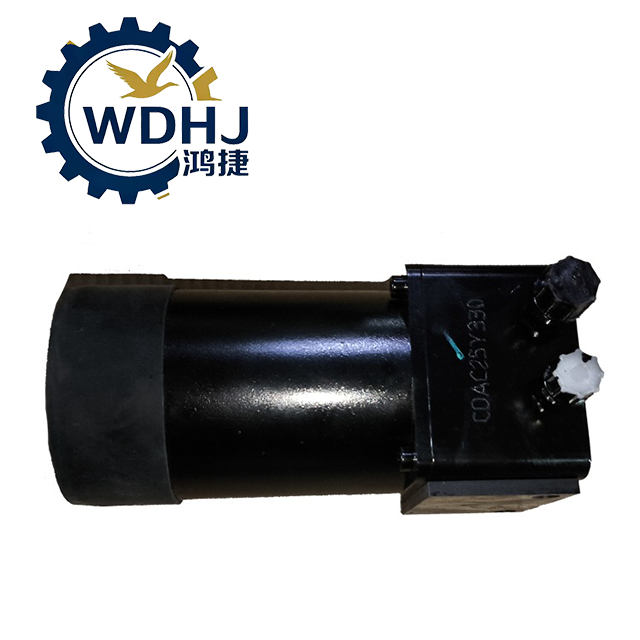

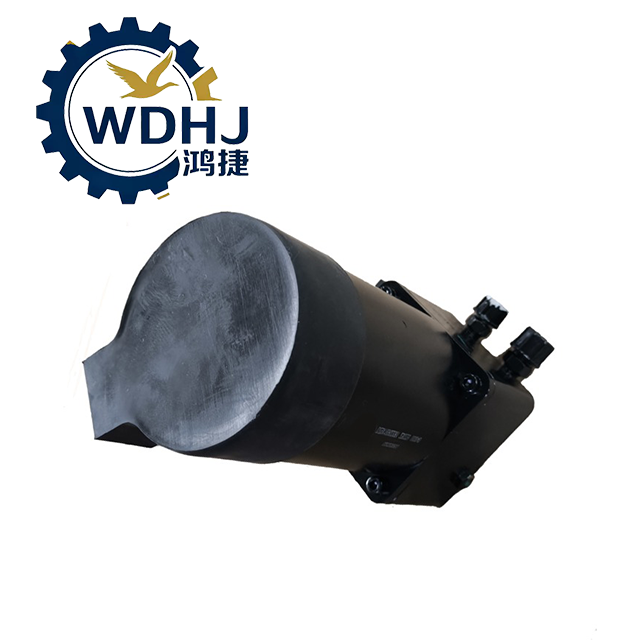

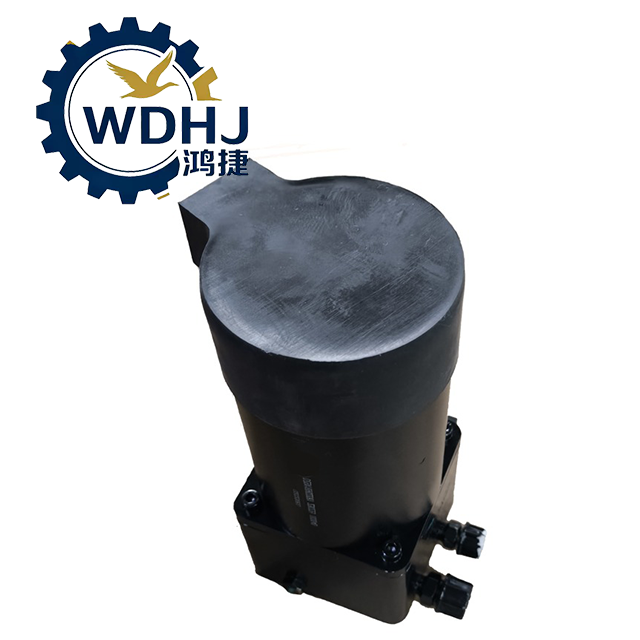

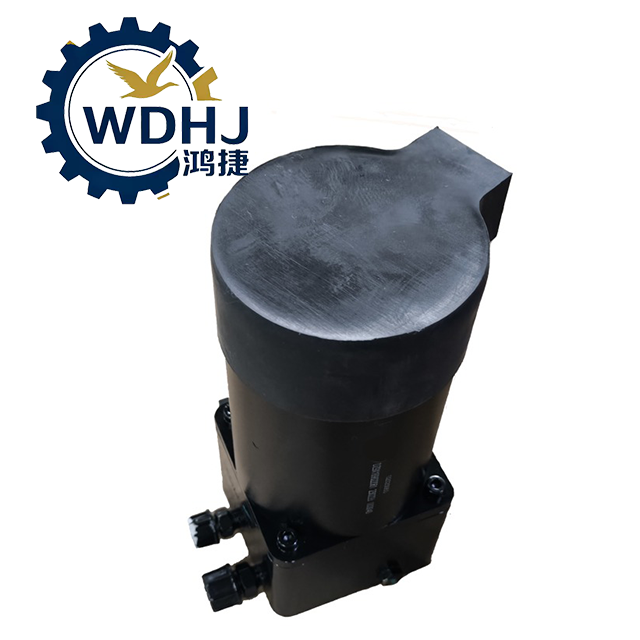

The Cab Lift Motor Assembly (Part No. DZ9X189822061) is an OEM-specified electro-hydraulic power unit designed specifically for use in SHACMAN DeLong X5000 and X6000 series heavy-duty trucks. Also known as an Electric Tipping Pump or Cab Tilting Hydraulic Unit, this component serves as the core driving force behind the cab lifting system, enabling smooth and controlled tilting of the truck’s cab to provide access for engine inspection, maintenance, and repairs.

Integrated with a high-torque electric motor and gear-driven hydraulic pump, this assembly pressurizes hydraulic fluid from a reservoir to actuate the lift cylinder. Engineered for durability and reliability under harsh conditions—including extreme temperatures, dust, vibration, and frequent operation—it meets industrial-grade protection standards and ensures consistent performance over time.

Quantity:
Availability:





Inquire Add to Basket

Model:
DZ9X189822061
Brand:
Dongfeng

Product Description

Attribute	Specification
Product Name	Cab Lift Motor Assembly / Electric Tipping Pump
Manufacturer	SHACMAN Original Equipment; produced by authorized hydraulic/electrical suppliers
Primary Part Number	DZ9X189822061
Alternative Names	Electric Cab Tilt Pump, Hydraulic Lifting Motor, Cab Flip Motor
Operating Voltage	24V DC (standard for Chinese heavy-duty trucks)
Function	Powers hydraulic system to raise/lower driver's cab
Drive Type	Electric motor coupled with internal gear-type hydraulic pump
Housing Material	Cast aluminum or steel alloy body (corrosion-resistant)
Sealing Level	IP55-rated (protected against dust and low-pressure water jets)
Mounting Location	Frame rail side or near cab suspension pivot point
Application Class	Heavy-Duty Commercial Trucks & Specialized Chassis

Parameter	Value / Detail
Rated Voltage	24V DC nominal
Motor Type	High-torque permanent magnet DC motor
Pump Type	Internal gear pump (positive displacement)
Flow Rate	~0.8–1.2 L/min at rated speed
Working Pressure	Up to 8–10 MPa (~1160–1450 psi)
Reservoir Capacity	Integrated or remote tank (typically 1.5–2.0L)
Oil Compatibility	Anti-wear hydraulic oil (e.g., ISO VG 32 or equivalent)
Operation Duty Cycle	Intermittent — Max continuous run time: ≤ 2 minutes
Ambient Temperature Range	-30°C to +80°C (-22°F to +176°F)
Weight	Approx. 4.5 – 6.0 kg (10–13 lbs)
Connector Type	Waterproof electrical plug (typically 2-pin)
Fluid Connections	Standard metric flare fittings (e.g., M12×1.5 or M14×1.5)
