| Quantity: | |
|---|---|
DZ9X189360406
Shacman
| Parameter | Specification |
|---|---|

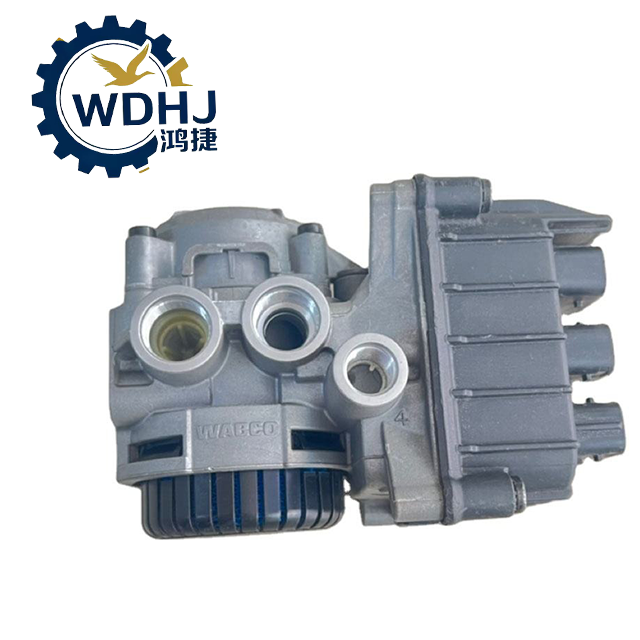

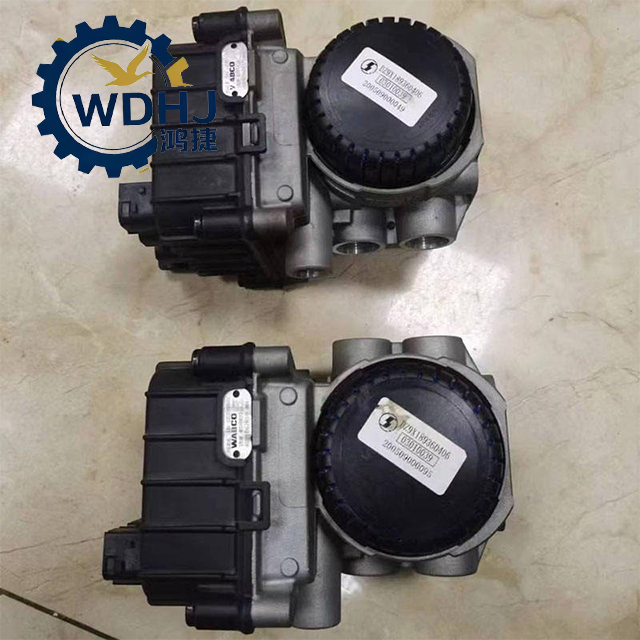

| Part Name | EBS Front Axle Modulator Assembly |
| OEM Number | DZ9X189360406 |
| Primary Function | Electronically controlled pneumatic valve module for precise braking force modulation |
| Control Type | Electro-pneumatic solenoid valves with CAN bus communication |
| Input Signal Source | EBS ECU via vehicle CAN network (J1939 protocol) |
| Output | Variable air pressure to front brake chambers (service brake, parking brake) |
| Response Time | < 150 ms faster than conventional ABS systems |
| Operating Pressure Range | 7–10 bar (100–145 psi) compressed air supply |

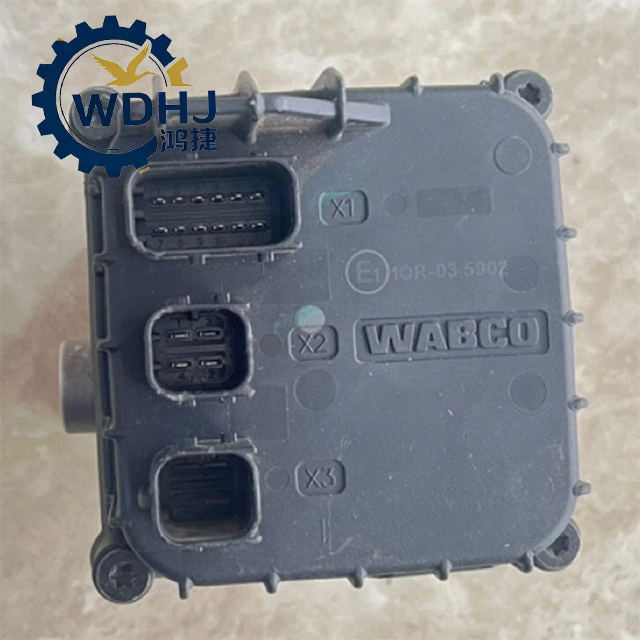

| Electrical Interface | Multi-pin sealed connector (typically 8–12 pin) compatible with WABCO/Knorr standards |
| Pneumatic Ports | • Inlet: From air reservoir • Outlet: To front axle service/parking brake chambers • Exhaust: Muffler-equipped vent port |
| Mounting Location | Mounted on chassis frame rail near front axle, protected by bracket/shield |
| Weight (approx.) | ~3.8–4.5 kg (8.4–10 lbs) |
| Housing Material | Die-cast aluminum alloy with IP67-rated sealing against dust and water ingress |
| Operating Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Diagnostics Support | Full OBD-II/CAN J1939 compatibility; real-time fault code reporting |
|
|
|
| Part Number | Part Name | Applicable Models | Product Attribute |
|---|---|---|---|
| DZ9100410055 | Complete Front Axle Assembly | Shacman Delong F2000, Aolong | Genuine OEM, Hande 7.5t Non-drive Front Axle, Cast Steel, For Tractor & Dump Truck, Anti-rust Paint |
| 188000410054 | Front Axle Sub-assembly | Shacman F2000 Old Model | Factory Original, Maintenance Complete Module, Heavy Load Chassis Part, Wear Resistant |
| DZ9100410071 | Front Axle Beam Assembly | F3000, Old M3000 | Hande OEM Accessory, Integrated Steering Base, Standard 9t Front Axle, Replaceable |
| DZ9100410356 | Front Axle Assembly | New M3000, H3000 | Authentic Shacman Spare Part, 9.5t Lightweight Front Axle, For 6x4 Cargo Truck, Precision Casting |
| DZ9100410358 | Left Steering Knuckle Assembly | F3000, X3000, New M3000 | Original Steering Core Module, Ductile Iron, High Toughness, With Kingpin Bushing Pre-installed |
| DZ9100410215 | Right Steering Knuckle Assembly | F3000, X3000, New M3000 | OEM Replacement Part, Heavy Duty Steering Component, Corrosion Resistant |
| 81.44201.0143 | Steering Knuckle (Hande Universal) | F3000, M3000, X5000 | Aftermarket & Original Available, 7.5T Hande Axle Matching, For Light Tractor |
| 81443010146 | Front Wheel Hub Assembly | New M3000, X3000 | Front Axle Wheel Module, With Bearing Position, Integrated Dust Cover, High Load Bearing |
| 81.43704.0074 | Front Axle Stabilizer Bushing | X3000, X5000, X6000 | Rubber Shock Absorbing Accessory, Stabilizer Bar Matching, Wear-resistant Rubber Compound |
| DZ9112340776 | Front Axle Half Shaft | X3000 4x4 Drive Version | Drive Front Axle Core Part, Alloy Steel, High Torsion Resistance, Off-road Special |
| FDC3193200030002201 | Front Axle Main Reducer Assembly | X5000, X6000 6x4 Heavy Tractor | Single-stage Reduction, Speed Ratio 4.111, Mountain Heavy Load Drive Front Axle Module |
| DZ90149340007 | Front Axle Kingpin Repair Kit | All Delong F/M/X Series | Full Set Maintenance Kit, Contains Kingpin, Bushing, Shim, Seal Ring, Universal Repair Part |
| HD90009440176 | Front Drum Brake Shoe Assembly | F3000, New M3000 | Front Axle Brake Module, High Friction Lining, Long Service Life, Original Brake Spare Part |
| DZ14251432113 | Front Axle Suspension Connecting Plate | X3000, X5000 | Front Axle Suspension Auxiliary Bracket, Cast Iron, Anti-fatigue Structure |
