| Quantity: | |
|---|---|

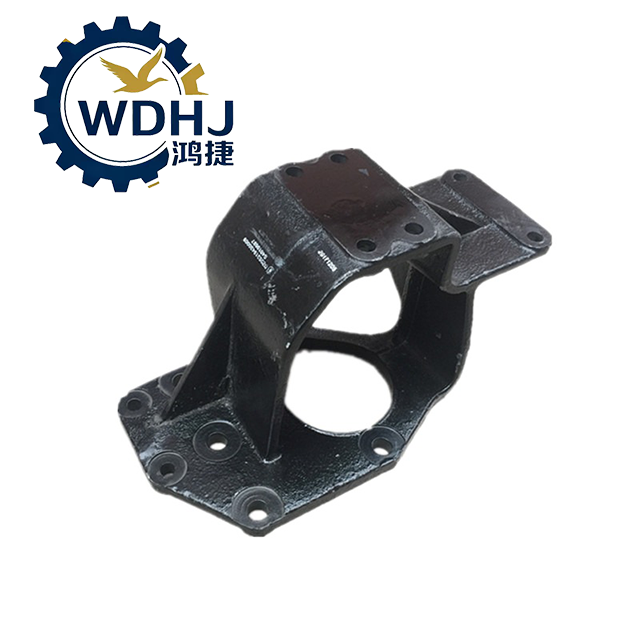

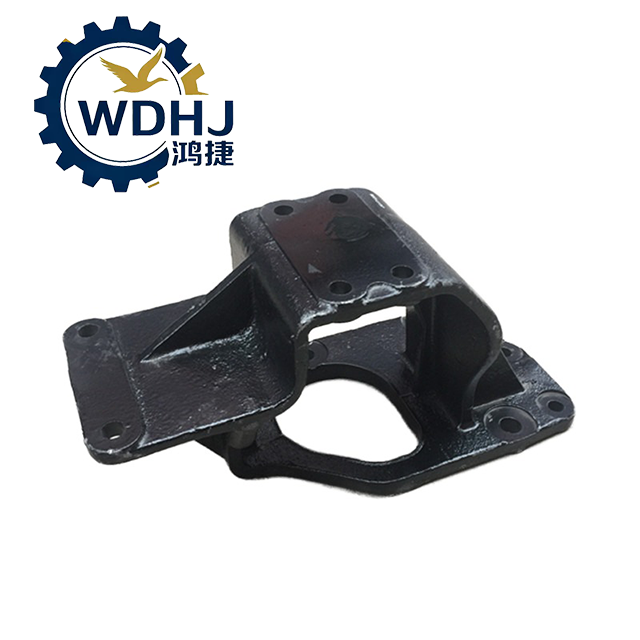

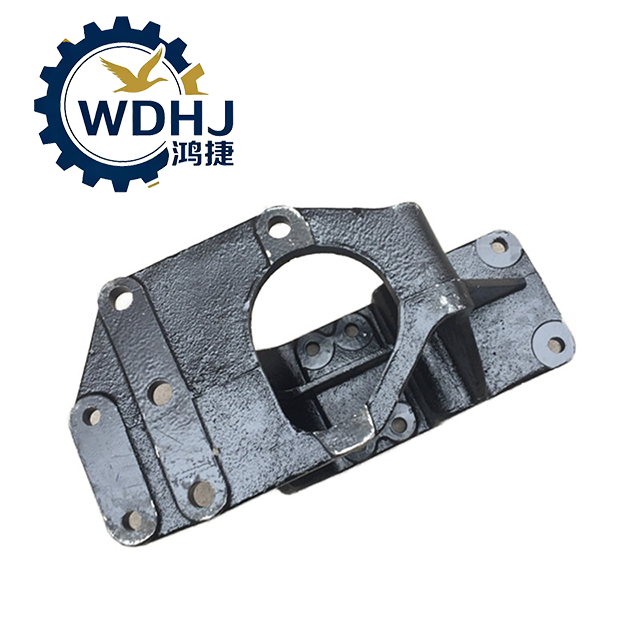

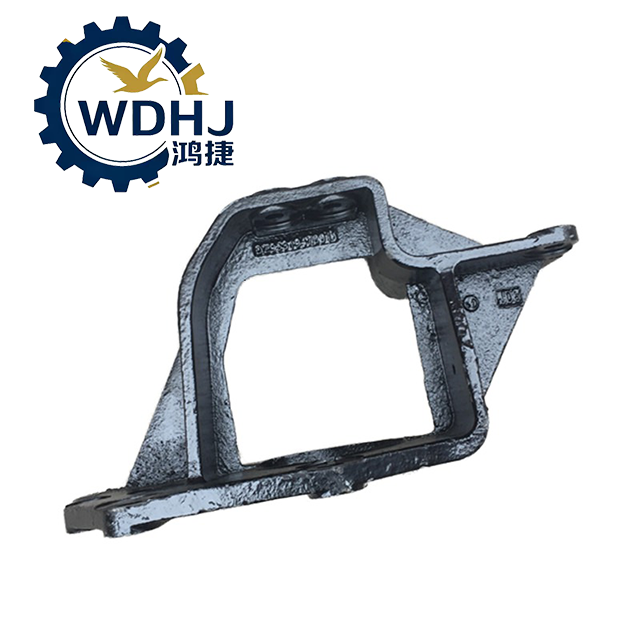

DZ95259470021
Shacman
| Attribute | Description |
|---|---|
| Part Number | DZ95259470021 |
| Product Name | Steering Gear Bracket (also known as Power Steering Mount / Tie Rod Bracket) |
| OEM Status | Original Equipment Manufacturer (OEM), SHACMAN Genuine Part |
| Material | High-Strength Alloy Steel (Cast or Forged) |
| Mounting Location | Left or Right Side of Front Chassis Frame Rail (depending on cab configuration) |
| Application Type | Heavy-Duty Commercial Truck & Special Purpose Vehicles |
| Design Function | Supports and Secures Power Steering Gear Box to Frame |
| Weight | Approx. 8–12 kg (varies by exact design) |
| Surface Treatment | Anti-rust Paint Coating / Primer Finish |
| Key Feature | High rigidity, shock absorption, fatigue resistance |
| Compatible Systems | Hydraulic Power Steering (HPS) Systems |
To ensure safe and long-term performance of the DZ95259470021 Steering Gear Bracket, observe the following guidelines:
✅ Proper Installation Procedure:
Use only high-tensile hex bolts (Grade 8.8 or higher) such as Q150B series.
Apply correct tightening torque (220–280 Nm) using a calibrated torque wrench.
Install with flat washers and self-locking nuts to prevent loosening due to constant vibration.
Regular Crack Inspection:
Cracks near bolt holes or weld seams
Deformation or bending at load-bearing points
During routine maintenance (especially secondary servicing), inspect the bracket for:
Cracks often start at stress concentration zones — early detection prevents catastrophic failure.
️ Corrosion Protection & Surface Care:
Remove loose rust with wire brush.
Apply anti-corrosion primer and repaint with durable undercoating.
The bracket is exposed to water, gravel, and road salts — inspect paint coating regularly.
If rust appears:
Severe corrosion reduces structural integrity and increases risk of breakage.
Alignment Check After Repair:
After replacing or removing the bracket, verify that the steering gear is correctly aligned with the pitman arm and center link.
Misalignment can cause uneven tire wear, steering wander, or binding.
⚠️ Critical Safety Warning:
A cracked, broken, or improperly mounted steering gear bracket can lead to sudden loss of steering control, potentially resulting in serious accidents. Never operate the vehicle if any damage or looseness is detected in the steering mount.
Replacement Recommendation:
Replace both left and right brackets (if applicable) simultaneously if one shows signs of fatigue.
When upgrading or rebuilding the steering system, consider installing reinforced aftermarket brackets for enhanced durability.
| Part Number | Part Name | Applicable Models | Specifications |
|---|---|---|---|
| DZ9100470211 | Connecting Bracket (I) | F2000, F3000 (Tractor) | Steering gear mounting bracket, cast steel, 4-bolt mounting pattern |
| DZ9100470212 | Connecting Bracket (II) | F2000, F3000 (Tractor) | Steering gear mounting bracket, cast steel, auxiliary bracket |
| DZ9100470213 | Steering Gear Bracket | F2000, F3000 (Tractor) | Main steering gear bracket, cast steel, for recirculating ball steering gear |
| DZ9100470214 | Steering Gear Bracket | F2000, F3000 | Cast steel bracket, heavy-duty design, 6 mounting holes |
| DZ9100470215 | Steering Gear Bracket | F3000, X3000 | Cast steel bracket, reinforced design, compatible with ZF-type steering gear |
| DZ9100470220 | Steering Gear Bracket | F3000 | Cast steel bracket, SQDL original factory spec |
| SZ943000707 | Steering Bracket (Right-Handed) | F2000, F3000 (RHD) | Right-hand drive steering gear bracket, stamped steel with welded reinforcement |
| DZ95319470011 | Steering Gear Bracket | F3000, M3000, X3000 | Cast steel bracket, 4-bolt mounting, for 8098 series steering gear |
| DZ95259470095 | Steering Gear Assembly Bracket | F3000 | Integrated bracket with steering gear, Φ100mm piston |
| DZ9118470602 | Middle Pitman Arm Bracket | F3000 | Intermediate rocker arm support bracket, forged steel, 2-bolt mount |
| DZ9118470606 | Steering Power Cylinder Bracket | F3000 | Hydraulic booster cylinder mounting bracket, stamped steel, 5-bolt pattern |
| DZ9118470605 | Pin Spindle | F3000 | Rocker arm pivot pin, hardened steel, 2 pcs per set |
| 4161-3403012 | Steering Gear Bracket | F3000, New M3000 | Aftermarket replacement bracket, cast steel |
| DZ93259470085 | Steering Gear (Right-Handed) Bracket | F2000, F3000 (RHD) | Right-hand drive steering gear assembly bracket |
| DZ93259470002 | Steering Rocker Arm | F2000, F3000 (Tractor) | Pitman arm / drop arm, forged steel, splined bore |
| DZ93259470003 | Steering Rocker Arm | F2000, F3000 (RHD) | Right-hand drive pitman arm, forged steel |
| DZ93319470001 | Pitman Arm | F3000 | Steering drop arm, forged steel, tapered spline |
X3000 Series
| Part Number | Part Name | Applicable Models | Specifications |
|---|---|---|---|
| DZ9100470215 | Steering Gear Bracket | X3000 | Cast steel bracket, reinforced design, OEM factory part |
| DZ95319470011 | Steering Gear Bracket | X3000, F3000, M3000 | Cast steel, 4-bolt mounting pattern, for 8098 series steering gear |
| SZ943000753 | Steering Gear Bracket | X3000, F3000, M3000 | Stamped steel bracket with gusset reinforcement |
| DZ95319430005 | Middle Pitman Arm | X3000 | Intermediate rocker arm, forged steel, bronze bushings |
| DZ95319430001 | Drag Link | X3000 | Steering straight link, solid steel, M26×1.5 threads |
| DZ95319430008 | Pitman Arm | X3000 | Steering drop arm, forged steel |
| DZ95319470003 | Ball Joint | X3000 | Steering ball joint, sintered metal ball seat |
| DZ93319430001 | Hydraulic Cylinder Jacket | X3000 | Booster cylinder dust cover, rubber |
| DZ95319430070 | Hydraulic Cylinder | X3000 | Power steering booster cylinder, Φ60mm bore |
| DZ9118430021 | Drag Link | X3000 | Steering tie rod, adjustable length |
X5000 / X5000S Series
| Part Number | Part Name | Applicable Models | Specifications |
|---|---|---|---|
| DZ97189432013 | Steering Gear Bracket | X5000 | Cast steel bracket, heavy-duty, OEM sizes, steel material |
| DZ96319430628 | Steering Gear Bracket (RH) | X5000 (RHD) | Right-hand steering gear mounting bracket, 6mm thick stamped steel, welded reinforcement, hot-dip galvanized, with vibration isolators |
| DZ95189430804 | Forged Steering Center Rocker Arm Bracket/RHD | X5000 (RHD) | Forged steel bracket, 8mm thick, heat treated to 35 HRC, e-coated, 4×M16 chassis bolts |
| DZ95319430605 | Gasket | X5000 | Steering gear mounting gasket, 1.5mm thick paper-steel composite |
| DZ95319470007 | Intermediate Rocker Arm Assembly | X5000 | Complete rocker arm with shaft and bushes, forged steel, 280mm length, 40-tooth spline |
| DZ97319430621 | Steering Second Rocker Arm Assembly (RHD) | X5000 (RHD) | Second rocker arm, forged steel, 260mm length, taper roller bearings |
| DZ97319430623 | First Middle Pull Rod (RHD) | X5000 (RHD) | Adjustable pull rod, 550-600mm, M30×2 adjuster |
| DZ97319430839 | Second Intermediate Pull Rod (1800/RHD) | X5000 (RHD, long wheelbase) | Long pull rod, 1800mm, clamp-type ends, OD 38mm tube |
| DZ96319430060 | Power Steering Cylinder Assembly (Φ60) | X5000 | Hydraulic assist cylinder, 60mm bore, 200mm stroke, 150 bar working pressure |
| SZ943000703 | Booster Cylinder Bracket | X5000 | Stamped steel bracket, 6mm thick, e-coated, rubber isolators |
| SZ943000738 | Steering Rocker Arm | X5000 | Main drop arm, forged steel, 220mm length, tapered spline |
| DZ9118430018 | Steering Straight Link | X5000 | Tie rod, 620mm length, M26×1.5 threads |
| DZ95319430616 | Steering Straight Link | X5000 | Tie rod, 680mm length, M26×1.5 threads |
| DZ91259430095 | Recirculating Ball Power Steering Gear/RHD/Φ120 | X5000 (RHD) | Steering gear, 120mm piston, 24:1 ratio, 300 Nm output |
X6000 Series
| Part Number | Part Name | Applicable Models | Specifications |
|---|---|---|---|
| DZ9H259430193 | Steering Gear Bracket | X6000 | Main steering gear mounting bracket, cast aluminum alloy, lightweight design |
| DZ9X189430101 | Steering Gear | X6000 | Recirculating ball power steering gear assembly |
| DZ9X189430201 | Pitman Arm | X6000 | Steering drop arm, forged steel, precision splined |
| DZ9H259430307 | Drag Link | X6000 | Steering straight link, high-strength steel |
| DZ9X189460299 | Steering Column Mounting Bracket | X6000 | Steering column support bracket, cast aluminum, 4-point mount |
| DZ9X189460251 | Bracket | X6000 | Steering column auxiliary bracket, stamped steel |
| DZ9X259460601 | Connect Shaft Bracket | X6000 | Intermediate steering shaft support bracket |
| DZ9X189460241 | Spindle Bracket-Left | X6000 | Left side steering column spindle bracket |
| DZ9X189460242 | Spindle Bracket-Right | X6000 | Right side steering column spindle bracket |
| DZ9X189460203 | Steering Column | X6000 | Tilt/telescopic steering column assembly |
| DZ9X189460301 | Steering Flex Shaft Assy. | X6000 | Flexible steering shaft assembly, universal joint type |
| DZ9X259460401 | Connect Shaft | X6000 | Intermediate steering shaft |
| DZ9H259460501 | Bearing | X6000 | Steering shaft support bearing |
| DZ9X259460703 | Electron Column Lock | X6000 | Electronic steering column lock assembly |
| DZ9X189460105 | Steering Wheel | X6000 | Multifunction steering wheel |
M3000 / New M3000 / H3000 Series
| Part Number | Part Name | Applicable Models | Specifications |
|---|---|---|---|
| DZ95259470021 | Power Steering Gear Bracket | New M3000, H3000 | Cast steel bracket, SCB series, for replace/repair |
| DZ95259470029 | Steering Gear Bracket | New M3000 | Cast steel bracket, heavy-duty application |
| DZ95299470021 | Steering Gear Bracket | M3000 | Cast steel bracket, OEM replacement |
| DZ95299570021 | Steering Gear Bracket | M3000 | Cast steel bracket, heavy-duty spec |
| SZ943000753 | Steering Gear Bracket | F3000, M3000 | Stamped steel bracket, 3-bolt mounting pattern |
| DZ9118470022 | Steering Gear Bracket | M3000 | Cast steel bracket, M3000 specific |
| DZ96319470960 | Bracket (WP9H) | New M3000 (WP9H engine) | Steering system bracket for WP9H engine configuration |
| DZ96319470961 | Bracket (WP9H) | New M3000 (WP9H engine) | Auxiliary steering bracket for WP9H engine configuration |
| DZ96189430460 | Steering Gear Bracket | M3000 | Stamped steel bracket, 753 spec |
| DZ96319430606 | Booster Cylinder Bracket (RHD) | M3000 (RHD) | Right-hand drive power cylinder bracket |
| DZ91129312189 | Intermediate Drive Shaft | M3000 (SX1317GL366) | Steering intermediate shaft |
| DZ91194312164 | Drive Shaft | M3000 (SX1317GL366) | Steering drive shaft |
| DZ91149311072 | Drive Shaft | M3000 (SX1317GL366) | Steering drive shaft |
| DZ95319318120 | Supporting Angle Plate | M3000 (SX1317GL366) | Drive shaft support bracket |
| PW10G/34-03055 | Steering Column Lower Bracket | M3000 | Steering column lower support bracket |
L3000 / L5000 Series
| Part Number | Part Name | Applicable Models | Specifications |
|---|---|---|---|
| DZ98149430111 | Steering Gear Bracket | L3000 | Cast steel bracket, medium-duty design |
| DZ98149430100 | Power Steering Gear Assembly | L3000, L5000 | Complete recirculating ball power steering gear with bracket |
| DZ98149316115 | Supporting Angle Plate | L3000 | Steering support angle bracket, stamped steel |
| DZ98149530002 | Radiator Intercooler Assembly Bracket | L3000 | Cooling system bracket (related to steering clearance) |
| DZ98149430*** | Steering Gear Bracket Series | L3000, L5000 | Full range of L-series steering brackets |
| FG9805311*** | Intermediate Drive Shaft (140) | L-series | Φ140mm tube, medium-duty steering shaft |
