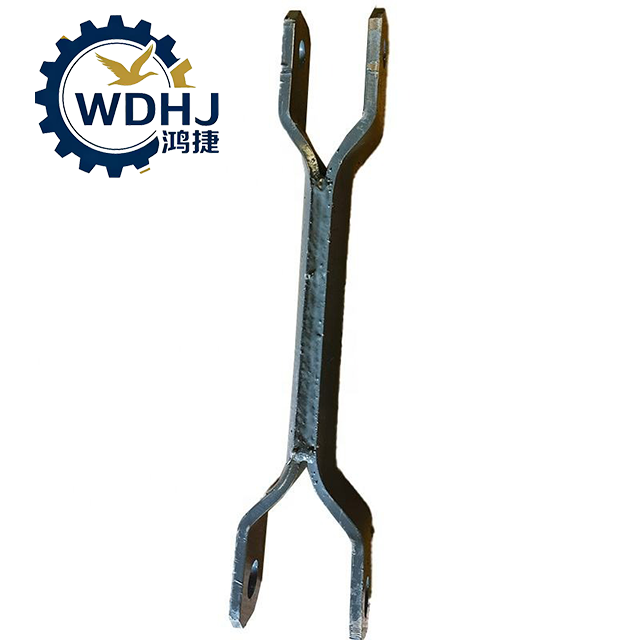

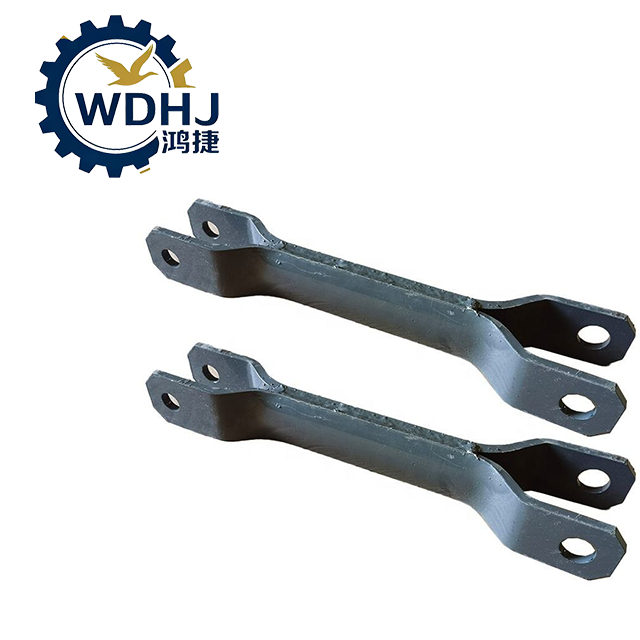

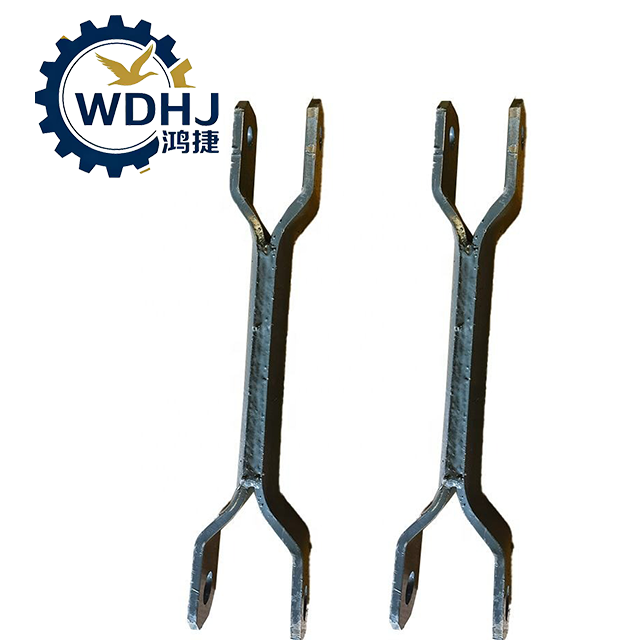

Sinotruk Howo 6x4 Dump Truck Parts Chassis Suspension Parts Balance Clamp Stabilizer Bar WG9160680055 Fixing Clamp for Sinotruk

Name1

Name2

Installation Instructions

⚠️ Note: Proper alignment and torque are critical for performance and safety.

✅ Tools Required:

• Socket wrench set (17–19mm)

• Torque wrench

• Pry bar (for alignment if needed)

• Clean rag and anti-seize lubricant (optional)

️ Step-by-Step Installation:

1. Lift and Secure the Vehicle

• Use jack stands to safely access the front chassis area.

• Ensure suspension is unloaded or slightly compressed for easier assembly.

2. Remove Old Hanger Bracket (if replacing)

• Loosen and remove mounting bolts (M12×1.25), clamping plate (WG9925682111), and worn bushings (WG9100680068).

• Carefully detach the old support plate from the frame.

3. Inspect Surrounding Components

• Check the condition of the stabilizer bar (WG9725680006) for bending or wear.

• Replace damaged rubber bushings (WG9100680068) — never reuse cracked or hardened ones.

4. Install New Bracket (WG9160680055)

• Position the new lifting plate onto the frame at the designated mounting point.

• Insert the stabilizer bar through the rubber bushing and into the bracket housing.

5. Reinstall Clamping Components

• Place the fixing pressure block (WG9925682111) over the bushing.

• Secure with M12×1.25 bolts and ZQ361B12 nuts.

6. Torque Specifications

• Typical range: 80–100 N·m (confirm based on model manual)

• Tighten fasteners to manufacturer-recommended torque:

• Do not overtighten — this can crush rubber bushings and cause premature failure.

7. Final Inspection

• Lower the vehicle.

• Visually check for proper alignment and clearance.

• Test drive at low speed; listen for creaking or knocking noises (signs of loose parts).
