LG9715521121
Sinotruk HOWO
| Parameter | Description |
|---|---|

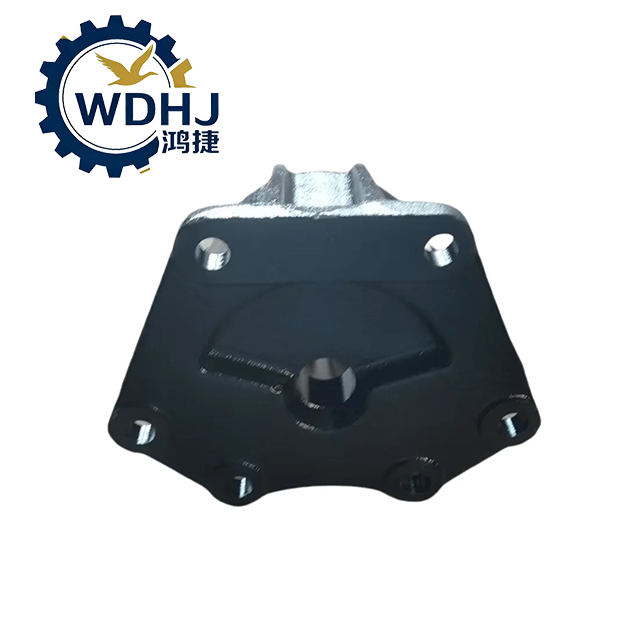

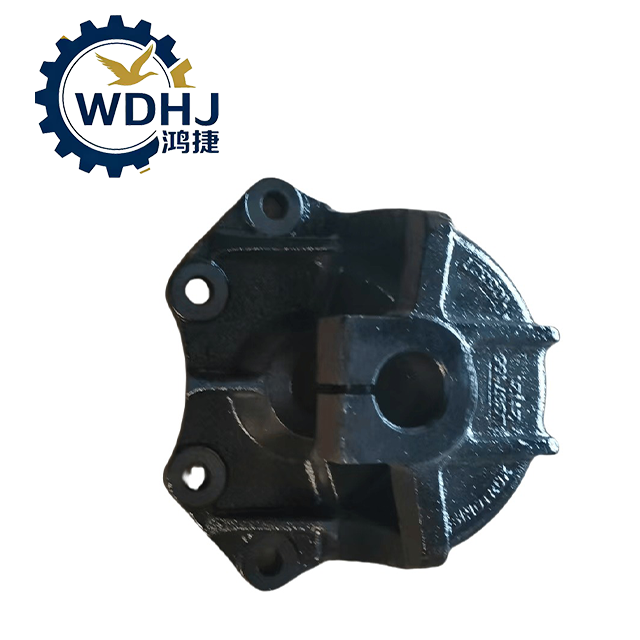

| Part Name | Rear Leaf Spring Front Bracket |

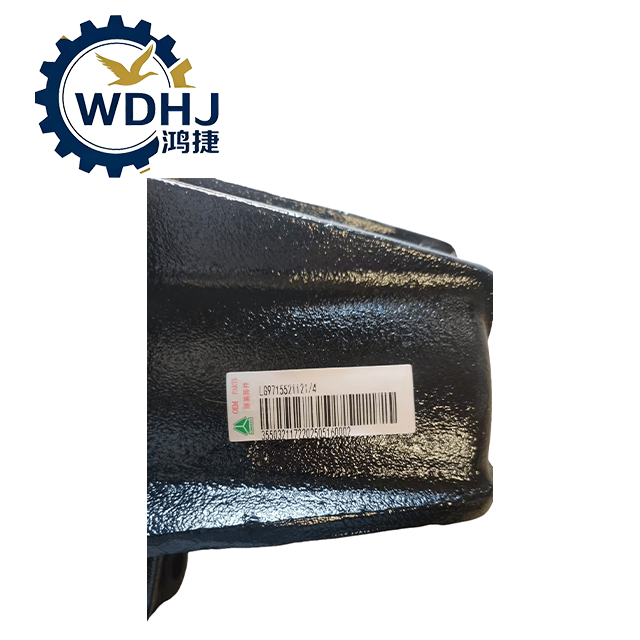

| Part No. | LG9715521121 |
| Material | High-strength cast steel (QT450 or equivalent), offering excellent tensile strength and impact resistance |
| Coating / Finish | Black electrophoretic coating (E-coat) with additional paint; provides superior anti-corrosion and salt spray resistance |
| Color | Typically black (due to e-coating/paint finish) |
| Quality Standard | OEM Original Equipment Manufacturer standard |
| Weight | Approx. 3.5–4.5 kg (varies slightly by production batch) |
| Installation Position | Mounted on the side of frame longitudinal beams, front end of rear leaf spring assembly |
| Hole Configuration | - 4–6 bolt holes for frame attachment - 1 central pin bore for leaf spring shackle pin (bushing installed inside) |
| Design Type | Fixed bracket (non-moving pivot point for rear suspension system) |
Name1
Name2
Preparation:
Lift the vehicle safely using jack stands; ensure rear axle is unloaded.
Remove wheels and disassemble the rear leaf spring front shackle assembly.
Disassembly:
Loosen and remove mounting bolts securing LG9715521121 to the frame rail.
Extract the shackle pin and take out the old bracket.
Inspect surrounding frame area for cracks or deformation.
Assembly:
Clean the mounting surface on the frame; remove rust or debris.
Install new bushings and grease them thoroughly.
Insert the new LG9715521121 bracket and align all holes precisely.
Insert high-tensile bolts (Grade 10.9 recommended); do not fully tighten yet.
Torque Specification:
Final tightening torque: 140–160 N·m (for M14 bolts)
Use calibrated torque wrench; follow crisscross pattern
Recheck torque after 500 km of driving
Lubrication Setup:
Attach grease gun to zerk fitting (if equipped)
Pump lithium-based EP2 grease until fresh grease appears at edges
Wipe off excess
Final Check:
Ensure no interference with tires, brake lines, or suspension components
Lower vehicle and test drive cautiously
