| Quantity: | |
|---|---|

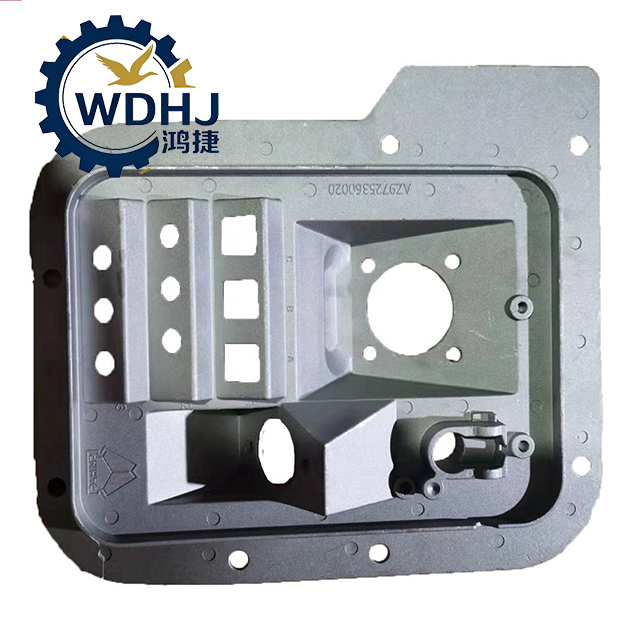

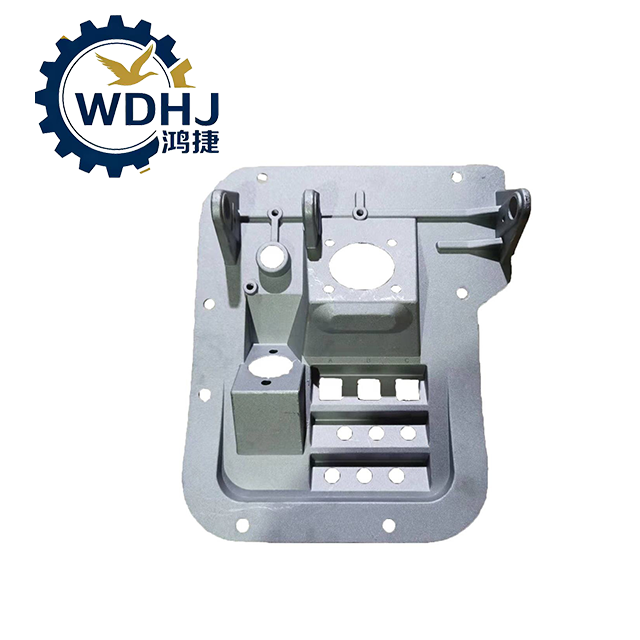

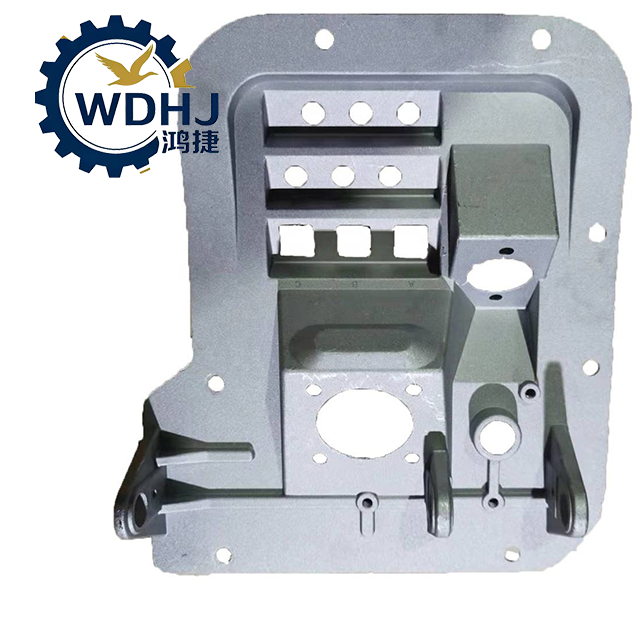

AZ9725360020
Sinotruk HOWO
| Attribute | Specification |
|---|---|
| Official Name | Clutch and Brake Pedal Combination Bracket |
| Common Names | Pedal Support Frame, Combined Pedal Mount, Brake & Clutch Bracket |
| OEM Brand | SINOTRUK (China National Heavy Duty Truck Group) |
| Part Number | AZ9725360020 |
| Material | High-strength cast steel or cold-rolled structural stamped steel |
| Surface Treatment | Electrophoretic coating (e-coat), typically finished in black for rust protection |
| Weight | Approx. 1.75 kg – 2.5 kg (varies slightly by production method) |
| Dimensions (L × W × H) | ~40.0 cm × 35.0 cm × 10.0 cm |
| Design Type | Integrated multi-hole mounting structure for dual pedals |
| Load Capacity | Supports repeated actuation forces from driver input (up to 800 N per stroke) |
| Durability | Engineered to resist metal fatigue over millions of pedal cycles |
| Origin | Jinan, Shandong Province, China |
Name1
Name2
Confirm correct fitment: Use SINOTRUK EPC system to verify compatibility with your VIN/chassis.
Inspect new bracket: Check for cracks, deformation, damaged threads, or coating defects.
Prepare work area: Remove lower dashboard panels if necessary to access mounting zone.
Gather tools: Torque wrench, socket set, thread locker (if required).
Remove Old Bracket (if replacing):
Disconnect clutch and brake linkages/sensors.
Loosen all mounting bolts and extract carefully.
Position New Bracket (AZ9725360020):
Align with pre-drilled holes in cab frame.
Ensure no interference with wiring harnesses or HVAC ducts.
Install Fasteners:
Insert bolts through bracket and frame.
Apply thread-locking compound if specified.
Torque Properly:
Tighten diagonally in stages.
Final torque: Typically 60–80 N·m (confirm exact value per service manual).
Reconnect Pedals & Linkages:
Reattach clutch and brake levers.
Install return springs and clevis pins.
Final Inspection:
Test pedal movement — smooth and without binding.
Verify full return action after release.
