WG1671740012 AZ1651740010
Sinotruk HOWO
| Attribute | Description |
|---|---|

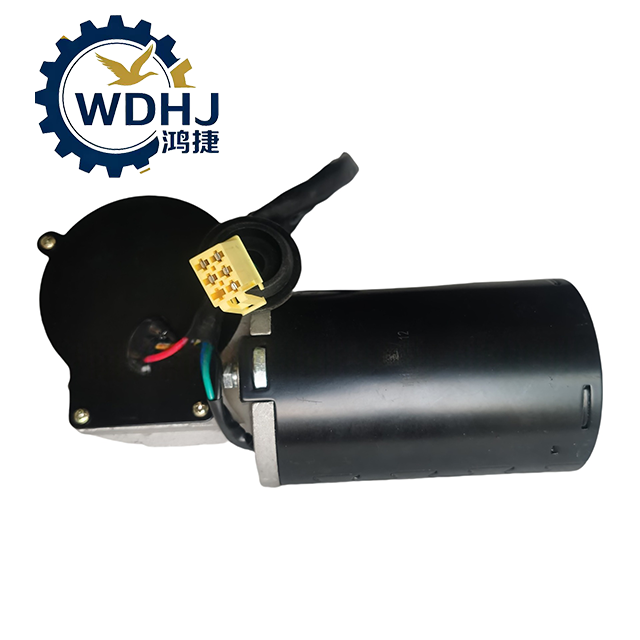

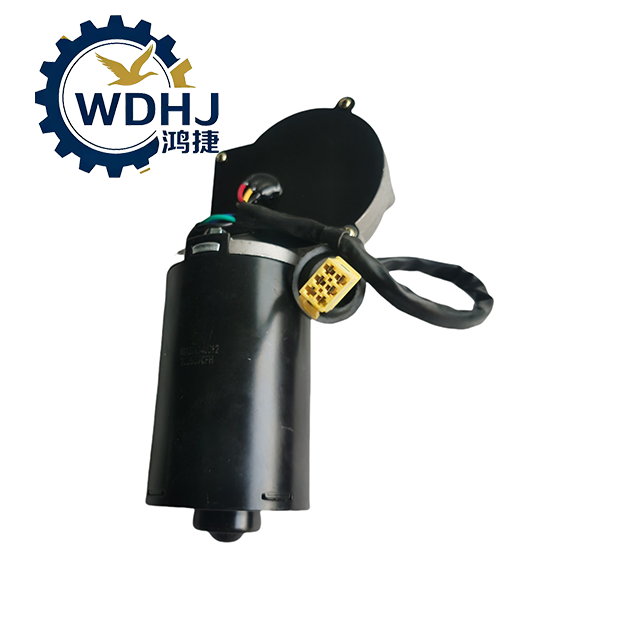

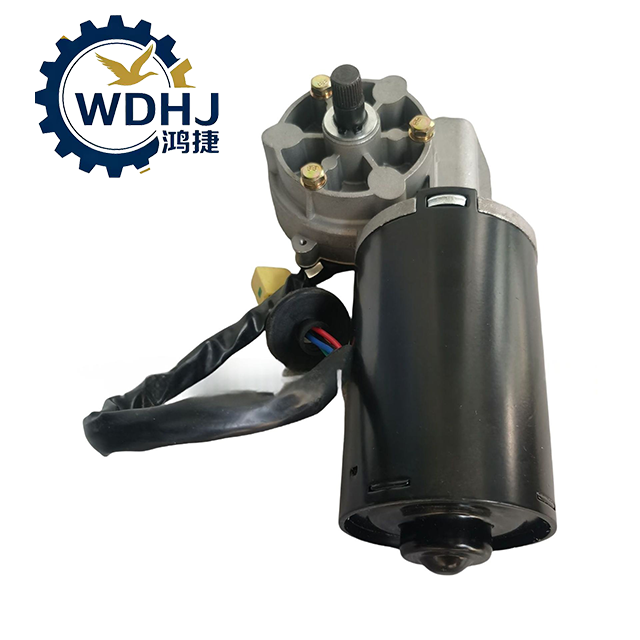

| Part Name | Windshield Wiper Motor / Wiper Drive Motor |
| Common Names | Wiper Motor Assembly, Front Wiper Motor, Heavy-Duty Wiper Unit |
| OE Number (Original Equipment) | WG1671740012 |
| Manufacturer | Sinotruk (China National Heavy Duty Truck Group Co., Ltd.) |
| Function | Drives the windshield wiper system via mechanical linkage to oscillate the wiper arms, clearing rain, snow, ice, dust, and debris from the driver’s field of view |
| Motor Type | Permanent magnet DC motor with integrated worm gear reduction gearbox |
| Design | High-torque, low-speed output using worm and worm wheel mechanism for self-locking and smooth operation |
| Mounting Style | Bolt-on flange mount (typically 3–4 mounting points), installed behind the front cowl panel below the windshield |
| Output Shaft Configuration | Eccentric or crank-type output shaft connected to wiper linkage system |
Name1
Name2
| Parameter | Specification |
|---|---|
| Rated Voltage | 24V DC – Compatible with standard heavy-duty truck electrical systems |
| Nominal Power | Approx. 80–120W (exact value depends on load and design) |
| Current Draw | Typically 5–8A under normal operation; up to 15A during stall/start-up |
| Speed Modes | Dual-speed (Low / High) and intermittent (park) mode supported via control switch and relay module |
| Torque Output | High starting torque to overcome static friction and ice load on cold mornings |
| Gearbox Type | Self-locking worm gear reducer – prevents back-driving and ensures precise park position |
| Park Circuit | Built-in automatic parking function: wipers return to bottom dead center when turned off |
| Housing Material | Durable cast metal (aluminum alloy or coated steel) for heat dissipation and vibration resistance |
| Sealing Level | IP65 or higher – dust-tight and protected against water jets (suitable for harsh environments) |
| Terminal Type | Multi-pin connector (typically 4–6 pins) for power, ground, and speed control signals |
| Weight | Approx. 2.5–3.2 kg |
⚠️ WARNING: Always disconnect battery before working on any electrical component.
Turn off ignition and all accessories.
Disconnect the negative terminal of the 24V battery to prevent short circuits.
Remove windshield cowl cover/grille (located at base of windshield).
Clear leaves, dirt, and debris from the area.
Disconnect wiper arms from linkage (mark positions if reusing).
Unplug multi-pin connector from the motor.
Inspect for corrosion, bent pins, or moisture damage.
Loosen and remove mounting bolts (usually M6 or M8).
Detach linkage rod(s) from motor crank arm (use puller if stuck).
Carefully extract the old motor from its housing.
Attach new motor securely using original brackets.
Reconnect the linkage rod to the output crank — ensure proper alignment and secure locking clip.
Torque mounting bolts to manufacturer specification (~10–15 N·m).
Plug in electrical connector firmly.
Reinstall cowl cover and wiper arms.
Reconnect battery.
Turn on wiper switch and test:
Low speed
High speed
Intermittent mode
Auto-stop/park function
✅ Confirm no binding, noise, or misalignment during operation.
