1108010-C1100
Dongfeng
| Attribute | Specification |
|---|---|

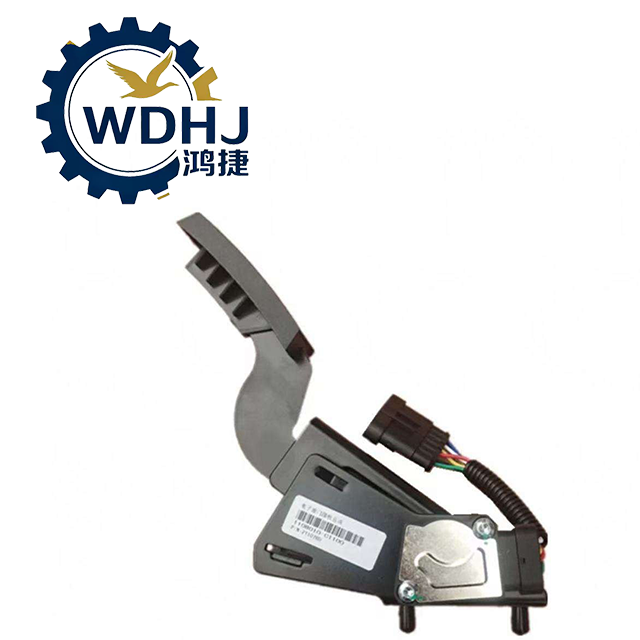

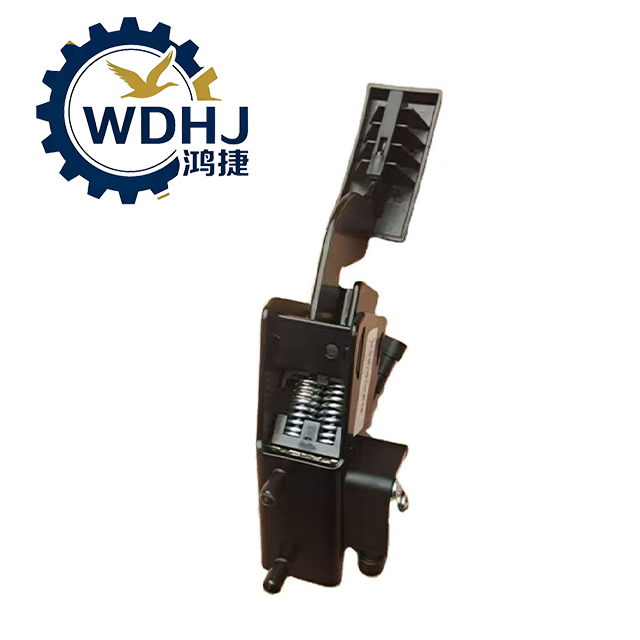

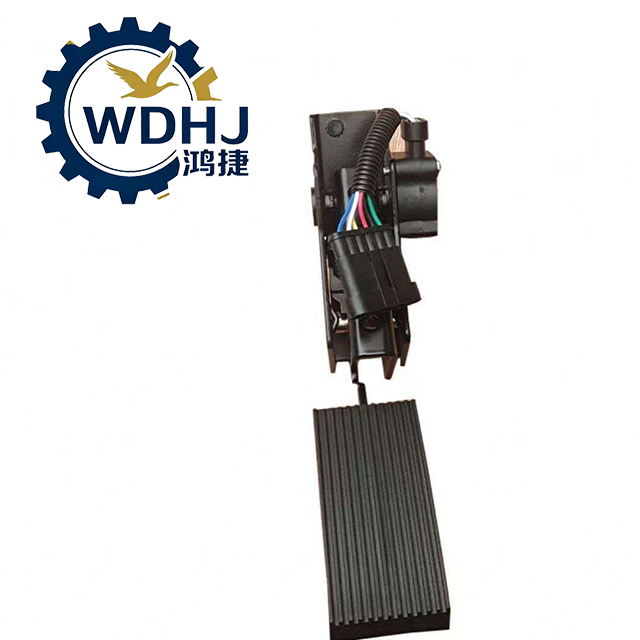

| Product Name | Electronic Accelerator Pedal Assembly / Drive-by-Wire Throttle Pedal |
| Manufacturer | Dongfeng Commercial Vehicles Co., Ltd. (OEM) |
| Primary Part Number | 1108010-C1100 |
| Alternative Names | Electronic Gas Pedal, APP Sensor, ETP Module |
| Signal Type | Dual-output analog voltage (APP1 & APP2) via Hall-effect sensors |
| Control Principle | Drive-by-wire (no physical cable linkage) |
| Housing Material | Reinforced PA66+GF engineering plastic (high strength, heat resistant) |
| Bracket Material | High-strength aluminum alloy or stamped steel |
| Connector Type | 6-pin waterproof electrical plug |
| Sealing Level | IP67-rated sensor housing (dust-tight and water-immersion protected) |
| Application Class | Medium- to Heavy-Duty Commercial Trucks |
| Parameter | Value / Detail |
|---|---|
| Operating Voltage | 5V DC (supplied by ECU as reference voltage) |
| Output Signal Range | |
| - At Idle: | ~0.5V (APP1), ~1.0V (APP2) |
| - At Full Load: | ~4.5V (APP1), ~3.0V (APP2) (ratio-matched for plausibility check) |
| Signal Redundancy | Dual independent sensor circuits for fault detection and safety monitoring |
| Response Time | < 10 ms (ensures real-time engine responsiveness) |
| Pedal Rotation Angle | Typically 20°–30° full travel (varies slightly by model) |
| Spring Mechanism | Integrated precision spring for consistent pedal feel and return-to-idle |
| Weight | Approx. 0.8 – 1.2 kg |
| Installation Torque | Follow OEM spec (typically 10–15 Nm for mounting bolts) |
| Durability Life | Designed for over 1 million actuation cycles |
| Environmental Resistance | Resists vibration, dust, moisture, and temperature cycling |
