199014320144
Sinotruk HOWO
| Attribute | Specification |
|---|---|

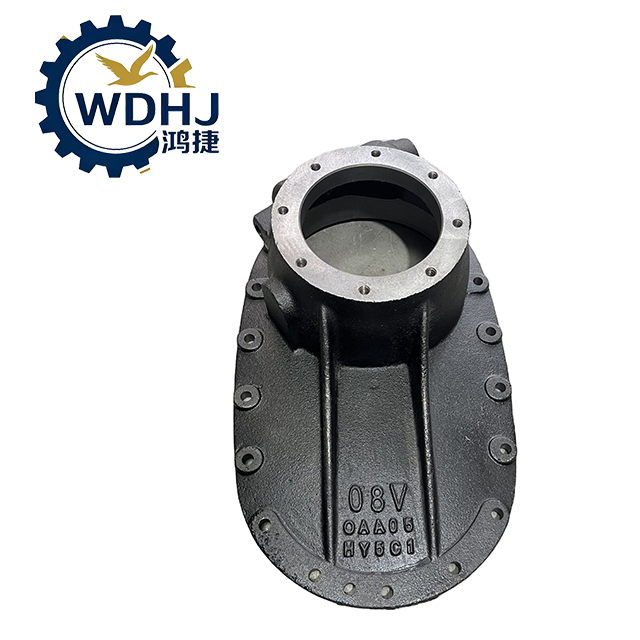

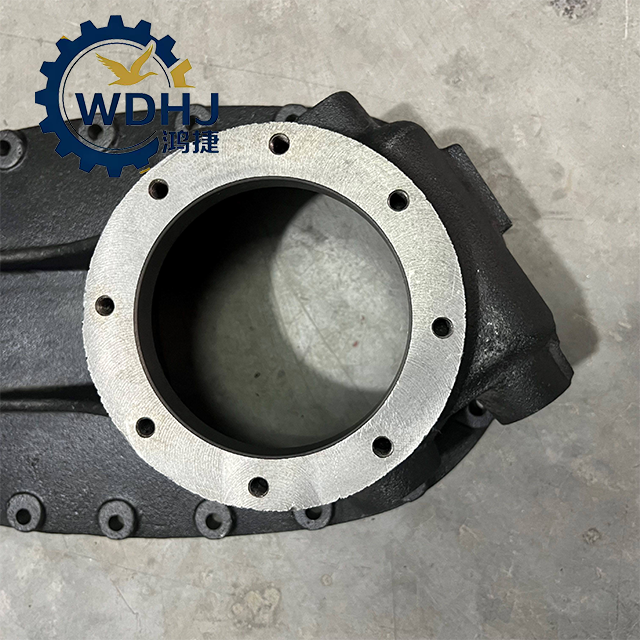

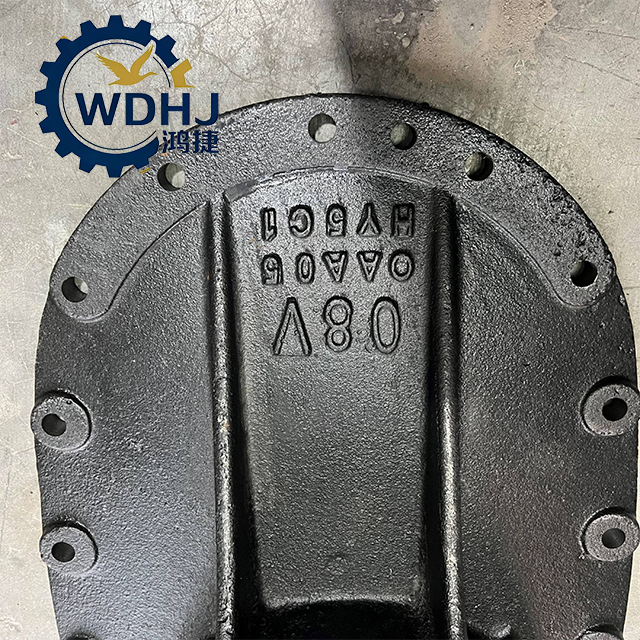

| Official Name | Middle Axle Large Front Cover / Inter-Axle Differential Front Housing |
| Common Names | Bridge Box Cover, Axle Housing Cover, Diff Cover |
| OEM Brand | SINOTRUK (China National Heavy Duty Truck Group) |
| Part Number | 199014320144 |
| Material | High-strength ductile cast iron (QT450-10) or alloy steel (e.g., 40Cr) |
| Weight | Approx. 11.5 kg – 13.0 kg (bare part); up to 24 kg with packaging/reinforcements |
| Dimensions (Approx.) | ~250–280 mm diameter × 100–150 mm thickness |
| Surface Finish | Precision-machined sealing surface; flatness tolerance < 0.05 mm |
| Structural Design | Reinforced with multiple ribs to distribute alternating mechanical loads |
| Fatigue Resistance | Tested beyond 2 million cycles under simulated load conditions |
| Angular Stability | Maintains alignment within ≤0.5° deviation during operation |
| Function | Seals differential chamber, supports bearing load, assists heat dissipation |
| Origin | Jinan, Shandong Province, China |
Name1
Name2
Confirm correct model: Use SINOTRUK EPC system to verify compatibility with your VIN/chassis.
Inspect new cover: Check for cracks, damaged threads, warped sealing surface, or broken ribs.
Clean mating surfaces: Remove old gasket material, oil residue, rust, and debris from both the axle housing and cover flange.
Prepare seal: Use new paper gasket or apply liquid sealant (e.g., ThreeBond 1215) per manufacturer instructions.
Position the Cover:
Align carefully with axle housing opening.
Ensure no binding or misalignment.
Apply Sealant or Install Gasket:
Place new paper gasket or apply thin bead of liquid sealant.
Avoid excess that could enter the oil chamber.
Insert Fasteners:
Start all M12 bolts finger-tight.
Use crisscross diagonal sequence.
Torque Properly:
Final torque: 85–110 N·m (confirm exact value per service manual).
Apply gradually in stages to prevent warping.
Check Vent Plug:
Ensure breather valve is clean and unobstructed.
Final Inspection:
Visually inspect joint line for even contact.
Refill with proper gear oil after installation.
