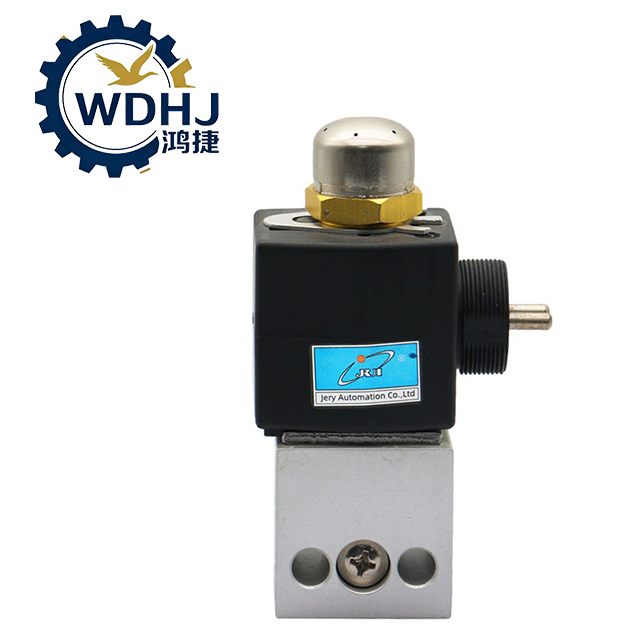

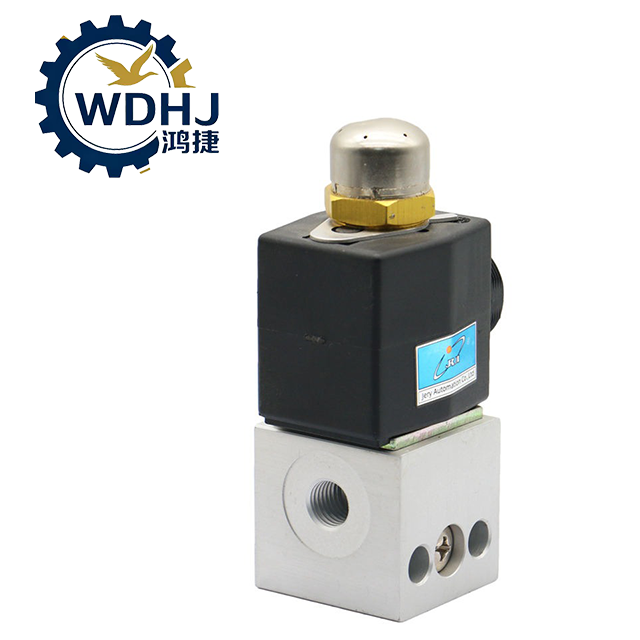

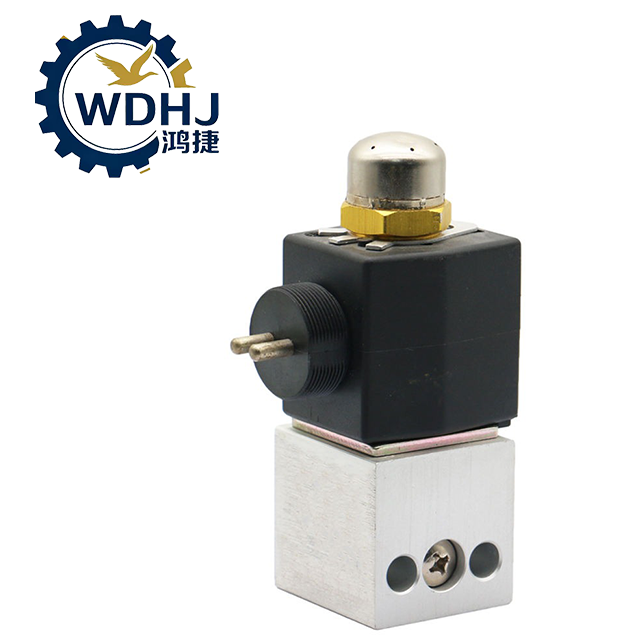

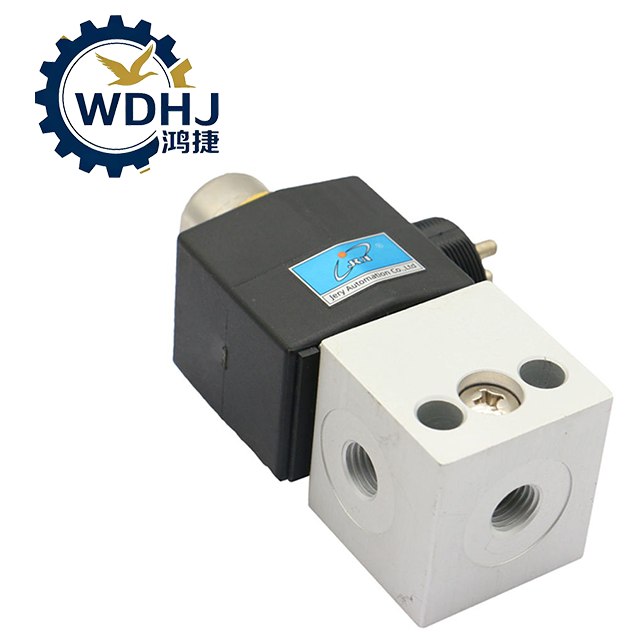

SINOTRUK HOWO Truck Spare Parts Electromagnetic Solenoid Valve Part Number WG9719710004

The WG9719710004 Solenoid Valve is a critical electro-pneumatic control device used across Sinotruk HOWO and compatible heavy-duty trucks. Designed for 24V DC systems and capable of handling up to 0.8 MPa air pressure, it enables reliable automation of functions like cab lifting, PTO engagement, and differential locking.

With IP67 protection, long cycle life (>1 million operations), and rapid response time, it performs reliably in extreme environments ranging from arctic cold to desert heat.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • WG9719710004

  • Sinotruk HOWO

Attribute Description
Part Name Solenoid Valve / Electromagnetic Air Control Valve / Magnetic Valve
Common Names 2/3-Way Solenoid Valve, Pneumatic Control Valve, Air Pilot Valve
OE Number (Original Equipment) WG9719710004
Alternate Designations WG9719710004/2, 179100710008/2, VG1500090060
Manufacturer Supplied by various OEMs for Sinotruk (CNHTC), primarily based in Shandong Province, China
Function Electrically controlled valve that regulates compressed air flow to actuate pneumatic devices such as cabin lift cylinders, PTO clutches, or differential locks
Valve Type 2-position, 3-way (2/3) normally closed (NC) or changeover design
Actuation Method Direct-acting solenoid with spring return
Mounting Style Bracket-mounted or panel-mounted with M4/M5 screws or snap clips
电磁阀-3

Name1

电磁阀-2

Name2

Key Technical Parameters

Parameter Specification
Operating Voltage 24V DC – Standard for heavy-duty truck electrical systems
Voltage Range 20–28V DC (compatible with battery fluctuations during engine start)
Power Consumption Approx. 10–15W
Coil Insulation Class Class H (resistant to high temperatures up to 180°C)
Valve Function 2 Position / 3 Way (2/3):
• Port 1: Air In (from reservoir)
• Port 2: Outlet to actuator
• Port 3: Exhaust
Flow Path Normally Closed (NC) – no airflow when de-energized; opens when powered
Response Time < 50 ms – ensures rapid system response
Working Medium Clean, dry compressed air (oil-free preferred)
Operating Pressure Range 0.4 MPa to 0.8 MPa (58–116 psi)
Connection Type P99 quick-connect air fitting (standard pneumatic interface)
Electrical Connector 2-Pin plug (ISO 4165 or equivalent), male/female depending on variant
Sealing Material EPDM or Viton (FKM) seals – resistant to heat, oil, and aging
Body Material Aluminum alloy or cast iron housing for durability and corrosion resistance
Protection Rating IP65 or IP67 – dust-tight and protected against water jets or temporary immersion
Weight 0.1 kg – 0.25 kg (ultra-lightweight design)
Service Life Rated for over 1,000,000 cycles under normal operating conditions

Installation Instructions (Step-by-Step Guide)

⚠️ WARNING: Ensure air system is depressurized and power is disconnected before servicing.

✅ Step 1: Prepare the System

  • Turn off ignition and disconnect battery negative terminal.

  • Release pressure from air system by manually operating related functions (e.g., lower cab).

  • Close air supply valve if equipped.

✅ Step 2: Access the Valve

  • Locate the solenoid valve near the target actuator (e.g., behind dash for cab lift, near transmission for PTO).

  • Remove protective cover or bracket if necessary.

✅ Step 3: Disconnect Components

  • Unplug electrical connector (2-pin).

  • Disconnect air lines using proper tool for P99 fittings — do not pull hoses directly.

  • Label ports if replacing multiple valves.

✅ Step 4: Remove Old Valve

  • Unscrew mounting bolts or release clips.

  • Carefully extract the unit without damaging surrounding wiring.

✅ Step 5: Install New WG9719710004 Valve

  • Mount new valve securely using original hardware.

  • Reconnect air lines to correct ports:

    • IN (1) → From air tank (via regulator)

    • OUT (2) → To cylinder/actuator

    • EX (3) → Exhaust to atmosphere (ensure clear path)

  • Plug in electrical connector firmly.

✅ Step 6: Test Operation

  • Reconnect battery.

  • Apply 24V signal (manually or via switch).

  • Listen for audible "click" — indicates coil activation.

  • Confirm actuator movement (e.g., cab rises/lifts, PTO engages).
