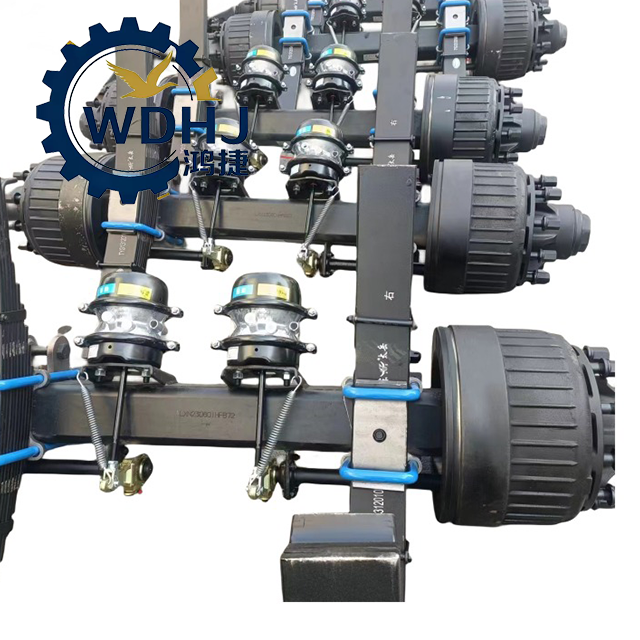

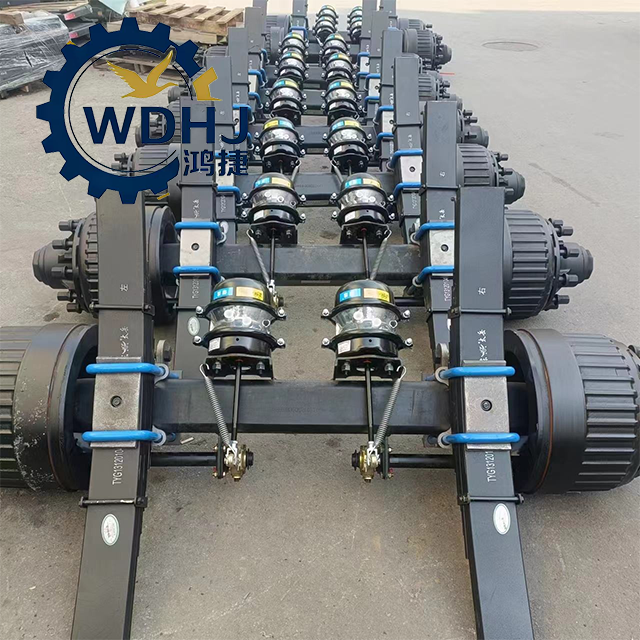

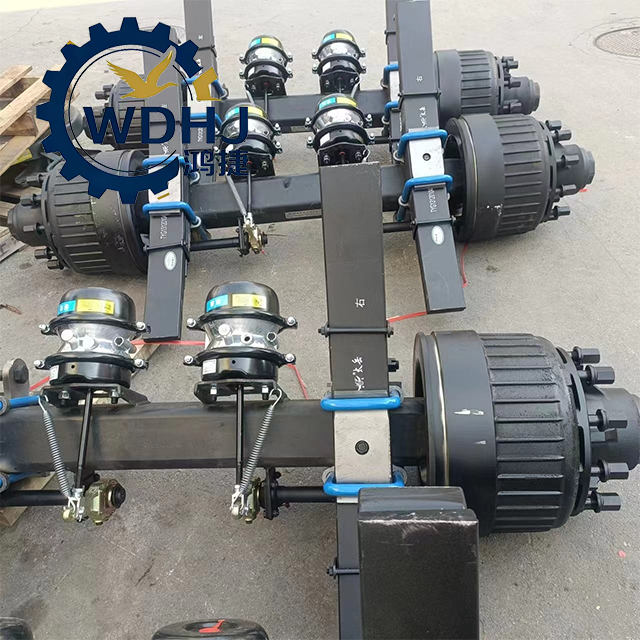

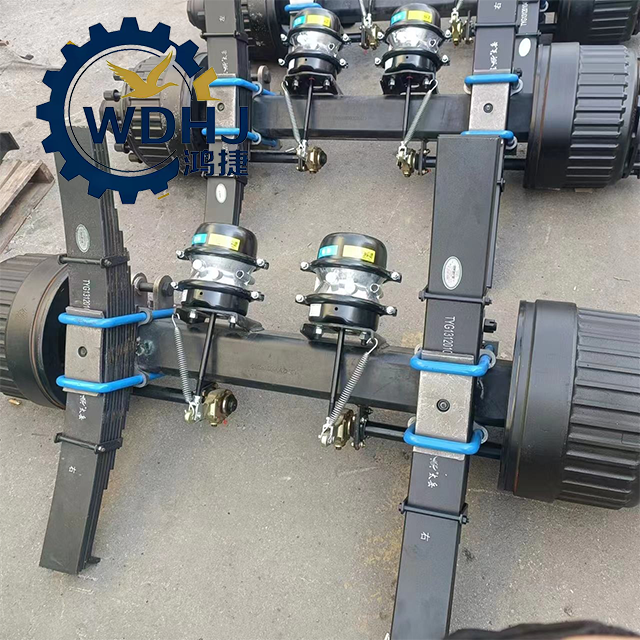

FAW
| Attribute | Description |
|---|---|
| Product Type | Full Rear Drive Axle Assembly (Tandem or Single) |
| Axle Model Series | HC16, HW19710, HW16 (Sinotruk standard) |
| Drive Configuration | Double Reduction (Main + Wheel-end), Single Reduction options available |
| Position | Rear Tandem Axle (typically installed as middle/follow axle in 6x4 layout) |
| Function | Transmits torque from transmission → differential → half shafts → wheels; supports vehicle load |
| Technology Base | Derived from Steyr (STR) axle design; upgraded for higher torque capacity |
| Material (Housing) | Cast steel or ductile iron (GGG60 equivalent); forged alloy steel gears |
| Sealing & Protection | Dual-lip oil seals, labyrinth dust protection at wheel ends |
| Parameter | Specification |
|---|---|
| Axle Load Rating | Up to 16,000 kg – 18,000 kg per axle (depending on model) |
| Max Input Torque | ≥ 30,000 N·m (with planetary reduction) |
| Gear Type | Hypoid Spiral Bevel Gears (Pinion & Ring Gear) |
| Final Drive Ratio Options | I = 3.7, 4.11, 4.42, 4.8, 5.14, 5.73, 6.72 (customizable) |
| Wheel-End Reduction Ratio | I = 2.68, 3.21, 3.93, 4.38 (common) |
| Overall Reduction (Total) | Final × Wheel-end = up to ~25:1 gear multiplication |
| Brake Type | Drum Brake (Ф420×200 mm) or Disc Brake (optional) |
| Half Shaft Type | Full-floating, splined connection |
| Lubricant Capacity | Main Housing: ~18–22 L; Each Wheel End: ~1.5–2 L |
| Recommended Oil | GL-5 85W-90 / Synthetic Gear Oil |
| Weight (Approx.) | 550 – 750 kg (complete unit, varies by ratio and brake type) |
| Mounting Interface | Spring seat or air suspension bracket compatible |
| ABS Compatibility | Optional speed sensor gear (tone ring) for ABS systems |
