DZ95259540008
Sinotruk HOWO
| Attribute | Specification |
|---|---|

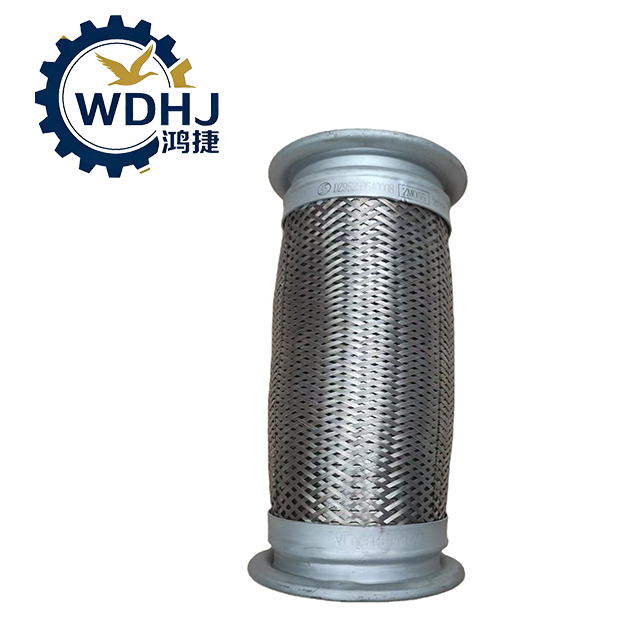

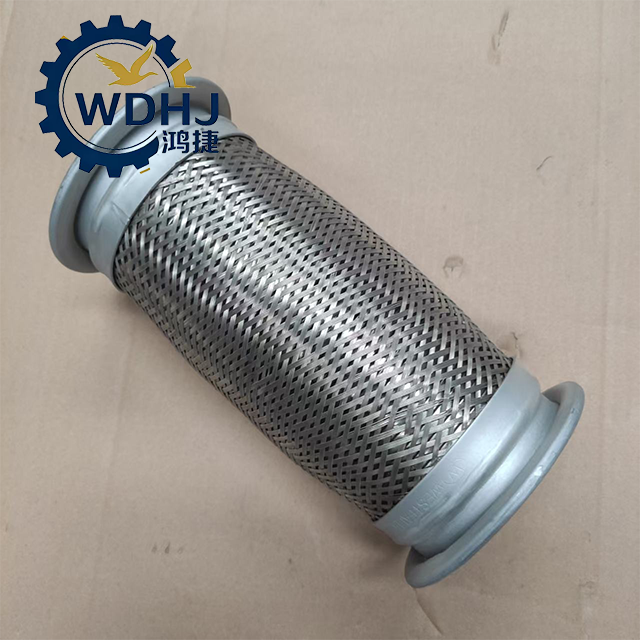

| Official Name | Exhaust Flexible Pipe Assembly / Corrugated Metal Hose |
| Common Names | Exhaust Bellows, Flex Pipe, Soft Connector, Exhaust Wave Pipe |
| OEM Brand | SHACMAN (Shaanxi Automobile Group) |
| Part Number | DZ95259540008 |

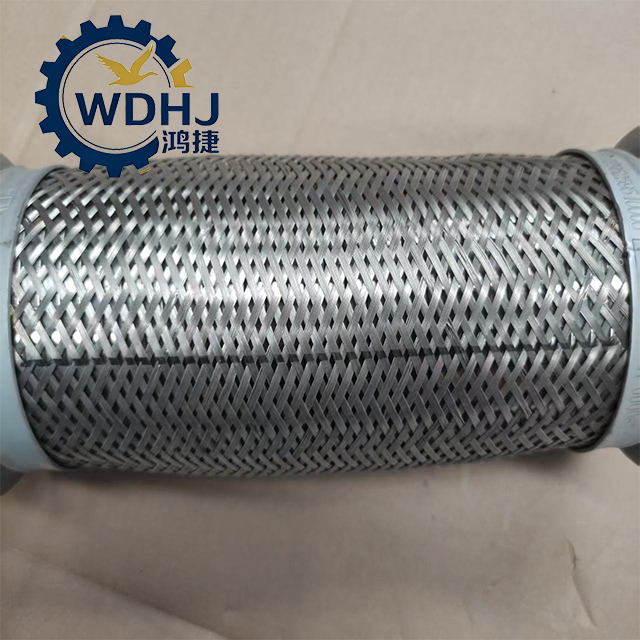

| Core Material | Inner corrugated tube: High-temperature stainless steel SUS304/SUS321 Outer layer: Reinforced stainless steel wire braid mesh |
| Flange Material | Carbon steel or heat-resistant stainless steel with anti-rust coating |
| Structure Design | Multi-layer: inner liner + convoluted core + outer braid; some versions include internal flow guide sleeve |
| Nominal Diameter | Φ110 mm – Φ120 mm (standard for Weichai WP10/WP13 platform) |
| Length & Bend Profile | Pre-curved design matching SHACMAN chassis layout (exact varies by batch) |
| Weight | Approx. 3.8 kg – 4.5 kg |
| Operating Temperature Range | -40°C to +800°C (short-term peak); continuous up to 700°C |
| Pressure Rating | Withstands normal exhaust backpressure (up to 0.3 MPa) without deformation |
| Corrosion Resistance | Resistant to acidic condensate (H₂SO₄), moisture, soot, and thermal cycling |
| Design Life | Up to 20,000–30,000 km under severe-duty conditions (mining, mountain routes) |
| Quality Standard | Complies with ISO 9001, TS16949, and China VI/Euro VI emission requirements |
| Origin | Xi’an, Shaanxi Province, China |
Name1
Name2
Confirm correct fitment: Use SHACMAN EPC system to verify compatibility with your VIN/chassis.
Inspect new unit: Check for damaged braiding, dents in the bellows, or loose flanges.
Identify flow direction: Look for arrow marking (→) on the surface — must align with exhaust gas flow (engine → tailpipe).
Prepare mating surfaces: Clean both ends thoroughly; remove old gasket residue, rust, or carbon buildup.
Position the Flex Pipe:
Hold in place between upstream and downstream exhaust components.
Install in natural, unstressed state — no stretching, compressing, or twisting allowed.
Align Flanges:
Match bolt holes precisely.
Do not force alignment — adjust brackets or reposition piping instead.
Install New Seals:
Replace both left and right exhaust gaskets (DZ9112540411).
Never reuse old seals — leads to leaks and sensor faults.
Secure with Clamps:
Use new V-band clamps (DZ9112540006) or specified fasteners.
Torque evenly to 25–30 N·m (refer to service manual).
Final Inspection:
Visually check for proper alignment and clearance.
Start engine and listen for hissing, whistling, or popping sounds indicating leaks.
