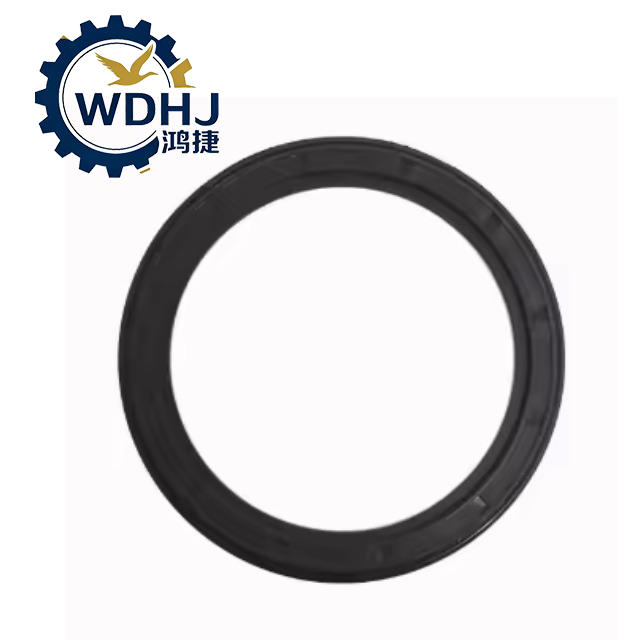

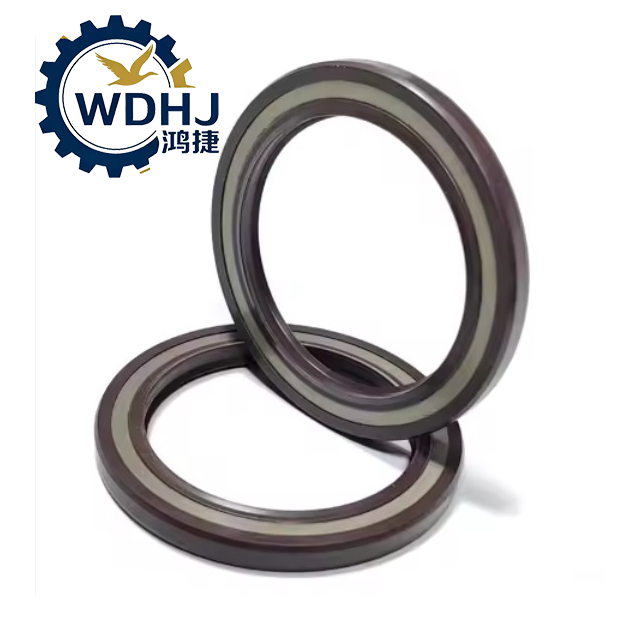

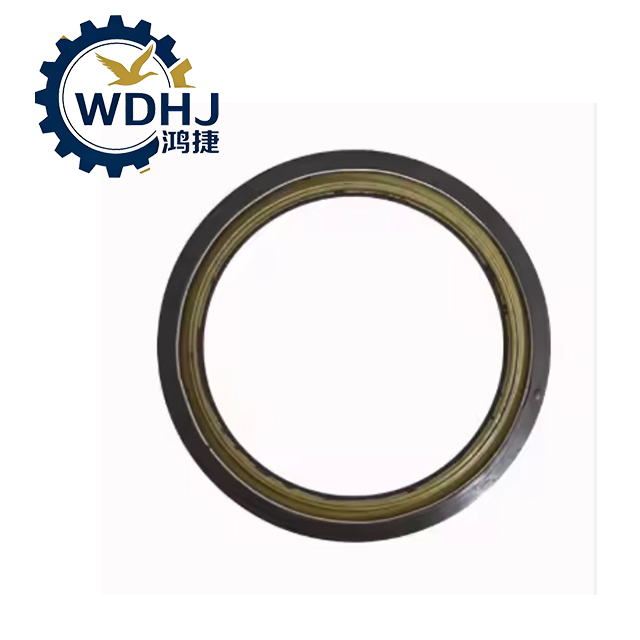

Sinotruk HOWO Heavy Truck Spare Parts VG1047010050 Oil Seal

Name1

Name2

Installation Instructions

⚠️ Warning: Improper installation is the leading cause of premature failure.

✅ Tools Required:

• Torque wrench

• Seal installer tool (specialty driver kit for rear main seals)

• Micrometer or caliper (for shaft inspection)

• Clean lint-free cloths

• Light coating of engine oil or recommended assembly lube

️ Step-by-Step Installation:

1. Prepare the Engine

• Drain engine oil.

• Remove transmission or clutch assembly to access the rear main seal location.

2. Remove Old Seal

• Carefully extract the old seal using a puller or pry bar — avoid damaging the aluminum engine block bore.

3. Inspect Components

• Check the crankshaft journal surface for scoring, burrs, or wear.

• If damaged, polish lightly or replace crankshaft as needed.

• Clean the seal housing bore thoroughly.

4. Lubricate New Seal (VG1047010050)

• The sealing lip

• The outer metal case

• Apply a thin layer of clean engine oil or silicone-free assembly grease to:

5. Install Using Proper Tool

• Use a dedicated seal driver tool that matches the outer diameter (140 mm).

• Press the seal evenly into place until fully seated — do not hammer directly.

• Ensure the seal is perfectly perpendicular to prevent misalignment.

6. Reassemble Components

• Reinstall flywheel (torque bolts correctly), then transmission/clutch.

• Refill with correct grade and amount of engine oil.

7. Final Test

• Start engine and run at idle.

• Inspect for leaks after 5–10 minutes of operation.

• Recheck after first 50 km drive.
